CONDUCTIX-WAMPFLER

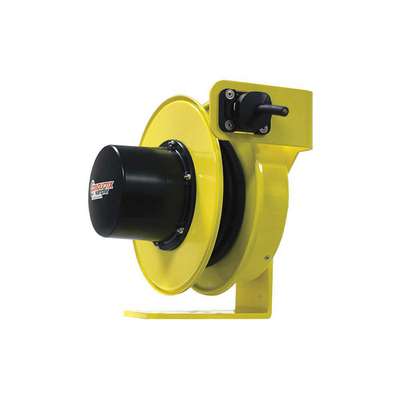

Conductix-Wampfler 50 ft. Extension Cord Reel; 600 VAC; Yellow Reel Color

Hover over image to magnify
Cord Reel,50ft,14 Awg,Bare,
Cord Reel,50ft,14 Awg,Bare,

#941418-1 | Pkg Qty: 1

$1,089.37 pkg | $1,089.37 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CONDUCTIX-WAMPFLER
Overall Height
15 in.
Cord Included
Yes
Package Quantity
1
Cord Length
50 ft.
Reel Color
Yellow
Holds
50 ft. of 14/4
Shipping Weight
60.3 lb.
Item
Extension Cord Reel
Voltage
600 VAC
Mfr. Part Number
XA-142140405011
Watts
7200 W
General
Cord Color
Black
Reel Color
Yellow
Cord Included
Yes
Reel Material
Steel
Cord Length
50 ft.
Reel Mounting
Ceiling, Floor, Wall
Enclosure Rating
NEMA 4
Retractable Cord Ending
Flying Lead
Feeder Cord Ending
Flying Lead
Retractable Cord Ending Configuration
Flying Lead
Feeder Cord Ending Configuration
Flying Lead
Retractable Cord Length
50 ft
Feeder Cord Length
2 ft
Slip Ring Rating
35A @ 600V
Location
Outdoor
Standards
CSA, NEMA 4, UL
Max. Amps
12 A
Temp. Rating
-22 Degrees to 194 Degrees F
Number of Conductors
4
Tension Method
Ratchet Lock
Overall Depth
13 9/16 in
Trade Designation
SOOW
Overall Height
15 in
Voltage
600V AC
Overall Width
13 1/2 in
Winding Method
Spring Retraction
Reel Capacity
50 ft of 14/4
Wire Size
14 AWG

Product Description

Self-retracting cord reels have a spring mechanism that automatically winds the cord back on the reel, making them easier to use than hand-winding cord reels. A stop, or ratchet, holds the cord at the desired length after it's pulled out for use. A quick tug on the cord disengages the stop, causing the spring to fully retract the cord. These reels provide access and storage of extension cords while protecting the cord from wear, tangling, and kinking.

Standard cord reels are spools that hold extension cords to provide access and storage while protecting them from tangling, kinking, and other damage. The cord can be extended to exactly the length needed to power equipment located at a distance from a power source. Self-retracting and motor-driven cord reels automatically wind extended cord back on the reel, while hand-winding cord reels have a handle or knob for winding the cord manually. These cords can be mounted out of the way in a central location, such as on a wall or ceiling, to keep a workspace organized and help reduce tripping hazards. They are commonly used in retail, commercial, and manufacturing applications, including pressure washing, landscaping and ground maintenance, and service garages.
