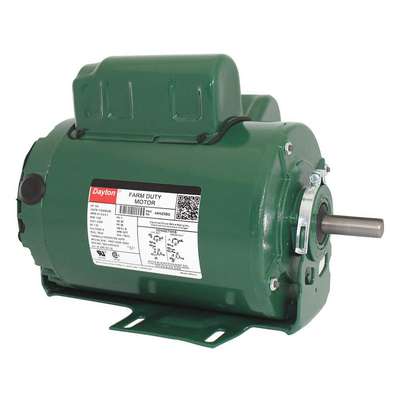

Dayton Agricultural Fan Motor: 3/4, 1,725, 115/208-230V AC, 56, Auto, 1.3 Motor Service Factor

Name: Dayton Agricultural Fan Motor: 3/4, 1,725, 115/208-230V AC, 56, Auto, 1.3 Motor Service Factor
Brand: DAYTON
SKU: 9413699
Price: 411.51 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#941369-9Pkg Qty: 1

$411.51 pkg | $411.51 ea

In Stock

Shipping to 43085

Expected to arrive Fri. Mar 21.

Technical Specifications

Key Specifications

Bearings

Ball

Motor Type

Capacitor-Start/Capacitor-Run

Brand

DAYTON

Mounting

Cradle

Duty

Continuous Air Over

Overall Length

11 13/16 in.

Frame

Package Quantity

Full Load Amps

6.1/3.4-3.1

Phase

Single

Rotation

CW/CCW

Item

Agricultural Fan Motor

Shipping Weight

40.5 lb.

Mfr. Part Number

4WNZ5

Voltage

115/208-230 VAC

General

Capacitor Required

Included

Motor Mounting Type

Cradle Base

Duty Cycle

Continuous

Motor Service Factor

1.3

Finish

Enamel

Motor Shaft Design

Keyed

3/4

Motor Sub Application

Agricultural Fan

Includes

Gasketed Capacitor Cover, Conduit Box, Shaft Key and Shaft Slinger

Motor Thermal Protection

Auto

Ins. Class

Nameplate RPM

1,725

Length Less Shaft

9 15/16 in

No. of Speeds

Max. Ambient Temp.

40 Degrees C

Nominal Efficiency

81.2 %

Motor Application

Farm Duty

RPM Range

1,701-1,800

Motor Design

Capacitor-Start/Run

Shaft Dia.

5/8 in

Motor Enclosure Design

Totally Enclosed Air-Over

Shaft Length

1 7/8 in

Motor Frame Material

Rolled Steel

Standards

CSA Certified (258501), UL Recognized (E37403)

Motor Mounting Position

Horizontal

Voltage Compatibility

115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC

Product Description

Poultry/livestock belt drive farm-duty AC motors allow the user to change the motor and driver sheaves to adjust the air flow in poultry and livestock barns. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
