EBM-PAPST

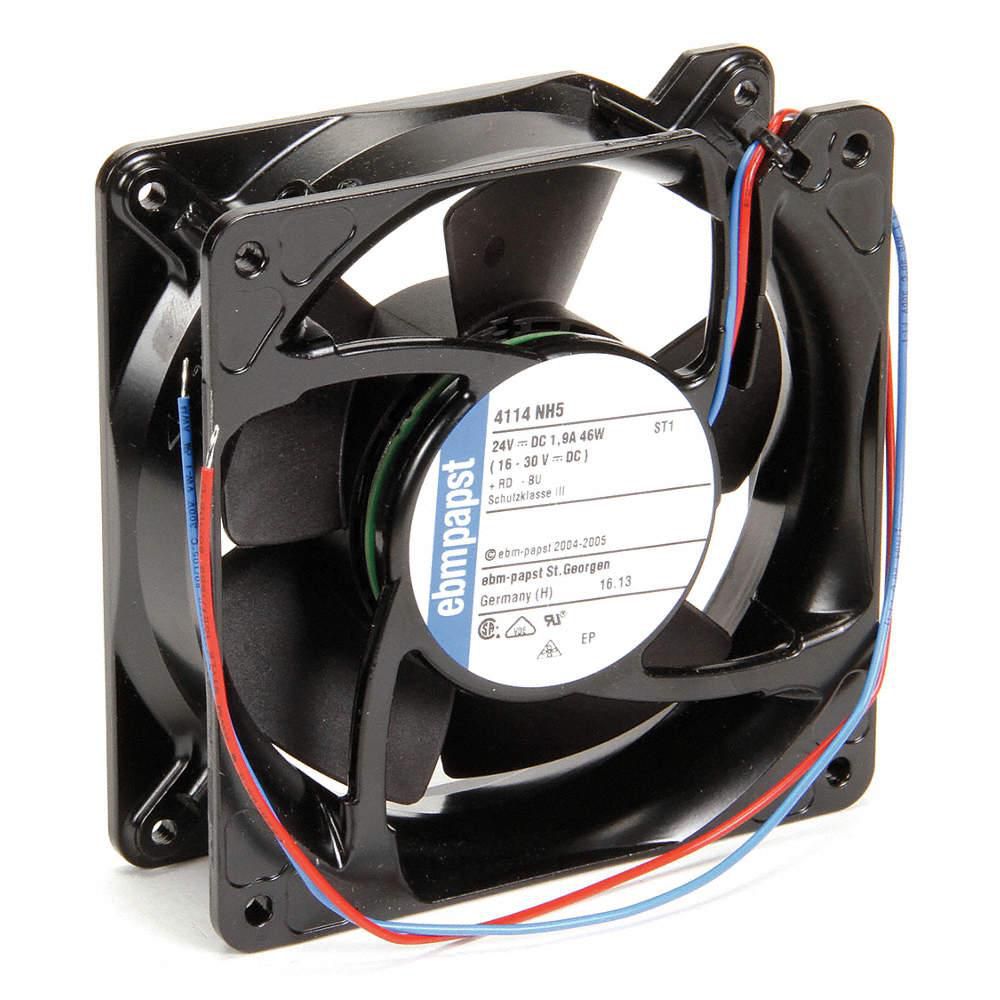

Ebm-Papst Standard Square Axial Fan: 4 11/16 in Ht, 1 1/2 in Dp, 230, IP20, Aluminum, 24V DC

Hover over image to magnify
Axial Fan,Square,119 MM H,230
Axial Fan,Square,119 MM H,230
Double tap image to magnify
Axial Fan,Square,119 MM H,230
Axial Fan,Square,119 MM H,230

#941360Pkg Qty: 1

$246.02 pkg | $246.02 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Apr 04.
|

Technical Specifications

Key Specifications
Agency Compliance
UL and CUL Component Recognized
Motor Type
Brushless DC
Amps
1.88
Mounting
Flange
Bearings
Ball
Mounting Position
Vertical or Horizontal
Blade Material
Fiberglass Reinforced Plastic PA
Package Quantity
1
Brand
EBM-PAPST
Shape
Square
Housing Material
Aluminum
Shipping Weight
1.24 lb.
IP Rating
IP20
Sound Level
70
Item
Standard Square Axial Fan
Voltage
24 VDC
Mfr. Part Number
4114NH5
Watts
45
General
Bearing Type
Ball
Max. Ambient Temp.
149 Degrees F
CFM @ 0.000-In. SP
230
Motor Insulation
Class E
Depth
1 1/2 in
Mounting Eye O.C.
4 1/8 in
Electrical Connection - Fans
Lead Wires
RPM
7500
Environmental Applications
Equipment Cooling
Standards
UL and C-UL Recognized and RoHS compliant
Fan Shape
Square
Thermal Protection
Electronic
Height
4 11/16 in
Width
4 11/16 in

Product Description

Standard square axial fans are used in dry locations to cool equipment within an enclosure. These equipment-cooling fans have a square housing that can mount over a round cutout or fit into a square cutout for installation.

Square compact axial fans have a square-shaped housing that can span a round cutout or fit into a square cutout for cooling equipment within an enclosure. These equipment-cooling fans require minimal space for installation and are typically installed where there's full access for mounting them against the interior of an enclosure. They have mounting holes at each corner for securing them to a wall or panel.
