OMRON

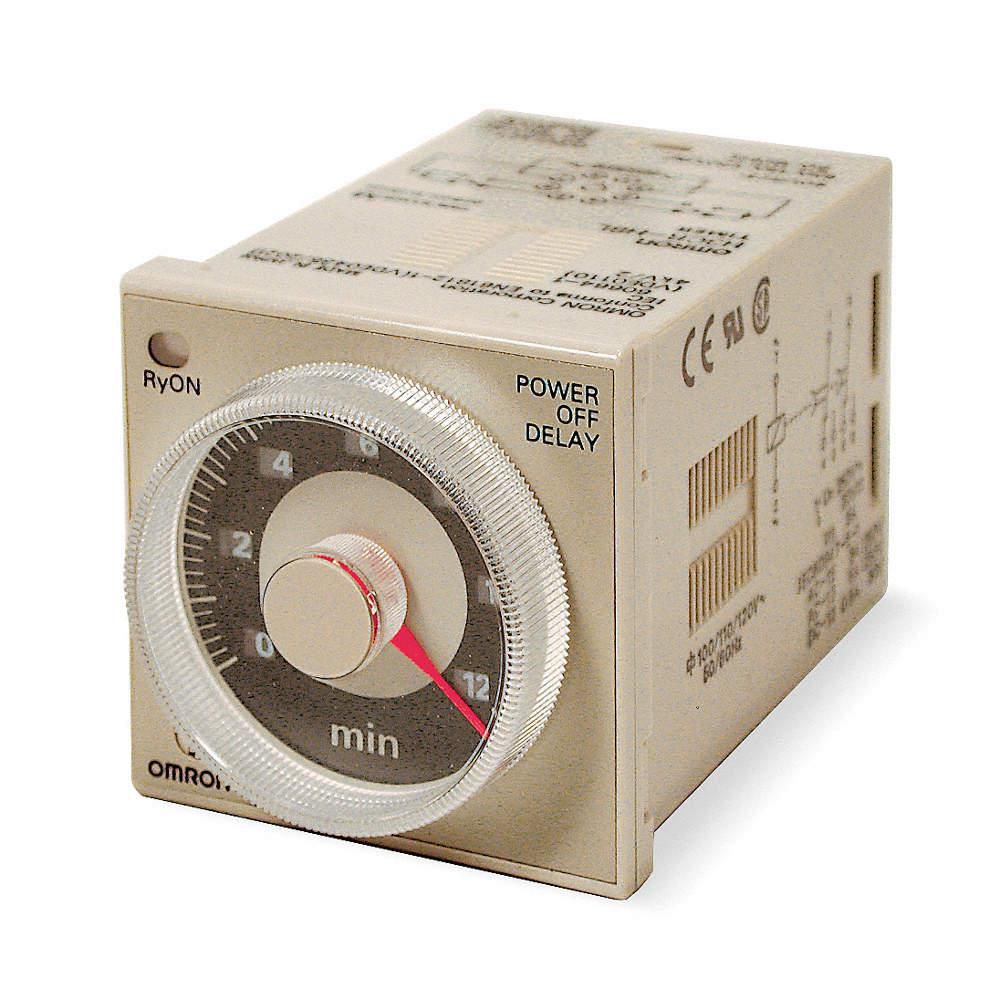

Omron Single Function Time Delay Relay: 8 Pins - Relay, Rotary Knob, 120V AC, Socket

Hover over image to magnify
Time Delay Rlay,120VAC,5A,Dpdt,
Time Delay Rlay,120VAC,5A,Dpdt,

#940971-8 | Pkg Qty: 1

$136.87 pkg | $136.87 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
OMRON
Mfr. Part Number
H3CR-H8L-AC100120S
Function
Power Off Delay
Mounting
Plug In/Panel
Hz
50/60
Package Quantity
1
Item
Single Function Time Delay Relay
Shipping Weight
.25 lb.
General
Adjustment Method
Analog Dial
IP Rating
IP40
Base Shape
Square
Input Voltage
100 to 120V AC
Body Depth
2.51 in
Maximum Operating Temperature
131 Degrees F
Body Height
1.89 in
Maximum Time Setting
12 sec
Body Width
1.89 in
Mechanical Operating Durability
20,000,000
Coil Voltage
120V AC
Minimum Operating Temperature
14 Degrees F
Combo Socket Code
Surface / Square 8
Minimum Time Setting
0.05 sec
Compatible with Manufacturer Model Number
P2CF-08, P2CF-08-E, P3G-08, PF085A, PL08, PL08-Q, PLE08-0
Mounting Style
Surface
Compatible with Part Number
1EGP3, 1EGP5, 5X852
Number of Delay Functions
1
Contact Form
DPDT
Number of Pins
8
Contact Material
Silver Alloy
Operating Time Accuracy
+/-0.2% FS max
Contact Rating (AC)
5 A @ 250V
Overall Depth
3.07 in
Current Rating
5 A
Power Consumption
5 VA
Delay Function
Power Off Delay
Relay Mounting Style
Surface
Delay Function Group
Off Delay
Relay Operation
Solid State
Delay Function Group Combo
1 / Power Off Delay
Reset Method
Forced Reset
Electrical Connection
Socket
Sealing
Enclosed
Electrical Connection Type
Pin
Standards
CCC, CE Certified, CSA Certified, EN 61812-1, LR, NK, UL Listed, UR
Electrical Operating Durability
100,000
Time Range
0.05 sec - 12 sec
Environmental Protection
Enclosed / IP40
Weight
4.23 oz
Frequency
50/60 Hz

Product Description

Single Function Time Delay Relay, Function - Timing Relay Power Off Delay, Coil Volts 120V AC, AC Contact Rating - Relay 5A @ 250V, Base Type - Plug In Relay Octal, Number of Pins - Relay 8, Mounting - Relay Plug In, Through Panel, Contact Form - Relay DPDT, Power Consumption - Relay 5 VA, Adjustment Method - Timer Rotary Knob, Min. Time Setting - Timer 0.05 sec, Max. Time Setting - Timer 12 sec, Contact Material Silver Alloy
