3M DBI-SALA

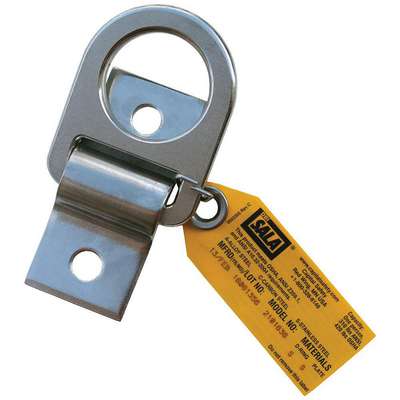

3M Dbi-Sala D-Ring,Anchor Plate Assy Ss,Weld: 310 lb Wt Capacity, Swivel D-Ring, Horizontal, Vertical, Steel

Hover over image to magnify
D-Ring Anchorage Plate,
D-Ring Anchorage Plate,

#940836-9 | Pkg Qty: 1

$395.27 pkg | $395.27 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
3M DBI-SALA
Shipping Weight
1.2 lb.
Item
D-Ring,Anchor Plate Assy Ss,Weld
Tensile Strength
5000 lb.
Mfr. Part Number
2101638
Weight Capacity
310 lb.
Mounting Type
Bolt-On, Weld-On
Width
2 in.
Package Quantity
1
General
ANSI Standards Met
ANSI Z359.1
Length
4 1/2 in
Anchor Installation
Permanent
Mounting Orientation
Horizontal, Vertical
Anchor Material
Steel
Mounting Type
Bolt-On, Weld-On
Anchorage End Connection
Rectangle Plate
Series
DBI-SALA
Attachment Point
Swivel D-Ring
Tensile Strength
5,000 lb
Beam Clamp Style
Fixed
Weight Capacity
310 lb
D-Ring Material
Steel
Width
2 in
Depth
4 1/2 in
Workers per System
1

Product Description

These D-ring anchors have an unthreaded mounting hole and are welded or bolted to structural steel or beams to create a permanent attachment point. Sometimes called bolt-on or weld-on anchors, they are used when a permanent or semi-permanent connection is recommended or when it's difficult to keep track of portable solutions on a large jobsite. A small footprint makes these anchors less obstructive than larger anchors. Anchors should always be inspected and replaced after being exposed to a fall.

Item Barcode
9408369
