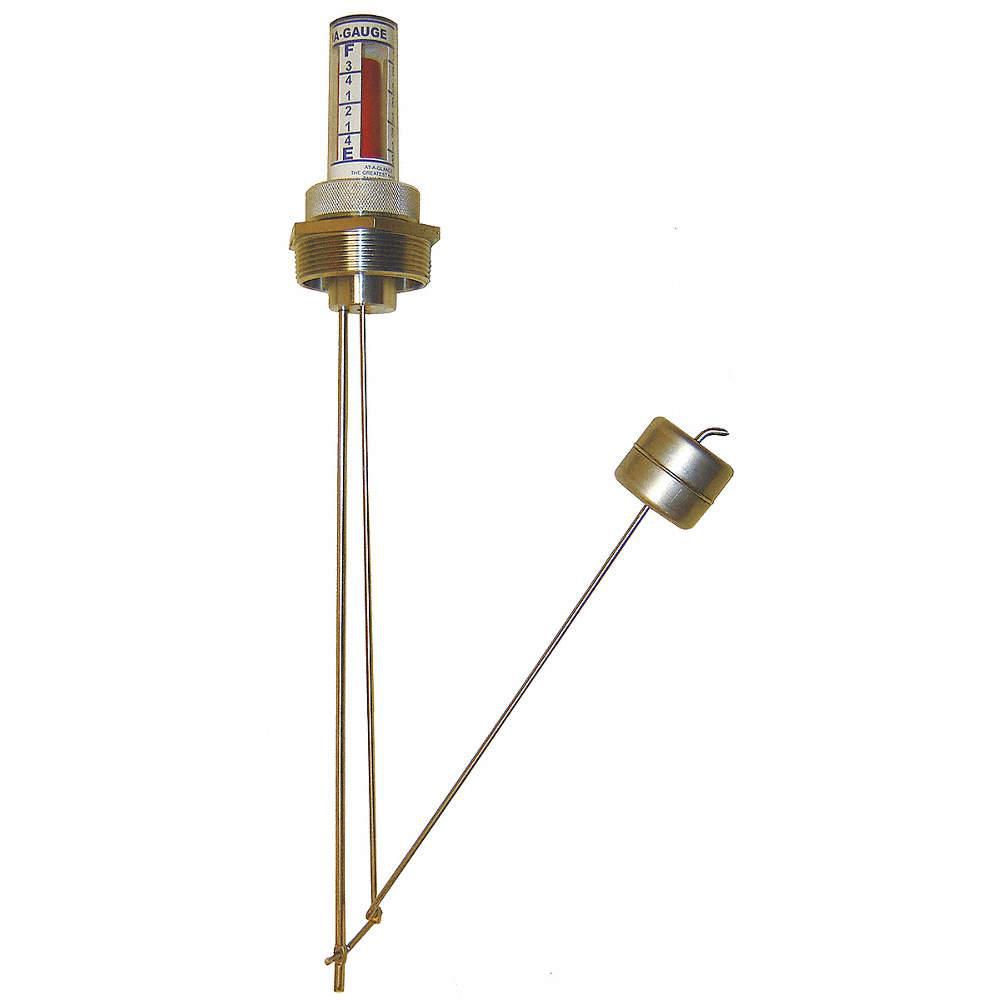

Krueger Level Gauge: For 37 in Container Dp, 1 1/2 in, Galvanized Steel / HDPE, 0 in Extension Lg

Hover over image to magnify
Level Gauge,Hdpe,D 37in
Level Gauge,Hdpe,D 37in

#940802-9 | Pkg Qty: 1

$55.03 pkg | $55.03 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Accuracy
1/8 of a Tank
Package Quantity
1
Brand
KRUEGER
Pipe Size
1 1/2 in.
Connection Size
1.5 in. NPT
Resolution
1/8 of a Tank
Housing Material
Cellulose Acetate
Seal Material
Nitrile Rubber
Item
Level Gauge
Shipping Weight
1.65 lb.
Maximum Temperature
120 deg. F
Thread Type
NPT
Mfr. Part Number
H-1.5-37
General
Accuracy
1/8 of a Tank
Maximum Operating Pressure
70 psi
Assembly Nut Material
HDPE
Maximum Temperature
120 Degrees F
Bushing Material
Aluminum
Minimum Temperature
-20 Degrees F
Extension Length
0 in
Pipe Size
1 1/2 in
Features
Can Accommodate Pipe Risers, Vaulted and Double Wall Tanks, Cost Effective Durable Design
Rivet Material
Brass
Float Diameter
1 1/8 in
Rod/Float Material
Galvanized Steel / HDPE
Float Material
HDPE
Seal Material
Nitrile Rubber
Float Rod Material
Galvanized Steel
Standards
FL Approved
For Container Depth
37 in
Thread Gender
Male
For Liquid Type
Diesel, Gasoline, Hydraulic Oil
Thread Type
NPT
Graduation Marks
Empty; Full; 1/8 Increments
Units of Measurement
Inches
Housing Material
Cellulose Acetate
Window Material
Cellulose Acetate
Increment of Variation
Primary 1/4, Secondary 1/8

Product Description

Level Gauge, Extension Length 0 in, Float Material HDPE, For Container Capacity No Exact Capacity, For Container Depth 37 in, For Container Type No Specific Style, For Liquid Type Diesel, Gasoline, Hydraulic Oil, Graduation Marks Empty; Full; 1/8 Increments, Includes , Increment of Variation Primary 1/4, Secondary 1/8, Pipe Size 1 1/2 in, Accuracy 1/8 of a Tank, Assembly Nut Material HDPE, Bushing Material Aluminum
