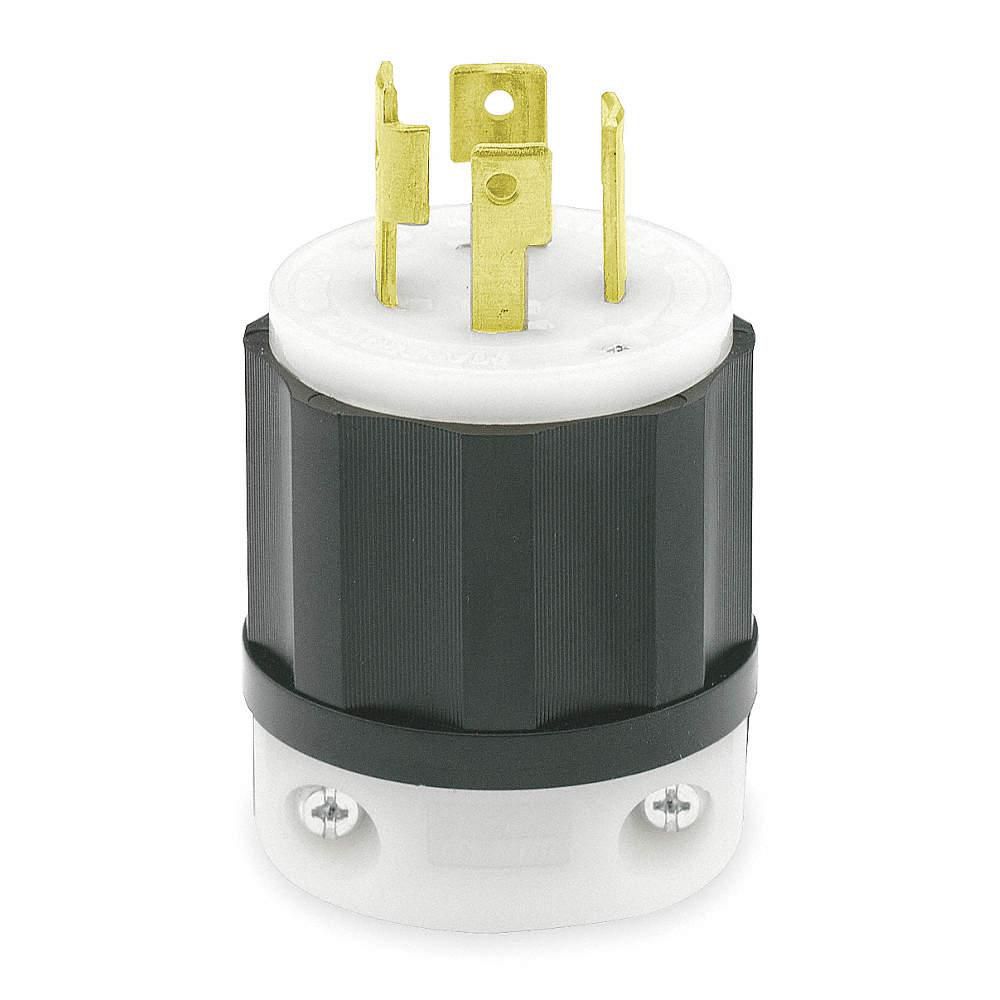

Leviton Locking Plug: L15-30P, 250V AC, 30 A, 3 Poles, Black/White, Screw Terminals

Hover over image to magnify
Locking Plug
Locking Plug

#940619-4 | Pkg Qty: 1

$53.04 pkg | $53.04 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amperage
30 A
Mfr. Part Number
2721
Blade Material
Brass
Midget Locking
No
Body Length
2.7 in.
Minimum Operating Temperature
-40 °C
Brand
LEVITON
Minimum Wire Size
14 AWG
Color Family
Black / White
NEMA Configuration - Plugs & Connectors
L15-30
Connection Orientation
Straight
NEMA Plug Configuration
L15-30P
Cord Size
0.56 in. to 1.05 in.
Number of Blades
4
Current Rating
30 A
Number of Poles
3
Face Diameter
1.97 in.
Number of Wires
4
For Environment
Dry
Outside Diameter
2.23 in.
Grade
Federal Specification
Overall Length
3.7 in.
Grounding
Grounded
Package Quantity
1
HP
3 HP
Phase
Three
Hazardous Location Specification
Not Applicable
Polarized
Yes
Horsepower
3 hp
Shipping Weight
.36 lb.
Housing Material
Nylon
Shrouded
No
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498 File E13393, UL Federal Specification WC-596 File E13393
Item
Locking Plug
UL 94 Flammability Rating
HB
Material
Impact Modified Nylon
Voltage
250V AC
Maximum Operating Temperature
60 °C
Wire Connection Type
Screw Terminals
Maximum Wire Size
8 AWG
Wiring Style
Standard
General
Horsepower Rating
3 hp
NEMA Configuration
L15-30
Housing Color
Black, White
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Market
Industrial
Voltage Rating
250V AC

Product Description

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L15-30P, Number of Blades 4, Number of Poles 3, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.97 in, For Maximum Cable Diameter 1.05 in, For Minimum Cable Diameter 0.56 in
