SQUARE D

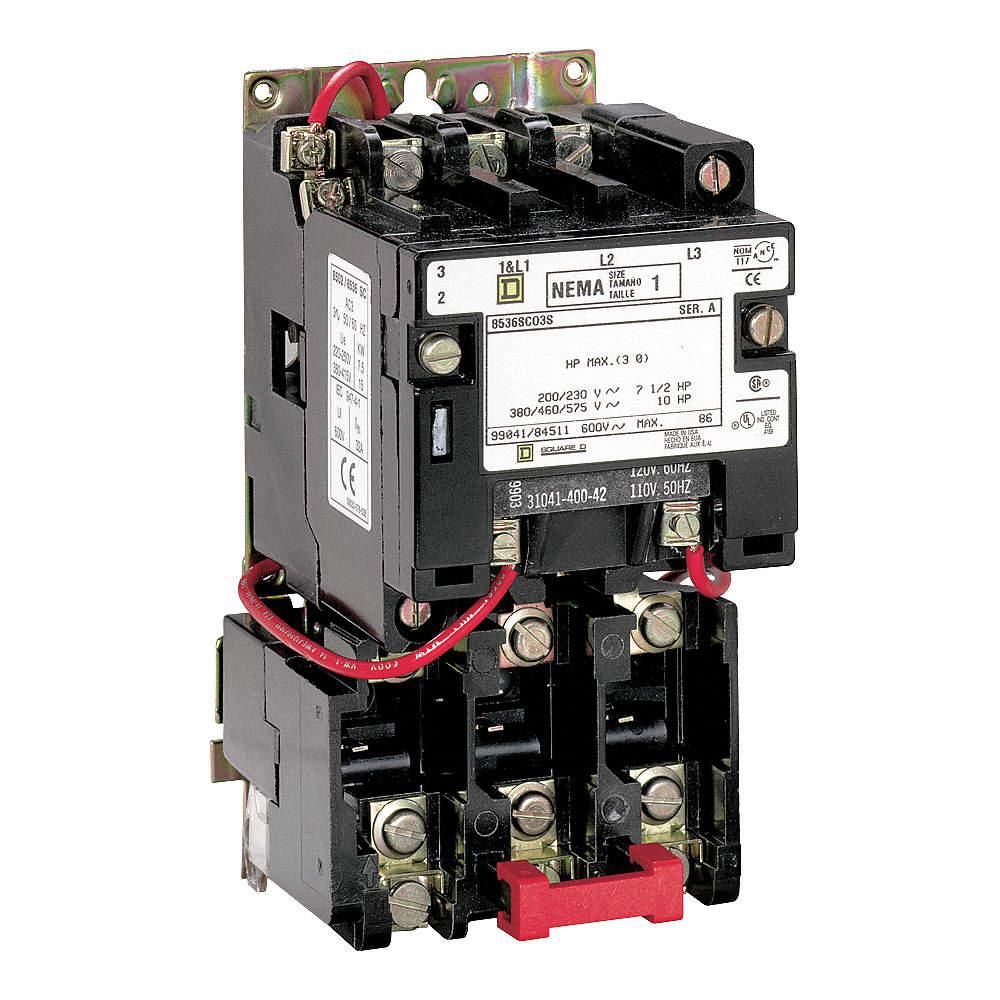

Square D Magnetic Motor Starter: 1P NEMA Size, 36 A Amps AC, 240V AC, No Enclosure

Hover over image to magnify
Motor Starter,Non Rev,Nema Sz1,
Motor Starter,Non Rev,Nema Sz1,
Double tap image to magnify
Motor Starter,Non Rev,Nema Sz1,
Motor Starter,Non Rev,Nema Sz1,

#940493-4Pkg Qty: 1

$731.61 pkg | $731.61 ea

In Stock

Shipping to 43085
Temporarily unavailable for at least 30 days. Consider an alternate product
|

Technical Specifications

Key Specifications
Brand
SQUARE D
Item
Magnetic Motor Starter
Depth
4.22 in.
Mfr. Part Number
8536SCO2V03
Enclosure NEMA Rating
No Enclosure
Package Quantity
1
Height
6.77 in.
Shipping Weight
3.98 lb.
Hz
50/60
Width
4.53 in.
General
Coil Voltage
220/240V AC
Overall Height
6.77 in
Coil Volts
240V AC
Overall Width
3.5 in
Current AC
27 A
Overload Protection Type
Thermal
Frequency
50/60 Hz
Phase
Three
Horsepower @ Single Phase - 120V AC
3 hp
Standards
CSA, UL Listed
Horsepower @ Single Phase - 240V AC
5 hp
Starter Style
NEMA
Maximum Voltage Rating
600V AC
Terminal Connection Type
Screw Clamp Terminals
NEMA Size
1
Thermal Unit Code
B
Nominal Coil Voltage @ 60Hz
240V AC
Thermal Units Required
1 Melting Alloy Unit (Not Included)
Number of Poles
2
Wire Termination Type
Screw Clamp
Overall Depth
4.22 in

Product Description

Full-voltage starters start and stop 1- and 3-phase AC motors. Manual push-to-test and visible trip indicator. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Normally open holding circuit contact for 3-wire control. Angled contacts provide high contact pressure and positive seating. Spring-assisted gravity dropout on de-energizing contacts quickly extinguishes any arcing. Class 20 thermal protection.

Documents

Product Data Sheet

Item Barcode

9404934
Motor Starter,Non Rev,Nema Sz1,
