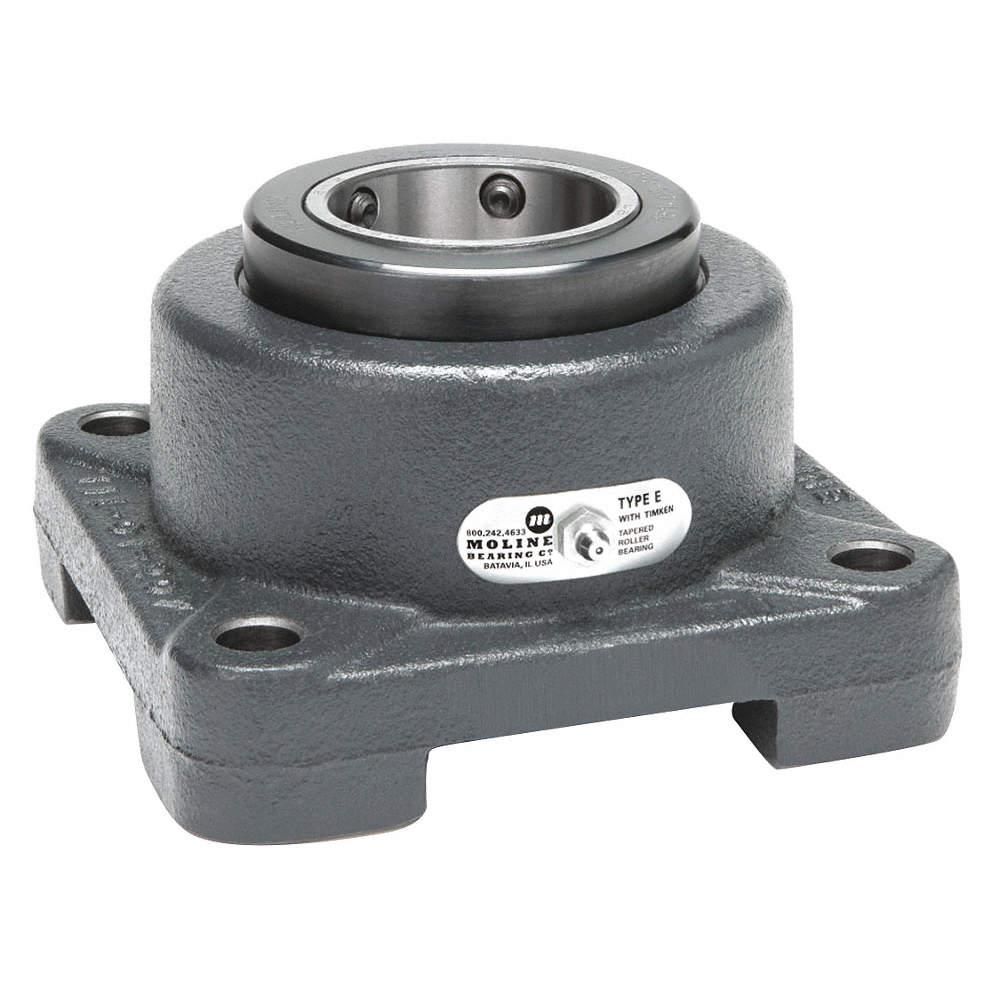

Flange Bearing: Tapered Roller, 3 in Bore, Cast Iron, Set Screws, 7.75 in Lg, Square

Name: Flange Bearing: Tapered Roller, 3 in Bore, Cast Iron, Set Screws, 7.75 in Lg, Square
Brand: MOLINE BEARING
SKU: 9403960
Price: 1030.29 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#940396Pkg Qty: 1

$1,030.29 pkg | $1,030.29 ea

In Stock

Shipping to 43085

Expected to arrive Wed. Apr 09.

Technical Specifications

Key Specifications

Bore Diameter

3 in. in.

Overall Height

7-3/4 in.

Brand

MOLINE BEARING

Overall Length

7.75 in.

Housing Material

Cast Iron

Overall Width

4-1/2 in.

Item

Flange Bearing

Package Quantity

Maximum Temperature

250 deg. F

Seal Material

Nitrile; Teflon

Mfr. Part Number

19311300

Shipping Weight

11 lb.

General

Bore Dia.

3 in

Temp. Range

-40 Degrees to 250 Degrees F

Product Description

E Roller, Tapered Roller Bearing Insert Type, 3 in Bore Dia., Bolt Hole Center-to-Center 6 in, Cast Iron Bearing Housing Material Type, Set Screw Shaft Locking Type, 52100 Chrome Steel Bearing Insert Material, Bolt Size 3/4 in, Overall Height 7 3/4 in, Overall Width 7 3/4 in, Overall Length 4 1/2 in, Bearing Lubrication Lithium Complex Grease, Dynamic Load Capacity 12,300 lb, Static Load Capacity 612,000 lb, Temp. Range -40 Degrees to 250 Degrees F, Includes Timken Type E Tapered Roller Bearing
