CENTURY

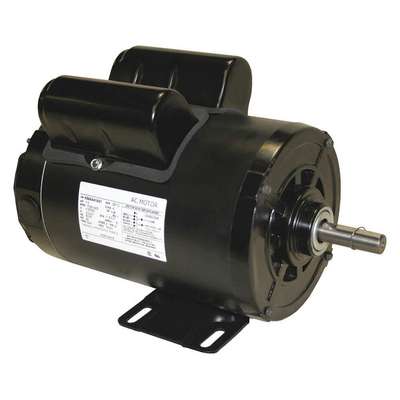

Century Agricultural Fan Motor: 1, 1,725, 115/230V AC, 56, Auto, 1.3 Motor Service Factor, Keyed, B
Hover over image to magnify
#940008-4 | Pkg Qty: 1
$511.95 pkg | $511.95 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL Recognized (E46412), CSA Certified (LR43341)
Motor Type
Capacitor-Start/Capacitor-Run
Bearings
Ball
Mounting
Base
Brand
CENTURY
Mounting Position
Horizontal
Duty
Continuous
Overall Length
12 13/16 in.
Frame
56
Package Quantity
1
Full Load Amps
9.0/4.5
Phase
Single
Function
Poultry Duty Motor
Rotation
CW/CCW
Hz
60/50
Shaft Length
2 in.
Item
Agricultural Fan Motor
Shipping Weight
32.68 lb.
Mfr. Part Number
PD6104AV3
Voltage
115/230 VAC
General
Capacitor Required
Yes
Motor Service Factor
1.3
Full Load Amps @ 50Hz
9.0/4.5
Motor Shaft Design
Keyed
HP
1
Motor Shaft Rotation
CW/CCW
HP @ 50Hz
1
Motor Sub Application
Belt Drive Fan/Blower
Ins. Class
B
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 °C
No. of Speeds
1
Motor Application
Farm Duty
RPM @ 50Hz
1,425
Motor Bearings
Ball
RPM Range
1,701-1,800
Motor Efficiency Group
Energy Efficient
Shaft Dia.
5/8 in
Motor Enclosure Design
Totally Enclosed Air-Over
Usable @ 200V
Yes
Motor Frame Material
Steel
Usable @ 208V
Yes
Motor Mounting Position
Horizontal
Voltage @ 50Hz
230V AC
Motor Mounting Type
Rigid Base
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Product Description
Poultry/livestock belt drive farm-duty AC motors allow the user to change the motor and driver sheaves to adjust the air flow in poultry and livestock barns. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
Item Barcode
Frm Dty Mtr,Capstrt,Teao,1hp,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3RCX1 | |
 | UNSPSC CODES | 26101103 | |
 | VMRS (ATA) CODES | 053-006-009 |
