ARO

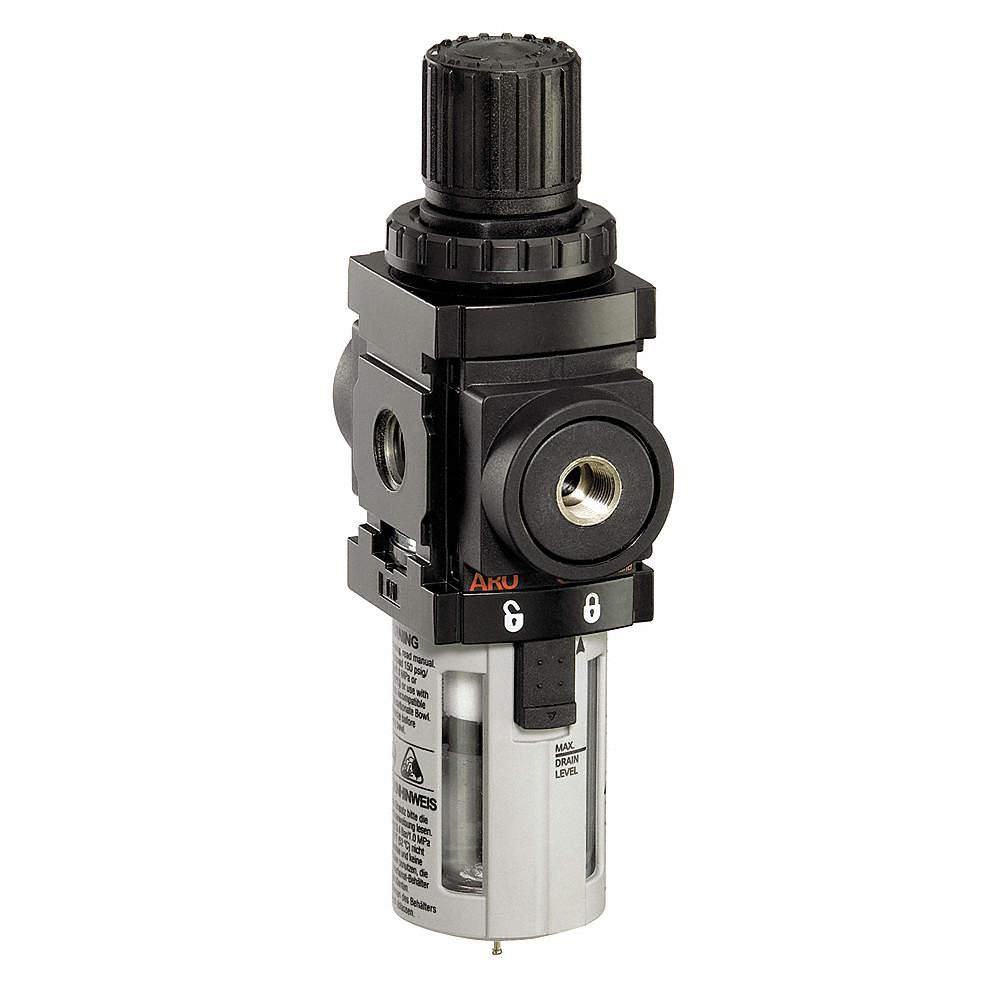

Filter-Regulator: 3/4 in NPT, 173 cfm, 0.3 micron, 0 psi to 140 psi, 150 psi Max Op Pressure
Hover over image to magnify
#939906-1 | Pkg Qty: 1
$277.31 pkg | $277.31 ea
Drop Ship Item
Shipping to 60045
Required Items
Items below are required. They are not included and need to be ordered separately.
Technical Specifications
Key Specifications
Body Material
Aluminum
Minimum Operating Temperature
23 deg. F
Brand
ARO
Overall Height
10 in.
Filter Type
Coalescing
Package Quantity
1
Item
Filter-Regulator
Pipe Size
3/4 in. NPT
Maximum Operating Temperature
125 deg. F
Series
2000
Mfr. Part Number
P39353-100
Shipping Weight
2.1 lb.
General
Adjustment Mechanism
Knob
For Fluid Type
Oil, Oil Vapor, Particles, Water
Adjustment Range
0 to 140 psi
For Removal Of
Oil, Oil Vapor, Particles, Water
Adjustment Range - Air Treatment
0 to 140 psi
For Substance Type
Oil, Oil Vapor, Particles, Water
Air Inlet Type
NPT
Gauge Port Size
1/8 in
Air Outlet Size
3/4 in
Max. Flow - Air Treatment
173 cfm
Air Outlet Type
NPT
Max. Flow Range - Air Treatment
151 to 200 cfm
Bowl Material - Air Treatment
Polycarbonate
Max. Incoming Pressure - Air Treatment
150 psi
Bowl Size - Air Treatment
1.9 oz
Maximum Regulated Pressure
140 psi
Connection Size - Air Treatment
3/4 in NPT
Minimum Regulated Pressure
0 psi
Drain Part Compatibility
104320
Number of Air Inlets
1
Filter Bowl Capacity
1.9 oz
Number of Air Outlets
1
Filter Bowl Guard Included
Yes
Pressure Drop
33 psi
Filter Bowl Material
Plastic
Pressure Gauge Port Size
1/8 in
Filter Element Material
Polyethylene
Pressure Gauge Port Type
NPT
Filter Rating (Microns)
0.3
Regulator Type
Relieving
Filter Rating - Air Treatment
0.3 micron
Size - Air Treatment
Subcompact
Product Description
This filter-regulator combines an air filter and air regulator in a single unit. It is designed to remove solid and liquid contaminants from air, while also providing controlled, consistent air pressure.
