DAYTON

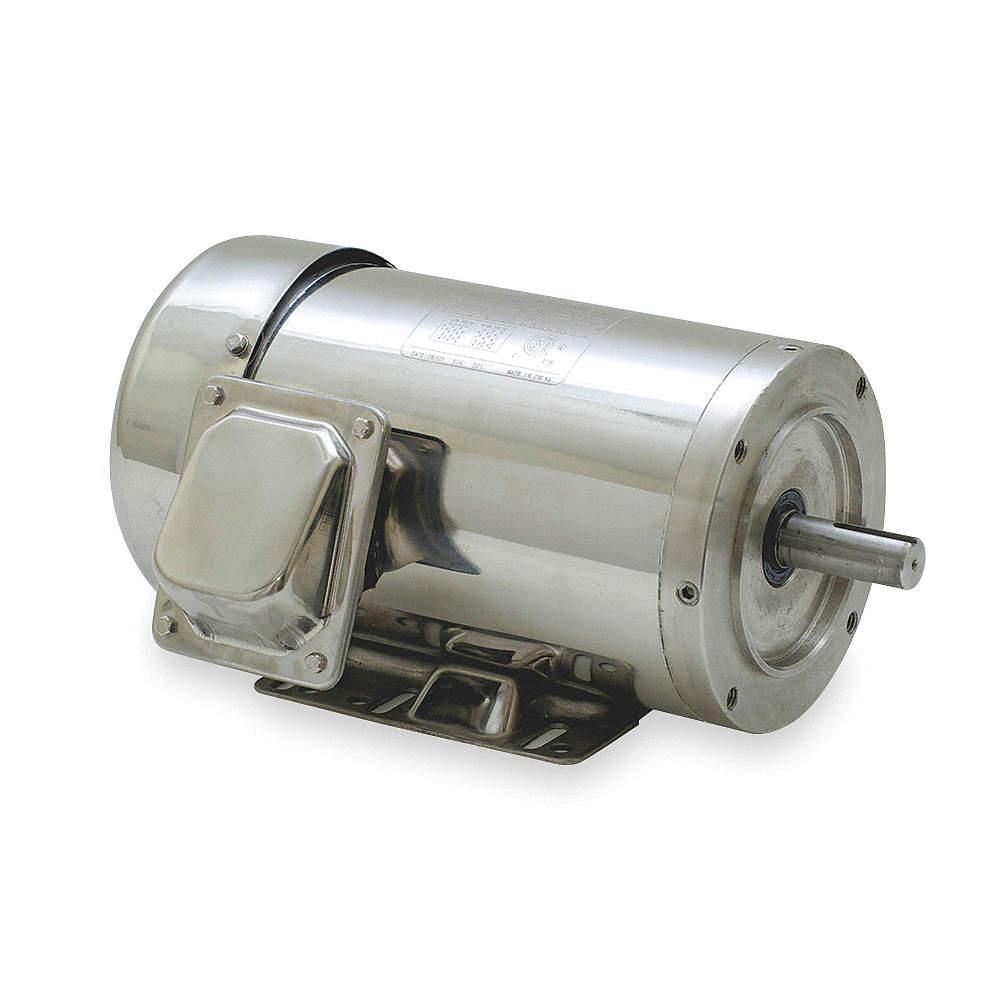

Dayton Washdown Motor: 3-Phase, 3 HP, 3,510 Nameplate RPM, 230/460V AC, 182TC
Hover over image to magnify
#939804-4 | Pkg Qty: 1
$1,792.24 pkg | $1,792.24 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Motor Type
3-Phase
Brand
DAYTON
Mounting
Face/Base
Duty
Continuous
Overall Length
16 15/16 in.
Frame
182TC
Package Quantity
1
Frame Material
Stainless Steel
Phase
Three
Full Load Amps
8.1/4.05
Rotation
CW/CCW
Hz
60
Shipping Weight
86 lb.
Item
Washdown Motor
Voltage
230/460 VAC
Mfr. Part Number
2RKY6
General
Body Dia.
9 in
Motor Enclosure Design
Totally Enclosed Fan-Cooled
CC Number
CC082A
Motor Frame Material
Stainless Steel
Complies With
NEMA MG1 Part 31 10:1 variable, 4:1 constant
Motor Mounting Type
Face/Base
Conduit Box
Split
Motor Service Factor
1.15
Drain Plugs
4 per Endshield
Motor Shaft Design
Keyed
HP
3
Motor Shaft Rotation
CW/CCW
Ins. Class
F
NEMA Design
B
Inverter Rated
Yes
Nominal Efficiency
86.5 %
Max. Ambient Temp.
40 °C
RPM Range
3,001-3,600
Motor Application
Washdown
Shaft Dia.
1 1/8 in
Motor Bearings
Ball
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Efficiency Group
Premium Efficient
Product Description
Stainless steel washdown AC motors have exterior components of 300 series stainless steel to provide maximum corrosion resistance in severe-duty and washdown environments. The motors’ exterior is completely paint- and coating-free and sealed against moisture and condensation to protect internal components.
Item Barcode
Washdown Motor,3 Hp,3510,182TC,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2RKY6 | |
 | UNSPSC CODES | 26101115 | |
 | VMRS (ATA) CODES | 053-006-009 |
