EATON

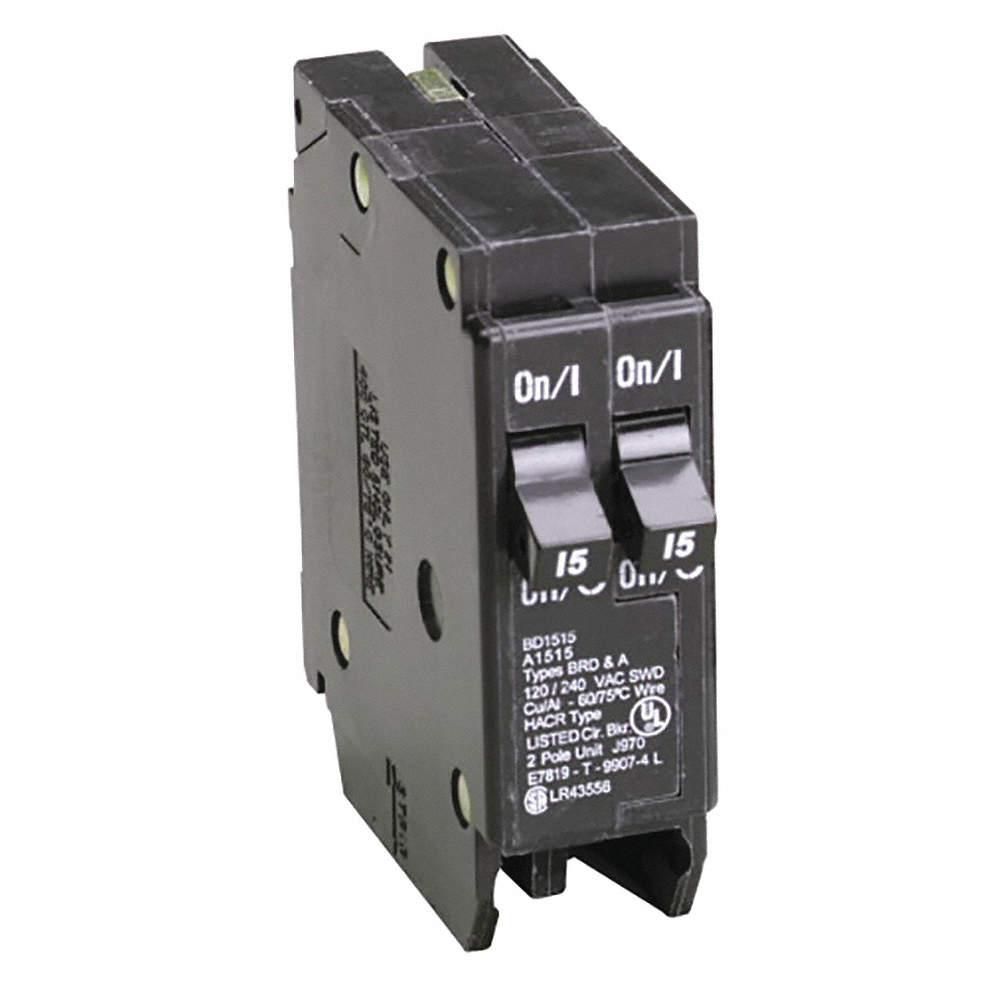

Circuit Breaker: 15 A, 120V AC, Single Phase, 10kA at 120V AC, Type BR Loadcenters
Hover over image to magnify
#939706-9 | Pkg Qty: 1
$68.44 pkg | $68.44 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Voltage Rating
120VAC
Maximum Air Rating
10 kA at 120VAC
Amperage
15 A
Maximum Wire Size
14 AWG (Cu/Al)
Amps
15 A
Mfr. Part Number
BD1515
Brand
EATON
Minimum Wire Size
4 AWG (Cu/Al)
Circuit Breaker Type
Tandem
Number of Poles
1
DC Voltage Rating
Not Rated
Package Quantity
1
Depth
2-1/2 in.
Phase
Single
For Use With
Type BR Loadcenters
Series
BD
Item
Circuit Breaker
Shipping Weight
.3 lb.
Length
2.9 in.
Width
1 in.
General
Circuit Breaker Actuator
Toggle
Compatible Panelboard/Load Center Series
BD
Circuit Breaker Mounting Style
Plug In
Product Description
These BR and BD series miniature circuit breakers plug into panelboards and load centers. They interrupt currents when faults are detected in the circuit. These breakers connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.
Item Barcode
Type Bd Duplex Breaker 2-15a/1
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 60JL22 | |
 | UNSPSC CODES | 39121603 | |
 | VMRS (ATA) CODES | 053-006-009 | Type Bd Duplex |
