GE

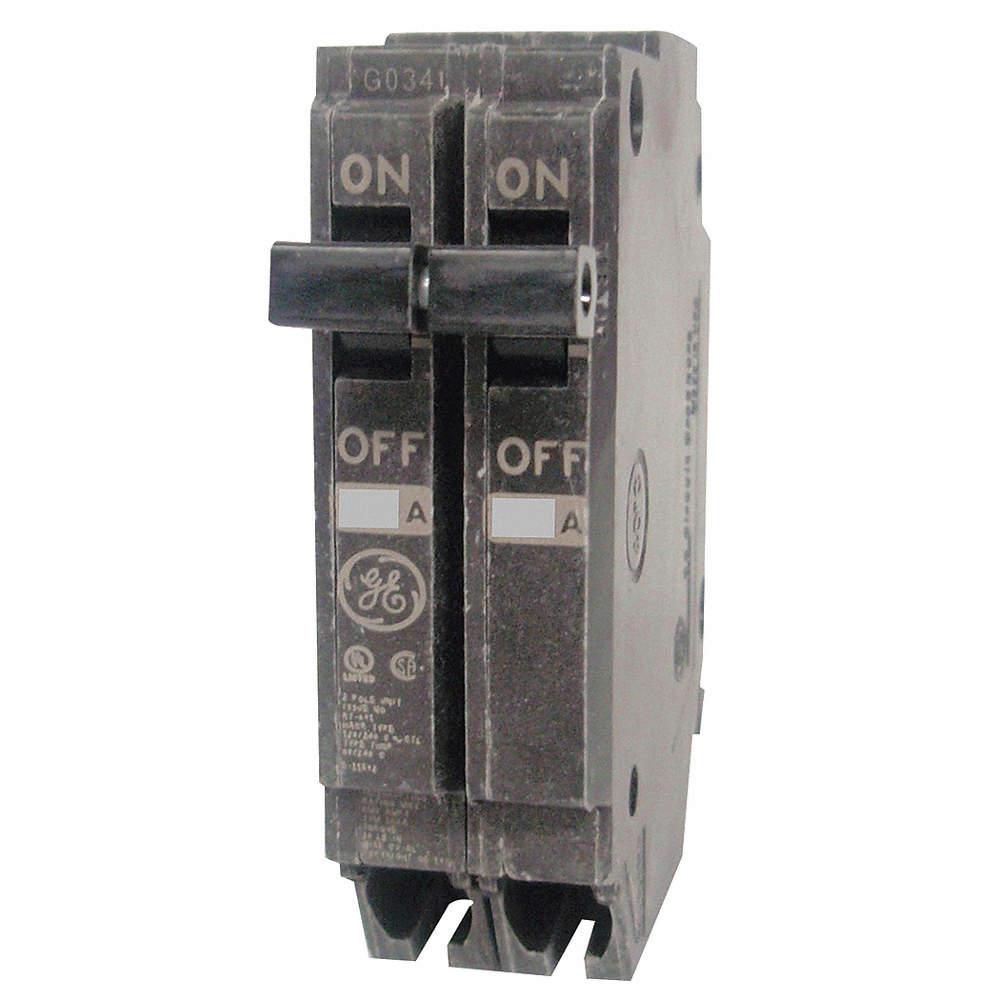

GE Miniature Circuit Breaker: 15 A, 120/240V AC, Single Phase, 10kA at 120/240V AC, GE Panelboards

Hover over image to magnify
Circuit Breaker,15A,Plug In,
Circuit Breaker,15A,Plug In,
Double tap image to magnify
Circuit Breaker,15A,Plug In,
Circuit Breaker,15A,Plug In,

#939593-9Pkg Qty: 1

$32.20 pkg | $32.20 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
AC Voltage Rating
120/240VAC
Maximum Wire Size
8 MCM
Amperage
15 A
Mfr. Part Number
THQP215
Amps
15 A
Minimum Wire Size
12 MCM (Al), 14 MCM (Cu)
Brand
GE
Number of Poles
2
Circuit Breaker Type
Standard
Package Quantity
1
DC Voltage Rating
Not Rated
Panelboard Mounting
Plug-In
Depth
2.38 in.
Phase
Single
For Use With
GE Panelboards
Series
THQP
Frame Size
100A/THQ
Shipping Weight
.35 lb.
Instantaneous Trip
Fixed
Terminal Connection
Lug
Item
Miniature Circuit Breaker
Voltage
120/240
Length
3.28 in.
Width
1 in.
Maximum Air Rating
10kA at 120/240VAC
General
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In

Product Description

These THQP, THQL, and THHQL series miniature circuit breakers plug into place in panelboards and load centers without requiring DIN rail, so they're easier to install than unit-mount breakers. They interrupt currents when faults are detected in the circuit. These breakers connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center. They're UL listed for use in HACR (heating, air conditioning, and refrigeration) applications.
