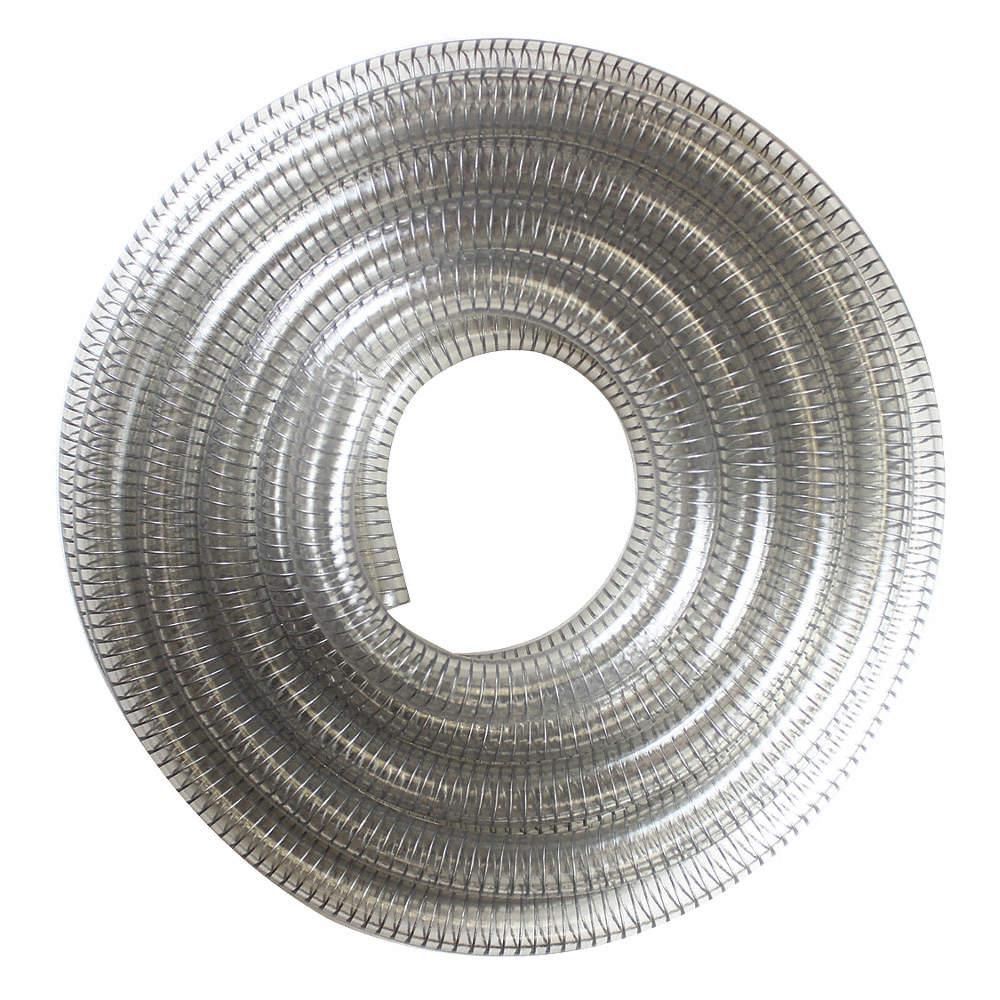

Suction and Transfer Hose: PVC with Wire Helix, 25 ft Tube Lg, Shore A: 73, Clear

Hover over image to magnify
Suction And Transfer Hose,25
Suction And Transfer Hose,25
Double tap image to magnify
Suction And Transfer Hose,25
Suction And Transfer Hose,25

#939534-3Pkg Qty: 1

$81.16 pkg | $81.16 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 08.
|

Technical Specifications

Key Specifications
Brand
E. JAMES
Mfr. Part Number
1530-375625
Item
Suction and Transfer Hose
Package Quantity
1
Length
25 ft.
SAE or Metric
SAE
Material of Construction
PVC with Wire
Shipping Weight
3.7 lb.
General
Metal Detectable
Yes
Tube Bend Radius
1 1/2 in
Temp. Range
20 Degrees to 150 Degrees F
Tube Hardness
Shore A: 73

Product Description

Suction and Transfer Hose, Tube Material PVC with Wire Helix, Tube Hardness Shore A: 73, Inside Dia. 3/8 in, Outside Dia. 5/8 in, Wall Thickness 1/8 in, Max. Pressure 180 psi @ 70 Degrees F, Tube Length 25 ft, Clear, Tube Bend Radius 1 1/2 in, SAE, Temp. Range 20 Degrees to 150 Degrees F, Vacuum Rating 29.9 in Hg, Application Coolant Lines, For Food and Water Dispensing, Pneumatic Systems, Pure Water Systems, Vacuum Lines and Auto Wash Equipment, Standards FDA
