SQUARE D

Square D Miniature Circuit Breaker: 20 A, 120/240V AC, Single Phase, 10kA at 120/240V AC, 2 Poles

Hover over image to magnify

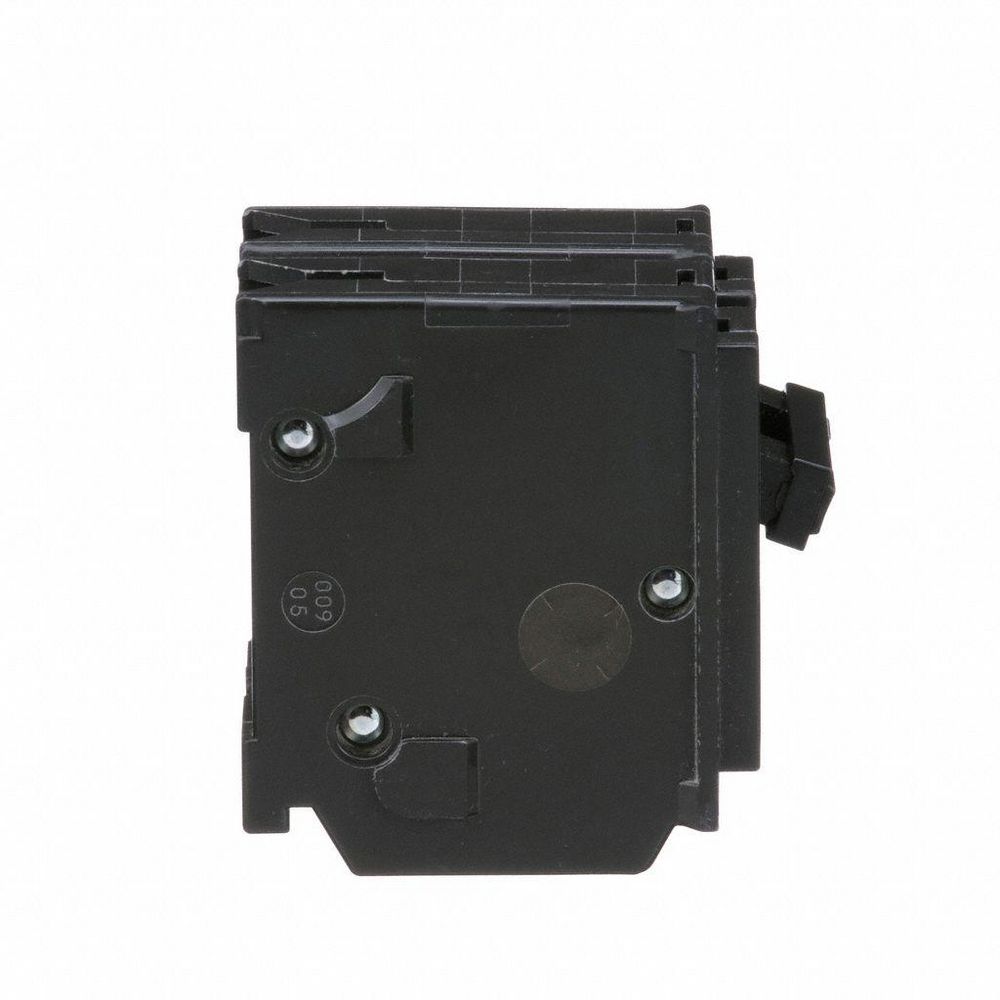

Circuit Breaker,20A,Plug In,
PI_Asset_2107013
PI_Asset_2107014
PI_Asset_2107015
Circuit Breaker,20A,Plug In,
PI_Asset_2107013
PI_Asset_2107014
PI_Asset_2107015
Double tap image to magnify
Circuit Breaker,20A,Plug In,
1D352_1
1D352_2
1D352_3
Circuit Breaker,20A,Plug In,
1D352_1
1D352_2
1D352_3

#939257-3Pkg Qty: 1

$32.60 pkg | $32.60 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
AC Voltage Rating
120/240VAC
Maximum Wire Size
8 AWG
Air @ 120 VAC
10kA
Mfr. Part Number
HOM220
Amperage
20 A
Minimum Wire Size
14 AWG
Amps
20 A
Number of Poles
2
Brand
SQUARE D
Package Quantity
1
Circuit Breaker Type
Standard
Panelboard Mounting
Plug-In
DC Voltage Rating
Not Rated
Phase
Single
Depth
2.98 in.
Phase Connection
Any
For Use With
Homeline Load Center
Series
HOM
Frame Size
100A/HOM
Shipping Weight
.67 lb.
High Amp Trip Setting
27
Terminal Connection
Screw Clamp
Instantaneous Trip
Fixed
Type
Panelboard Mount
Item
Miniature Circuit Breaker
Voltage
120 - 240VAC
Length
3.13 in.
Width
2 in.
Maximum Air Rating
10kA at 120/240VAC
General
Circuit Breaker Actuator
Paddle
Min. Operating Temp.
104°F
Circuit Breaker Mounting Style
Plug In

Product Description

These HOM series miniature circuit breakers plug into place in Homeline load centers without requiring DIN rail or bolts, so they're easier to install than unit-mount or bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
