DAYTON

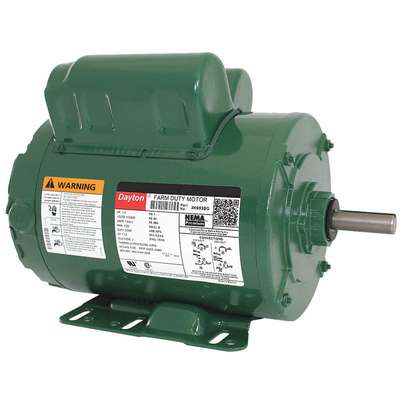

Dayton Agricultural Fan Motor: 1, 1,725, 115/230V AC, 56H, Auto, 1.15 Motor Service Factor, Keyed

Hover over image to magnify
Farm Duty Mtr,Cs-Cr,Teao,1HP,

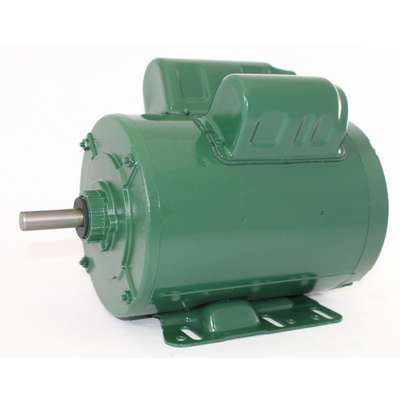

PI_Asset_2107908

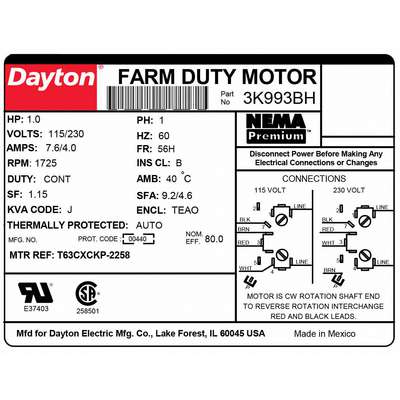

PI_Asset_2107909
Farm Duty Mtr,Cs-Cr,Teao,1HP,
PI_Asset_2107908
PI_Asset_2107909
Double tap image to magnify
Farm Duty Mtr,Cs-Cr,Teao,1HP,
3K993_1
3K993_2
Farm Duty Mtr,Cs-Cr,Teao,1HP,
3K993_1
3K993_2

#939222-5Pkg Qty: 1

$415.25 pkg | $415.25 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 18.
|

Technical Specifications

Key Specifications
Bearings
Ball
Mounting
Base
Brand
DAYTON
NEMA/IEC Frame
56H
Duty
Continuous Air Over
Nameplate RPM
1725
Duty Cycle
Continuous
Overall Length
11-15/16 in.
Enclosure
Totally Enclosed Air-Over
Package Quantity
1
Frame
56H
Phase
Single
Full Load Amps
7.9/4.0
Rotation
CW/CCW
Hz
60
Service Factor
1.15
Insulation Class
B
Shaft Length
1-7/8 in.
Item
Agricultural Fan Motor
Shipping Weight
36.6 lb.
Length Less Shaft
10-1/16 in.
Thermal Protection
Auto
Mfr. Part Number
3K993
Type
Agricultural Fan
Motor Design
Capacitor-Start/Run
Voltage
115/230 VAC
Motor Type
Capacitor-Start
General
Capacitor Required
Included
Motor Mounting Type
Rigid Base
HP
1
Motor Shaft Design
Keyed
Includes
Shaft Key, Gasketed Capacitor Cover, Conduit Box, Shaft Slinger
No. of Speeds
1
Max. Ambient Temp.
40 °C
Nominal Efficiency
80 %
Motor Application
Farm Duty
RPM Range
1,701-1,800
Motor Frame Material
Rolled Steel
Shaft Dia.
5/8 in
Motor Mounting Position
Horizontal
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC

Product Description

Poultry/livestock direct drive farm-duty AC motors require no V-belts or sheaves that can wear out and require maintenance and replacement. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
