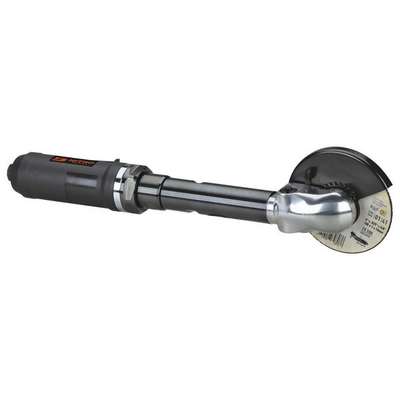

Dynabrade Cut-Off Tool: 4 in Wheel Dia, 1 hp Horsepower, 14,000 RPM Max. Speed, 1/4 in NPT

Hover over image to magnify
Cut-Off Tool,4" Wheel Dia,
PI_Asset_2108981
Cut-Off Tool,4" Wheel Dia,
PI_Asset_2108981

#939126-6 | Pkg Qty: 1

$455.06 pkg | $455.06 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Consumption
37 cfm
Kit Contents
(1) Bare Tool
Air Inlet
1/4 in. NPT
Lever Type
Locking
Arbor Hole Size
3/8 in.
Mfr. Part Number
ECU4
Brand
DYNABRADE
Overall Length
14-3/4 in.
Duty
Medium Duty
Package Quantity
1
Duty Rating
Medium Duty
Power Source
Air Powered
Exhaust
Bottom
Shipping Weight
4 lb.
Exhaust Location
Rear
Speed Control
Lever
Free Speed
14,000 RPM
Spindle Diameter
3/8 in.
Handle Material
Composite
Tool Weight
4.1 lb.
Horsepower
1 hp
Wheel Diameter
4 in.
Item
Cut-Off Tool
General
Accessory Free Tool Change
Yes
Cut-Off Wheel Orientation
Right Angle
Air Inlet Connection Size
1/4 in
Includes
Hex Wrench
Air Inlet Gender
Female
Lock-On Switch
Yes
Air Inlet Type
NPT
Max. Speed
14,000 RPM
Air Pressure
90 psi
Maximum Wheel Thickness
1/32 in
Anti-Vibration Technology
Yes
Min. Hose Size
3/8 in
Arbor Hole Shape
Round

Product Description

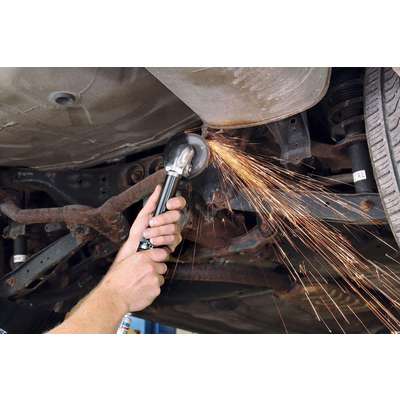

The long body of these cut-off tools extends their reach beyond 11" to fit into recesses and between two surfaces. They position cut-off wheels on the side of the tool with the cutting edge at a right angle to the body to cut through thin metal, long workpieces, and around larger pipes. Extended-reach cut-off tools require a two-handed grip with one hand at the base of the body and the other hand closer to the wheel.
