ENERPAC

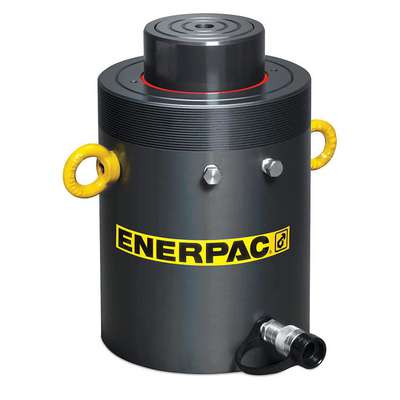

Hydraulic Ram: Single Acting, 100 ton Nominal Capacity, 7 in Nominal Stroke Lg, Steel, HCG

Hover over image to magnify
Hydraulic Ram,Steel,5.31" Bore
Hydraulic Ram,Steel,5.31" Bore

#939079-8 | Pkg Qty: 1

$6,809.46 pkg | $6,809.46 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Body Material
Steel
Nominal Capacity
100 ton
Brand
ENERPAC
Package Quantity
1
Cylinder Type
High Cycle
Series
HCG
Item
Hydraulic Ram
Shipping Weight
103 lb.
Mfr. Part Number
HCG1006
Stroke Length
5-7/8 in.
General
Base Mounting Thread Size
M12
Nominal Stroke Length
7 in
Bore Dia.
5.31 in
Oil Capacity Push
131.02 cu in
Effective Push Area
22.19 sq in
Outside Dia.
6.89 in
Extended Height
17.8 in
Plunger Dia.
3.74 in
Includes
(2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
Retracted Height
11.89 in
Max. Pressure
10,150 psi
Single Acting/Double Acting
Single Acting

Product Description

Hydraulic Ram, Single Acting, High Cycle, Steel, Nominal Capacity 100 ton, Stroke Length 5 7/8 in, Nominal Stroke Length 7 in, Effective Push Area 22.19 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 131.02 cu in, Retracted Height 11.89 in, Extended Height 17.8 in, Outside Dia. 6.89 in, Plunger Dia. 3.74 in, Base Mounting Thread Size M12, Weight 102 lb, Series HCG, Includes (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve, Bore Dia. 5.31 in
