SCHNEIDER ELECTRIC

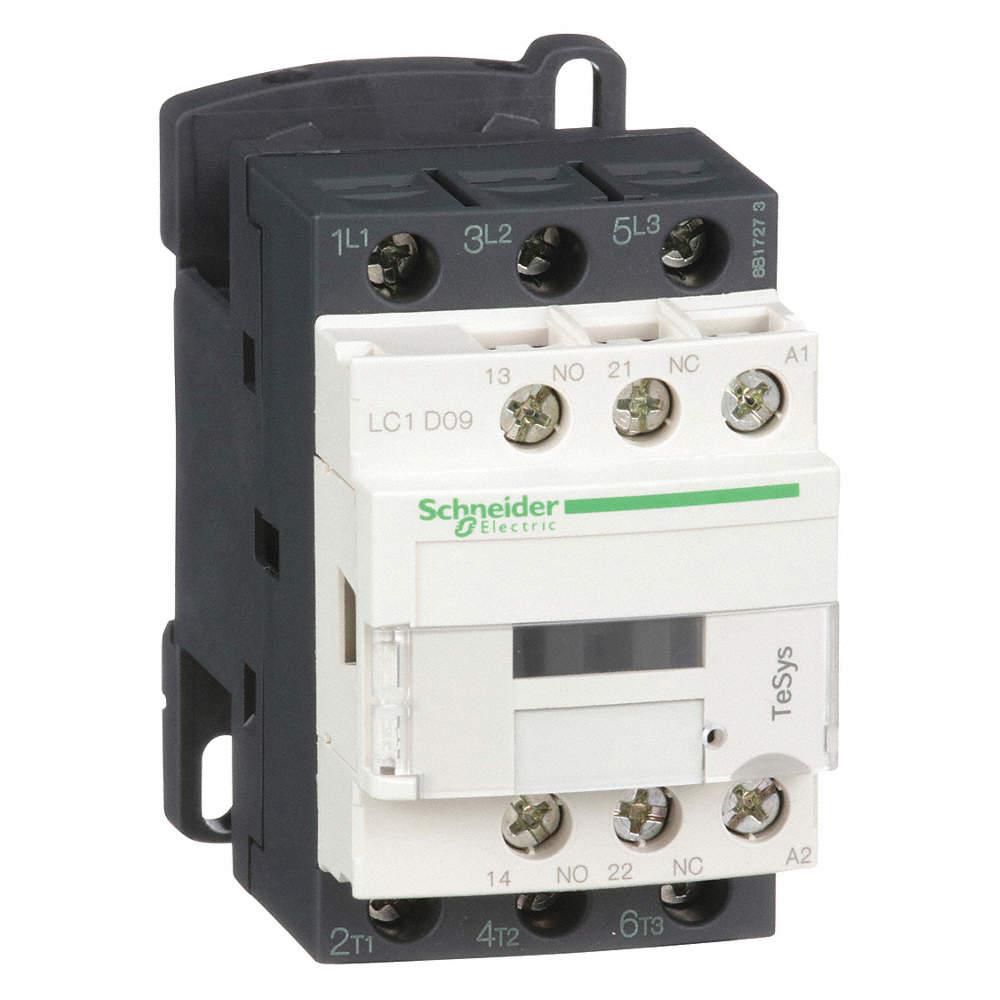

Schneider Electric IEC Magnetic Contactor: 9 A Full Load Amps-Inductive, 1NO/1NC, 3 Poles, 110 V AC

Hover over image to magnify
Iec Magnetic Contactor,110V
PI_Asset_2108220
PI_Asset_2108221
PI_Asset_2108222
PI_Asset_2108223
Iec Magnetic Contactor,110V
PI_Asset_2108220
PI_Asset_2108221
PI_Asset_2108222
PI_Asset_2108223
Double tap image to magnify
Iec Magnetic Contactor,110V
48N938_1
48N938_2
48N938_3
48N938_4
Iec Magnetic Contactor,110V
48N938_1
48N938_2
48N938_3
48N938_4

#939059-7Pkg Qty: 1

$146.06 pkg | $146.06 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 31.
|

Technical Specifications

Key Specifications
Brand
SCHNEIDER ELECTRIC
Mfr. Part Number
LC1D09F7
Coil Volts
110 VAC
Number of Poles
3
Depth
4.41 in.
Package Quantity
1
Enclosure NEMA Rating
No Enclosure
Reversing
No
Height
1.97 in.
Shipping Weight
.8 lb.
Hz
50/60
Width
3.62 in.
Item
IEC Magnetic Contactor
General
Aux. Contact Configuration
1NO/1NC
HP @ 1 Phase - 240V
1 hp
Frame / Series / Class / Code
TeSys
HP @ 3 Phase - 575V
7 1/2 hp
Full Load Amps-Resistive
25 A

Product Description

IEC Magnetic Contactor, Full Load Amps-Inductive 9 A, Full Load Amps-Resistive 25 A, Number of Poles 3, Coil Volts 110 V AC, Reversing No, HP @ 1 Phase - 120V 5/16 hp, HP @ 1 Phase - 240V 1 hp, HP @ 3 Phase - 208V 2 hp, HP @ 3 Phase - 240V 2 hp, HP @ 3 Phase - 480V 5 hp, HP @ 3 Phase - 575V 7 1/2 hp, Aux. Contact Configuration 1NO/1NC, Enclosure NEMA Rating No Enclosure, Hz 50/60, Height 1.97 in, Width 3.62 in, Depth 4.41 in, Standards UL, CSA, IEC, EN, Frame / Series / Class / Code TeSys

Documents

Schneider Electric SEMI F47 Spec Sheet

Item Barcode

9390597
Iec Magnetic Contactor,110V
