AIRMASTER FAN

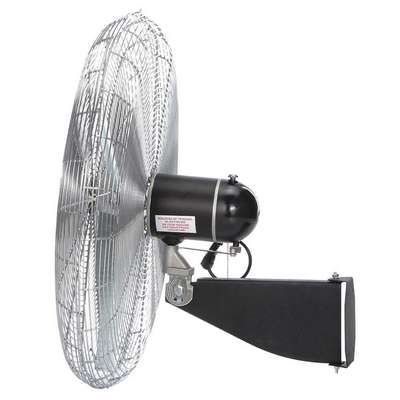

Airmaster Fan Standard-Duty Industrial Fan: 24 in Blade Dia, 2,820/4,020/5,520 cfm, 115 V AC, Wall

Hover over image to magnify
Air Circulator,24 In,5548 Cfm,
Air Circulator,24 In,5548 Cfm,

#939025-8 | Pkg Qty: 1

$701.68 pkg | $701.68 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Flow
2,820/4,020/5,520 cfm
Motor Type
Permanent Split Capacitor
Bearing Type
Ball
Mounting Location
Wall
Blade Diameter
24 in.
Mounting Location
Wall
Blade Material
Galvanized Steel
NEMA Plug Configuration
5-15P
Brand
AIRMASTER FAN
Number of Blades
3
Cord Length
15 ft.
Number of Conductors
3
Drive Type
Direct
Oscillating
Yes
Duty
Standard Duty
Package Quantity
1
Full Load Amps
3.2
Phase
1
Guard Material
Steel
Shaft Diameter
5/8 in.
Height
27 in.
Shipping Weight
57 lb.
Hz
60 Hz
Sound Level
71 dBA
Item
Industrial Fan
Standards
cULus
Mfr. Part Number
71565
Thermal Protection
Yes
Mobile/Stationary
Stationary
Voltage
115V AC
Motor Enclosure
Totally Enclosed Air Over
Watts
275
Motor Insulation
Class B
Width
27 in.
Motor RPM
1110/958/856
General
Air Velocity @ 10 Ft.
900 fpm
Fan Mounting Location
Wall
Air Velocity @ 20 Ft.
500 fpm
Includes
Bracket
Air Velocity @ 40 Ft.
300 fpm
Oscillation
Oscillating
Air Velocity @ 60 Ft.
200 fpm
Shaft Dia.
5/8 in
Air Velocity @ 80 Ft.
100 fpm
Wheeled Base
Stationary
Application
Air Circulation
Wire Guard Finish
Nickel Chrome
Environmental Applications
Industrial

Product Description

Standard-duty industrial wall-mount fans cool heavy manufacturing areas and other dusty or dirty environments where floor space is limited. Compared to light-duty industrial fans, these standard-duty fans are made of heavier-gauge materials, have a higher-horsepower motor that is totally enclosed to keep out debris, and feature more-robust motor bearings for a longer life.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
