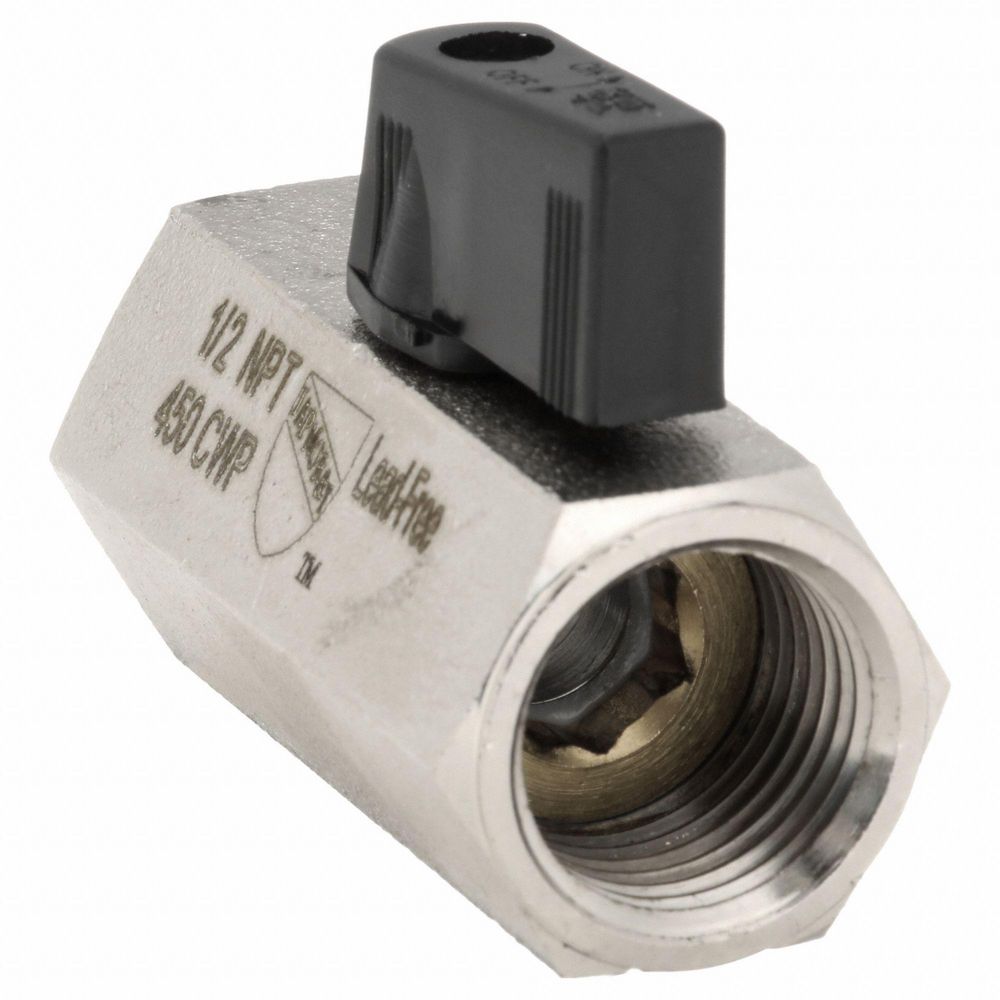

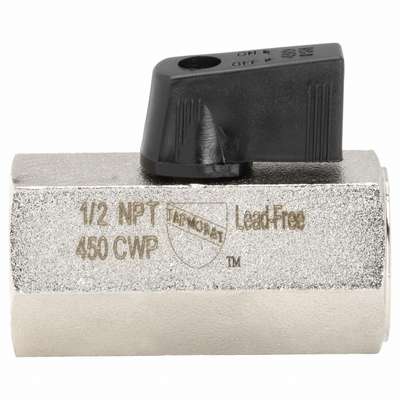

Mini Ball Valve: 1/2 in Pipe Size, Standard, 450 psi CWP Max. Pressure, -20° to 370°F

Hover over image to magnify
Mini Ball Valve,1/2 In Pipe,
PI_Asset_3737897
PI_Asset_3737898
Mini Ball Valve,1/2 In Pipe,
PI_Asset_3737897
PI_Asset_3737898
Double tap image to magnify
Mini Ball Valve,1/2 In Pipe,
38EF95-A0020-3_v2
38EF95-A3020-2_v2
Mini Ball Valve,1/2 In Pipe,
38EF95-A0020-3_v2
38EF95-A3020-2_v2

#938991-6Pkg Qty: 1

$19.06 pkg | $19.06 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 24.
|

Technical Specifications

Key Specifications
Ball Material
304 Stainless Steel
Mfr. Part Number
G-FBV-38NL
Body Material
Lead-Free Nickel Plated Brass
Package Quantity
1
Body Style
Inline
Pipe Size
1/2 in.
Brand
APPROVED SUPPLIER
Port
Standard
Compliance
NSF/ANSI 372
Seal Material
Viton
Connection Type
FNPT x FNPT
Seat Material
PTFE
Handle Material
Polycarbonate
Shipping Weight
.32 lb.
Handle Type
Wedge
Stem Material
Brass
Item
Mini Ball Valve
Stem Type
Blowout Proof
General
Ball Valve Product Group
Manual
Valve Basic Body Material
Brass
Max. Steam Pressure
150 psi WSP
Valve Structure
1-Piece
Temp. Range
-20 Degrees to 370 Degrees F

Product Description

Ideal for use in tight spaces and can be used with air, gas, and liquids. Certified for use in potable water applications.
