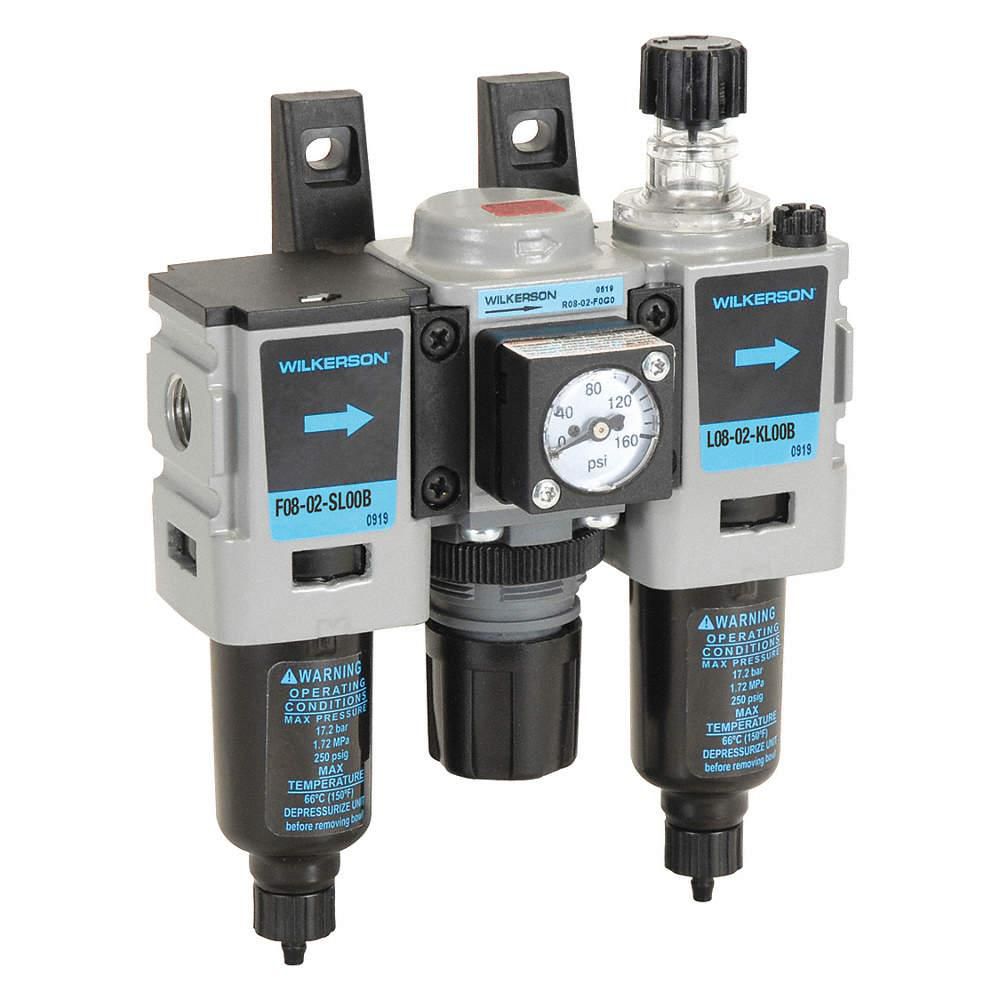

Filter/Regulator/Lubricator: 1/4 in NPT, 27 cfm, 250 psi Max Op Pressure, 5 micron

Name: Filter/Regulator/Lubricator: 1/4 in NPT, 27 cfm, 250 psi Max Op Pressure, 5 micron
Brand: WILKERSON
SKU: 9388623
Price: 172.11 USD
Availability: InStock

Hover over image to magnify

#938862-3 | Pkg Qty: 1

$172.11 pkg | $172.11 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Adjustment Knob

Non Rising

Mfr. Part Number

C08-02-FLG0B

Air Inlet Size

1/4 in.

Minimum Operating Temperature

14 deg. F

Body Material

Aluminum

Oil Capacity

0.6 oz.

Brand

WILKERSON

Overall Depth

3-3/16 in.

Drain Included

Yes

Overall Height

6-5/16 in.

Drain Type

Manual

Overall Width

4-3/4 in.

Filter Rating

5 micron

Package Quantity

ISO Class

Replaces

Wilkerson C08-02-FLG0-17

Item

Filter/Regulator/Lubricator

Seal Material

Nitrile

Maximum Flow Rate

27 cfm

Series

C08

Maximum Operating Temperature

150 deg. F

Shipping Weight

1.75 lb.

General

Adjustment Mechanism

Knob

Includes

Flush-Mount Pressure Gauge, Modular T-Bracket/Joiner Assembly

Adjustment Mechanism Material

Acetal

Lubricator Bowl Capacity

0.6 oz

Adjustment Range - Air Treatment

0 to 125 psi

Lubricator Type

Micro Mist

Air Inlet Type

NPT

Lubricator Type Included

Micro-Mist

Air Outlet Size

1/4 in

Max. Flow Range - Air Treatment

21 to 30 cfm

Air Outlet Type

NPT

Max. Incoming Pressure - Air Treatment

250 psi

Bowl Material - Air Treatment

Metal

Max. Pipe Run - Air Treatment

100 ft

Bowl Size - Air Treatment

0.6 oz

Maximum Regulated Pressure

125 psig

Connection Size - Air Treatment

1/4 in NPT

Minimum Regulated Pressure

0 psig

Filter Bowl Capacity

0.6 oz

Modular Connection

Filter Bowl Material

Metal

Pressure Drop

14.5 psig

Filter Element Material

Polyethylene

Pressure Gauge Included

Yes

For Fluid Type

Oil

Pressure Gauge Port Size

1/8 in

For Maximum Pipe Run

100 ft

Pressure Gauge Port Type

NPT

For Removal Of

Particles, Water

Regulator Type

Relieving

For Substance Type

Air

Sight Dome Included

Yes

Gauge Port Size

1/8 in NPT

Size - Air Treatment

Subcompact

Product Description

Filter/Regulator/Lubricator, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 27 cfm, Maximum Operating Pressure 250 psi, Filter Rating 5 micron, Filter Bowl Material Aluminum, Filter Bowl Capacity 0.6 oz, Lubricator Bowl Capacity 0.6 oz, Drain Type Manual, Overall Width 4 3/4 in, Series C08, Adjustment Mechanism Knob, Adjustment Mechanism Material Acetal, Air Outlet Size 1/4 in, Air Outlet Type NPT, Body Material Aluminum, Drain Included Yes, Filter Bowl Guard Material Aluminum
