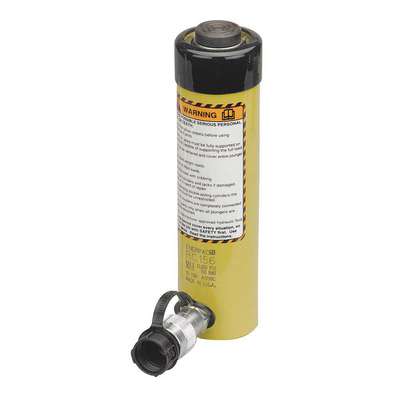

Hydraulic Ram: Single Acting, 15 ton Nominal Capacity, 6 in Nominal Stroke Lg, Steel, RC

Name: Hydraulic Ram: Single Acting, 15 ton Nominal Capacity, 6 in Nominal Stroke Lg, Steel, RC
Brand: ENERPAC
SKU: 9388291
Price: 1018.91 USD
Availability: InStock

Hover over image to magnify

#938829-1 | Pkg Qty: 1

$1,018.91 pkg | $1,018.91 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Body Material

Steel

Pack Quantity

Brand

ENERPAC

Series

Cylinder Type

General Purpose

Shipping Weight

15.1 lb.

Handle

Stroke Length

6 in.

Item

Hydraulic Ram

Thread Size

3/8"-16

Material of Construction

Steel

Type

General Purpose

Mfr. Part Number

RC156

Weight Capacity

15 tons

Nominal Capacity

15 ton

General

Base Bolt Circle Dia.

1.88 in

Nominal Stroke Length

6 in

Center Hole Dia.

1 5/8 in

Oil Capacity Push

18.85 cu in

Collar Thread Size

2-3/4"-16

Outside Dia.

2.75 in

Effective Push Area

3.14 sq in

Plunger Dia.

1.63 in

Extended Height

16.56 in

Plunger Thread Size

1"-8

Includes

Coupler, Dust Cap

Retracted Height

10.69 in

Max. Pressure

10,000 psi

Single Acting/Double Acting

Single Acting

Max. Push Capacity

15 ton

Product Description

General purpose rams attach to a hydraulic pump to lift heavy loads with minimal effort. They have a maximum working pressure of 10,000 psi.

Standard hydraulic rams are used in general purpose applications for one-direction lifting and supporting. They are often used with fixtures to support tasks such as crimping, pressing, and punching. They can also be used standalone for lifting heavy objects.
