SQUARE D

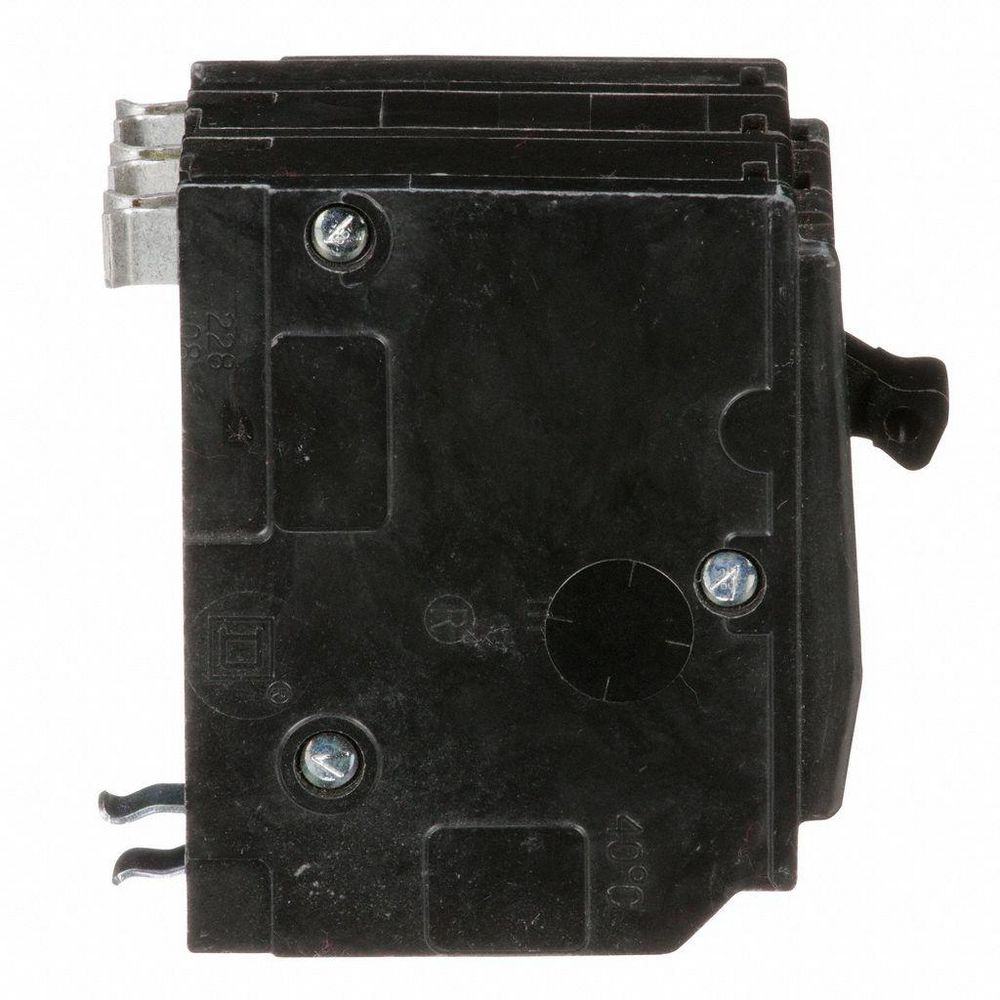

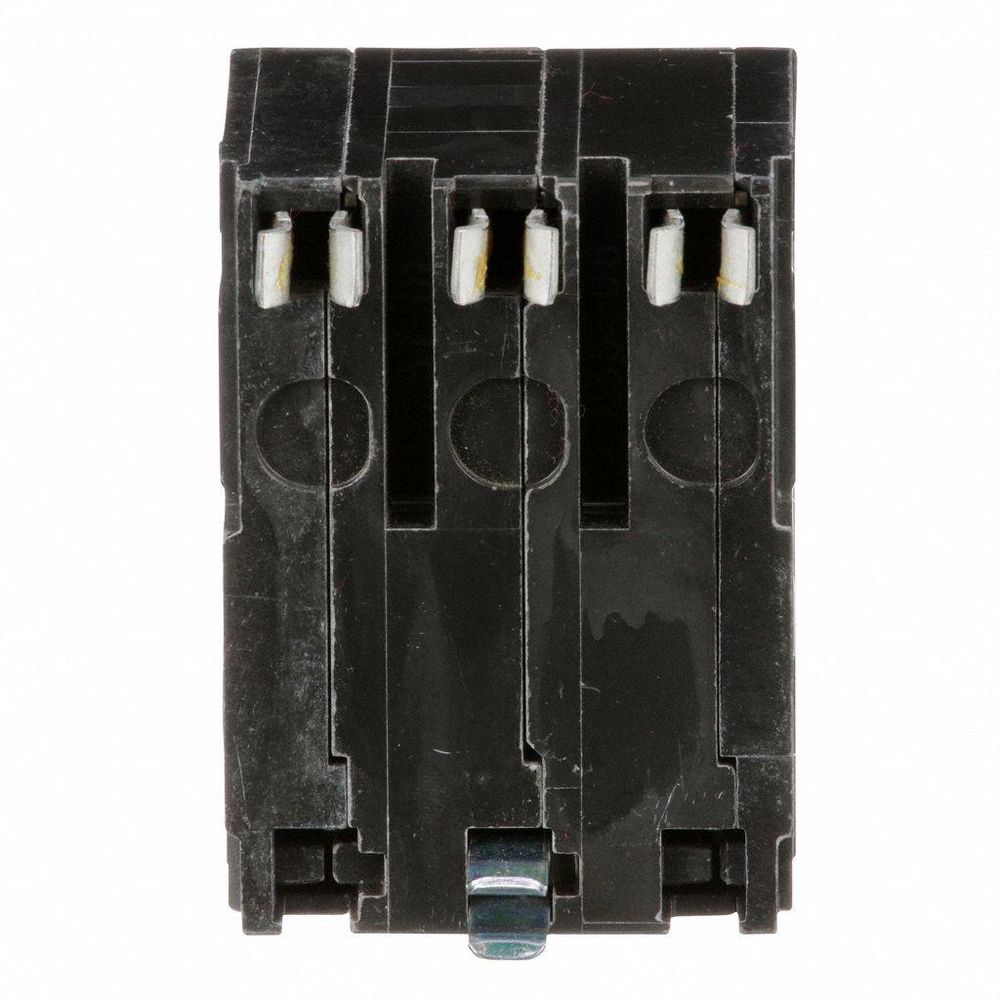

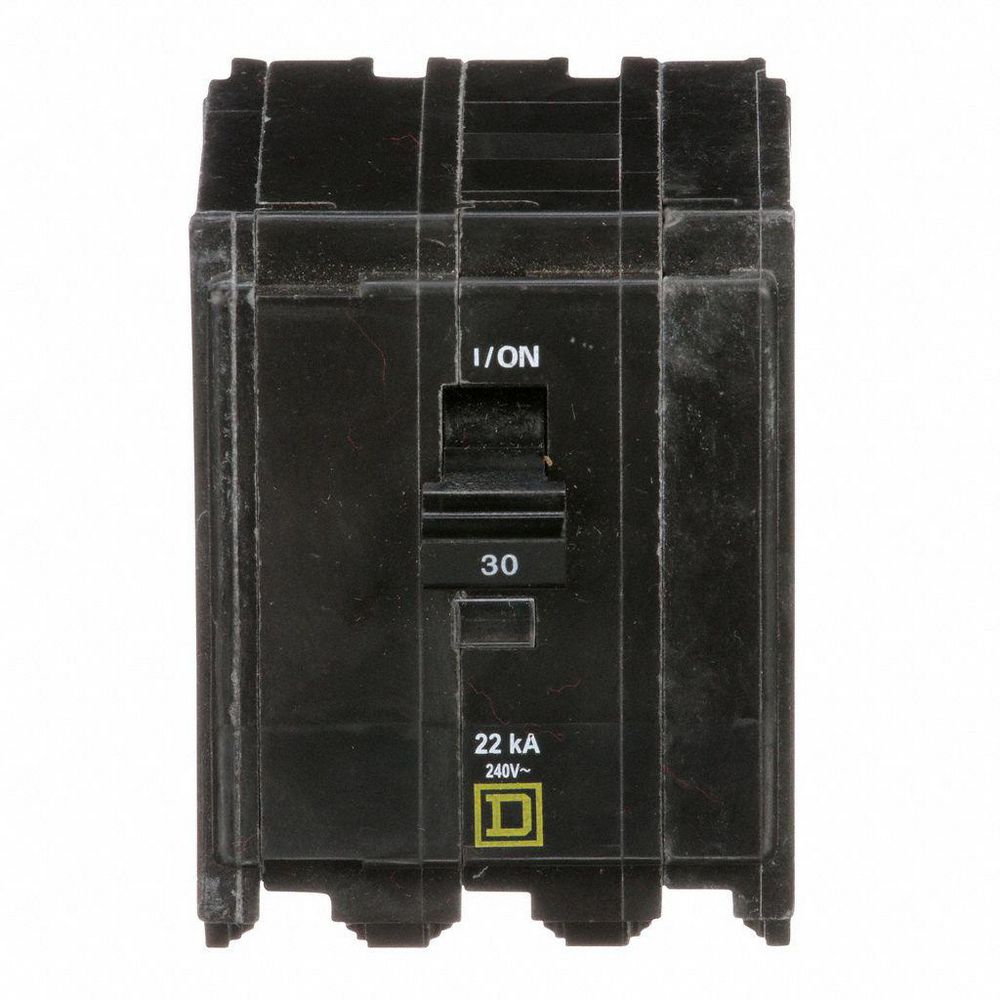

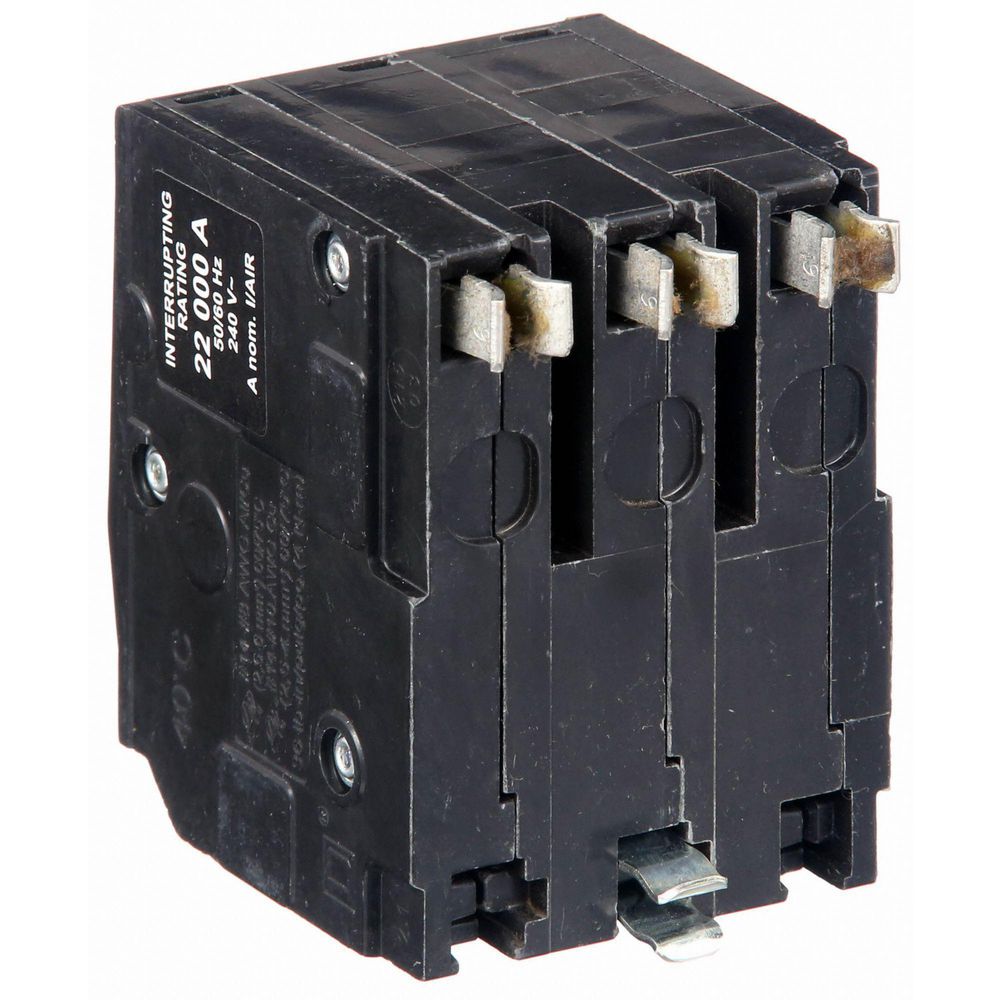

Square D Miniature Circuit Breaker: 30 A, 120/240V AC, Three Phase, 22kA at 120/240V AC

Hover over image to magnify
Circuit Breaker,30A,Plug In,
PI_Asset_1984280
PI_Asset_1988356
PI_Asset_1991428
PI_Asset_1992393
PI_Asset_1993452
Circuit Breaker,30A,Plug In,
PI_Asset_1984280
PI_Asset_1988356
PI_Asset_1991428
PI_Asset_1992393
PI_Asset_1993452
Double tap image to magnify
Circuit Breaker,30A,Plug In,
1D325_1
1D325_2
1D325_3
1D325_4
1D325_5
Circuit Breaker,30A,Plug In,
1D325_1
1D325_2
1D325_3
1D325_4
1D325_5

#938618-3Pkg Qty: 1

$429.26 pkg | $429.26 ea

In Stock

Shipping to 43085
Expected to arrive Wed. Apr 02.
|

Technical Specifications

Key Specifications
AC Voltage Rating
120/240VAC
Maximum Air Rating
22kA at 120/240VAC
Air @ 120 VAC
22kA
Maximum Wire Size
8 AWG
Air @ 240 VAC
22kA
Mfr. Part Number
QO330VH
Amperage
30 A
Minimum Wire Size
14 AWG
Amps
30 A
Number of Poles
3
Brand
SQUARE D
Package Quantity
1
Circuit Breaker Type
High Interrupting Capacity
Panelboard Mounting
Plug-In
DC Voltage Rating
Not Rated
Phase
Three
Depth
2.91 in.
Phase Connection
All
For Use With
QO Load Centers and NQ Panelboards
Series
QO
Frame Size
100A/QO
Shipping Weight
.79 lb.
High Amp Trip Setting
40-1/2
Terminal Connection
Pressure Plate
Instantaneous Trip
Fixed
Type
Panelboard Mount
Item
Miniature Circuit Breaker
Voltage
240VAC
Length
3 in.
Width
2-1/4 in.
General
Circuit Breaker Actuator
Paddle
Circuit Breaker Mounting Style
Plug In

Product Description

These QO series miniature circuit breakers plug into place in NQOD and NQ panelboards and QO load centers without requiring DIN rail or bolts, so they're easier to install than bolt-on and unit-mount breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.

Expertly Selected Product Pairings

Padlock Attachment
$12.77 pkg | $12.77 ea
Item: 910003 | Pkg Qty: 1
Padlock Attachment
$14.70 pkg | $14.70 ea
Item: 910003-3 | Pkg Qty: 1
Handle Clamp,Direct,125A,0.
$11.80 pkg | $11.80 ea
Item: 917579-5 | Pkg Qty: 1

Documents

QO and QOB Miniature Breakers Catalog
