REELCRAFT

Reelcraft 45 ft. Extension Cord Reel; Industrial Gauge; 120 VAC; Red Reel Color

Hover over image to magnify
Cord Reel,45ft,12 Awg,Gfci,
PI_Asset_2106897
Cord Reel,45ft,12 Awg,Gfci,
PI_Asset_2106897

#938606-5 | Pkg Qty: 1

$877.20 pkg | $877.20 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
REELCRAFT
NEMA Plug Configuration
5-15P
Cord Color
Black
NEMA Receptacle Configuration
5-15R
Cord Ending NEMA Configuration
5-15R
Number of Conductors
3
Cord Included
Yes
Number of Outlets
2
Cord Length
45 ft.
Overall Depth
9-3/8 in.
Cord Type
SJEOW
Overall Height
13-1/4 in.
Depth
9-3/8 in.
Overall Width
12-5/8 in.
Description/Special Features
Duplex with GFCI
Package Quantity
1
Enclosed Reel
No
Reel Color
Red
Enclosure Rating
Not Rated
Reel Material
Steel
Feeder Cord Ending
Grounding Plug
Reel Mounting
Bench, Ceiling, Wall
Feeder Cord Ending NEMA Configuration
5-15P
Shipping Weight
35.5 lb.
Gauge/Conductor
12/3
Slip Ring Rating
15
Grade
Industrial
Type
Industrial, Automatic Retracting
Height
13-1/4 in.
Voltage
120 VAC
Item
Extension Cord Reel
Watts
1875 W
Mfr. Part Number
L 4545 123 7SB
Width
12-5/8 in.
NEC Cord Designation
SJEOOW
Wire Size
12 AWG
NEMA Connector
5-15R
General
Cord Length - Ext. Cords and Outlet Strips
45 ft.
Retractable Cord Ending
Duplex GFCI Box Receptacle
Feeder Cord Ending Configuration
NEMA 5-15P
Retractable Cord Ending Configuration
NEMA 5-15R
Gauge/Conductor - Ext. Cords and Outlet Strips
12/3
Retractable Cord Length
45 ft
Grade - Ext. Cords and Outlet Strips
Heavy Industrial
Standards
CSA, UL
Includes
Swing Bracket
Temp. Range
0° to 150°F
Includes Cord
Yes
Temp. Rating
0° to 150°F
Indoor / Outdoor
Indoor
Tension Method
Ratchet Lock
Location
Indoor
Trade Designation
SJEOOW
Max. Amps - Ext. Cords and Outlet Strips
15.0
Voltage - Ext. Cords and Outlet Strips
120VAC
NEC Cord Designation - Ext. Cords and Outlet Strips
SJEOOW
Winding Method
Spring Retraction

Product Description

Self-retracting cord reels have a spring mechanism that automatically winds the cord back on the reel, making them easier to use than hand-winding cord reels. A stop, or ratchet, holds the cord at the desired length after it's pulled out for use. A quick tug on the cord disengages the stop, causing the spring to fully retract the cord. These reels provide access and storage of extension cords while protecting the cord from wear, tangling, and kinking.

Standard cord reels are spools that hold extension cords to provide access and storage while protecting them from tangling, kinking, and other damage. The cord can be extended to exactly the length needed to power equipment located at a distance from a power source. Self-retracting and motor-driven cord reels automatically wind extended cord back on the reel, while hand-winding cord reels have a handle or knob for winding the cord manually. These cords can be mounted out of the way in a central location, such as on a wall or ceiling, to keep a workspace organized and help reduce tripping hazards. They are commonly used in retail, commercial, and manufacturing applications, including pressure washing, landscaping and ground maintenance, and service garages.

Expertly Selected Product Pairings

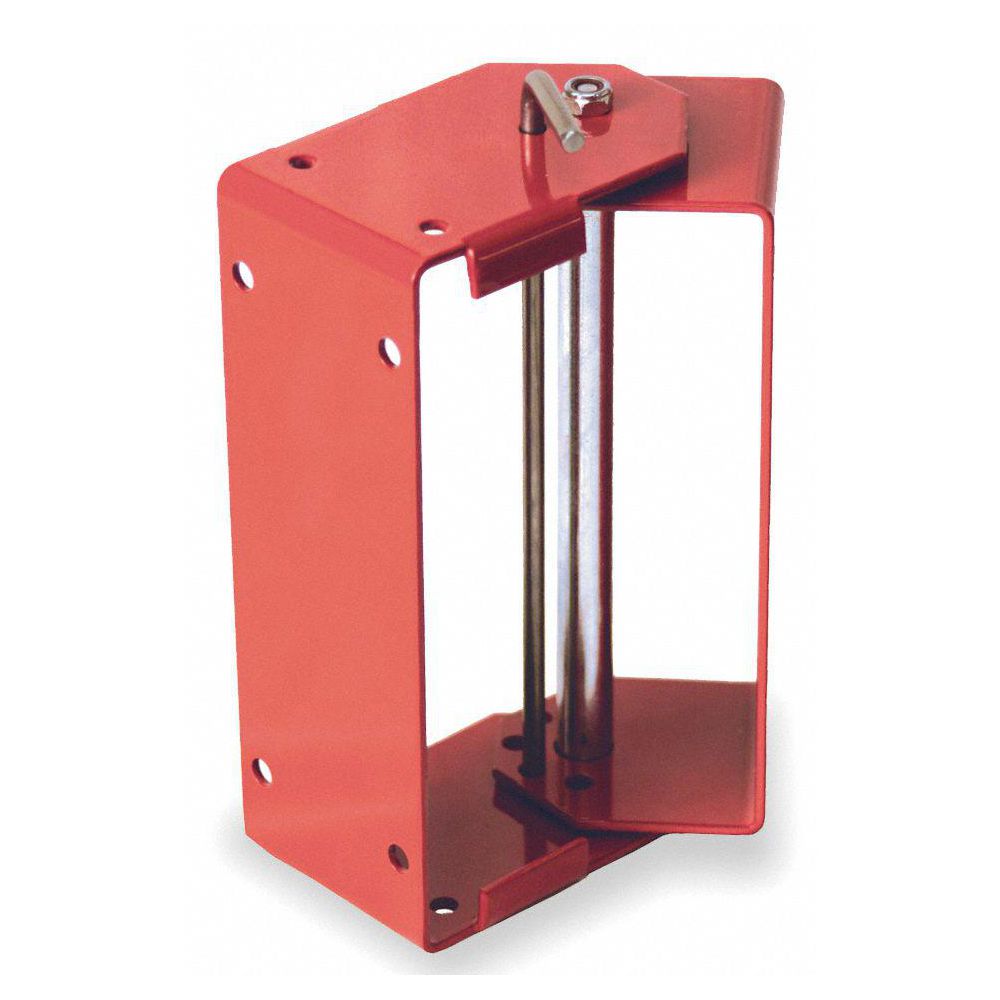

Bracket,Reel,Mtng,Pivot,Red
