BUSSMANN

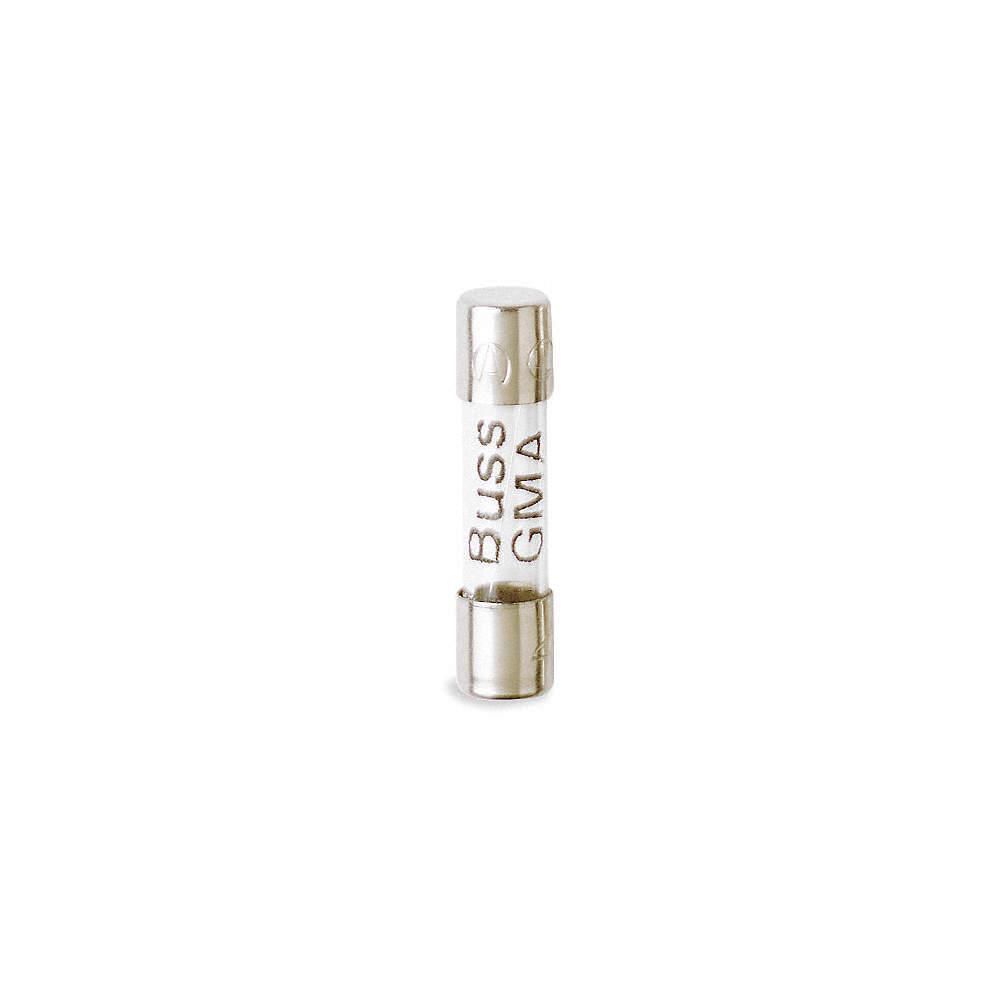

Bussmann Fuse: 2 A, 250V AC, 10kA at 125V AC/100A at 250V AC, 20mm L x 5mm dia Fuse Size, 5 PK

Hover over image to magnify
Fuse,2A,Glass,Gma Series,PK5
Fuse,2A,Glass,Gma Series,PK5

#938479-6 | Pkg Qty: 5

$14.40 pkg | $2.88 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Voltage Rating
250 VAC
In Line Fuseholder
E
Amperage
2 A
Indicating
Yes
Body Material
Glass
Indicating / Nonindicating
Indicating
Body Style
Cylindrical
Interrupt Rating
100A at 250 VAC, 10kA at 125 VAC
Brand
BUSSMANN
Item
Fuse
Class
Small Dimension
Length
20 mm
DC Voltage Rating
Not Rated
Mfr. Part Number
GMA-2-R
Diameter
5 mm
Package Quantity
5
Element
Single
Rejection / Nonrejection
Nonrejection
Functionally Equal To
Littelfuse 235, Mersen/Ferraz Shawmut GGM
Series
GMA
Fuse Amps
2A
Shipping Weight
.03 lb.
Fuse Holder Code
E
Speed
Fast Acting
Fuse Interrupt Rating
100A at 250 VAC, 10kA at 125 VAC
Type
Electronic
Fuse Speed
Fast Acting
Voltage Rating
250 VAC
Fuse Voltage Rating
250 VAC
General
Compatible Fuse Block Series
HTB
Fuse Size
20mm L x 5mm dia
Equivalent Series
235, GGM, GMA
Standards
CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
Fits Fuse Block Style
Nonrejection
Visual Indication
Glass Fuse

Product Description

These cartridge-style, fast-acting glass fuses open within seconds of being exposed to overloads and short circuits. They're commonly used in instrument panels, small appliance circuits, and automotive accessories. Also called fast-blow glass fuses, they are highly sensitive to changes in current flow and don't tolerate temporary overload currents or power surges.

Glass fuses provide overcurrent protection for low-current circuits in appliances, electronics circuit boards, and lighting fixtures. They typically have a voltage rating of 300VAC or less and are used for applications where they won't be exposed to high heat that could shatter the glass. Their small, cylindrical body is see-through for checking whether the fuse wire is intact or has melted.
