SQUARE D

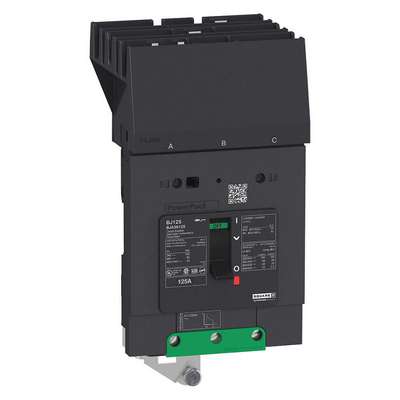

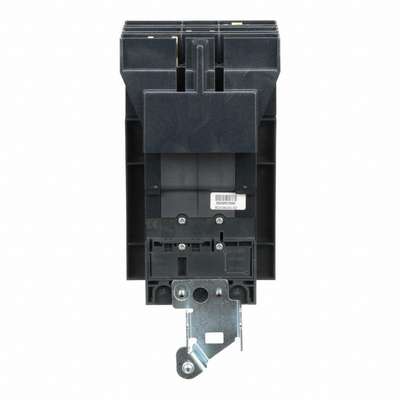

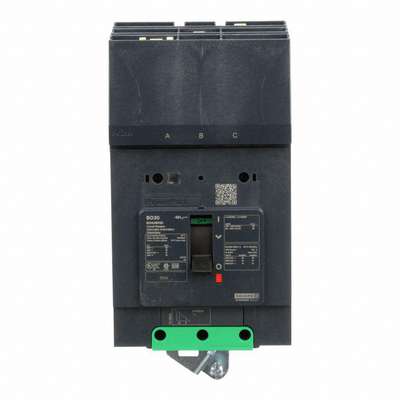

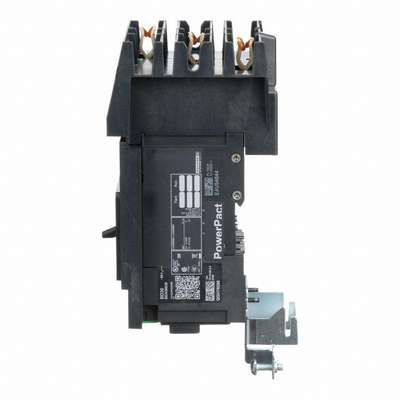

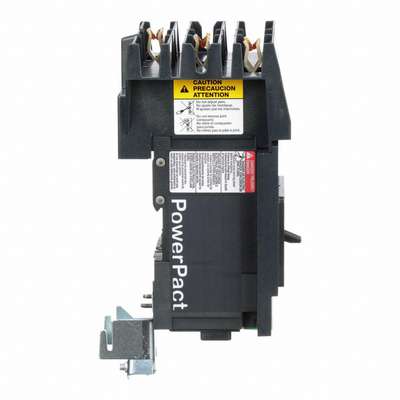

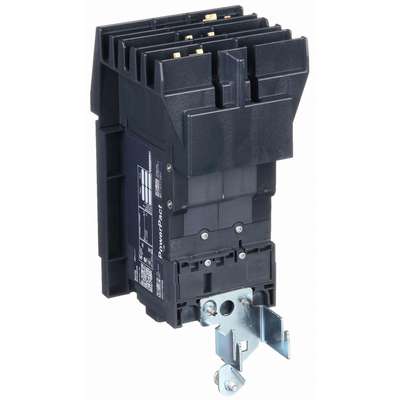

Square D Molded Case Circuit Breaker, 30 A Amps, Number of Poles 3, Series BDA

Hover over image to magnify
Circuit Breaker,30A,3P,525VAC,
PI_Asset_1984798
PI_Asset_1988793
PI_Asset_1991914
PI_Asset_1992872
PI_Asset_1993907
Circuit Breaker,30A,3P,525VAC,
PI_Asset_1984798
PI_Asset_1988793
PI_Asset_1991914
PI_Asset_1992872
PI_Asset_1993907

#938307-9 | Pkg Qty: 1

$1,039.36 pkg | $1,039.36 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Voltage Rating
525VAC
Maximum Wire Size
2 AWG
Amperage
30 A
Mfr. Part Number
BDA36030
Amps
30 A
Minimum Wire Size
2 AWG
Brand
SQUARE D
Mounting
I-Line
Circuit Breaker Type
Standard
Number of Poles
3
DC Voltage Rating
Not Rated
Package Quantity
1
Depth
3-1/2 in.
Phase
Three
For Use With
Electrical Distribution Equipment, Industrial Control Panels
Phase Connection
ABC
Frame Size
125A/BD
Series
BDA
Height
5.39 in.
Shipping Weight
3.79 lb.
Instantaneous Trip
Fixed
Terminal Connection
Al Mechanical Lug OFF End, I-Line ON End
Item
Molded Case Circuit Breaker
Trip Type
Thermal Magnetic
Maximum Air Rating
25kA at 277/408VAC
Width
3.19 in.
General
Circuit Breaker Actuator
Toggle
Min. Operating Temp.
-13°F
Circuit Breaker Mounting Style
I-Line
Standards
CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
Max. Operating Temp.
158°F

Product Description

B-frame Square D molded case circuit breakers are rated up to 125A and interrupt excessive current flows to protect devices from electrical damage. They're used in industrial control panels, commercial OEM, electrical distribution equipment, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.

Item Barcode
9383079
Circuit Breaker,30A,3P,525VAC,
