Mersen Fuse Block, Industrial, 61 to 100 A, Fuse UL Class T, 600V AC/DC

Hover over image to magnify

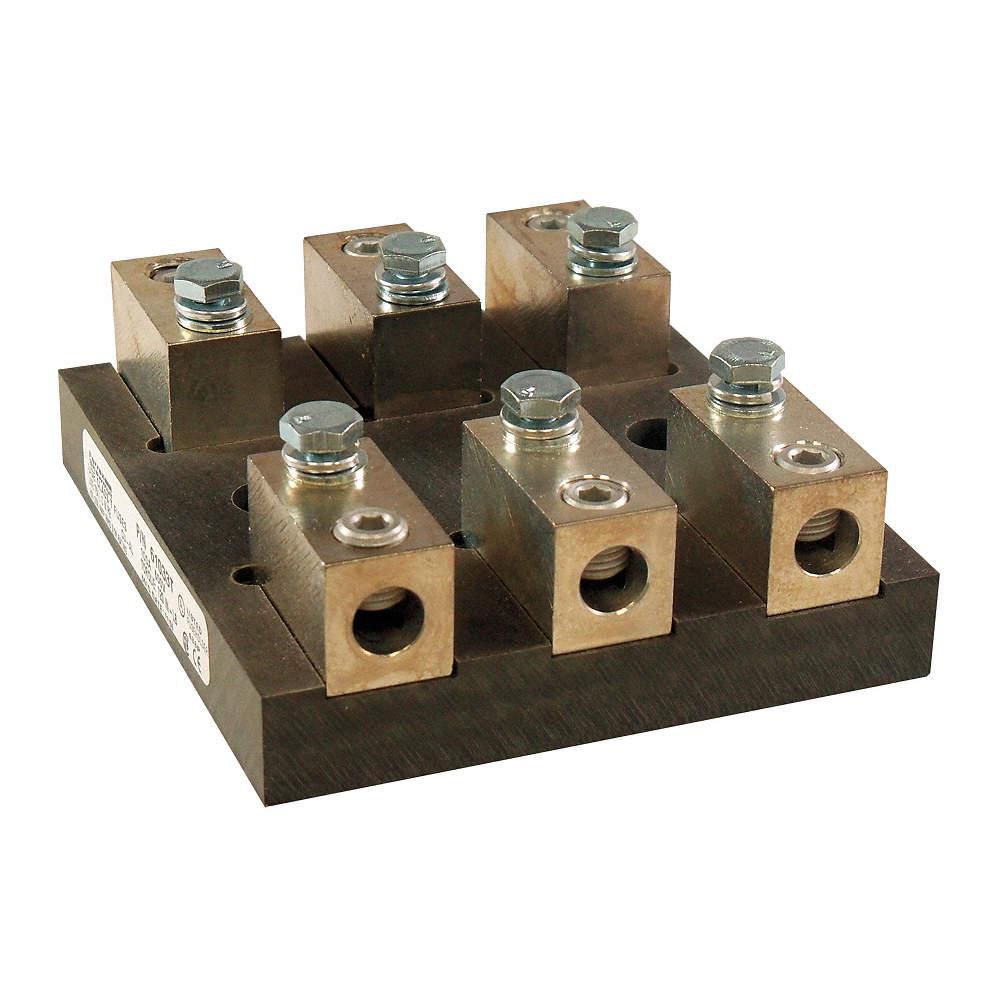

Fuse Block,61 To 100A,T,3 Pole
Fuse Block,61 To 100A,T,3 Pole
Double tap image to magnify
Fuse Block,61 To 100A,T,3 Pole
Fuse Block,61 To 100A,T,3 Pole

#938236-2Pkg Qty: 1

$138.89 pkg | $138.89 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 08.
|

Technical Specifications

Key Specifications
AC Voltage Rating
600 VAC
Fuse Length
2-15/16 in.
Amp Range of Fuse Block or Holder
0 to 100 A
Fuse Type
Industrial
Amps AC
100
Fuse UL Class
T
Blown Fuse Indicator
No
Height
1.95 in.
Body Material
Phenolic
Indicating / Nonindicating
Nonindicating
Brand
MERSEN
Length
4.78 in.
DC Voltage Rating
600 VDC
Mfr. Part Number
61033T
Depth
1.95 in.
Mounting Style
Bolt-Down
Diameter
1-1/16 in.
Number of Poles
3
For Fuse Series
A6T
Package Quantity
1
For Fuse Size
2-15/16 in. L x 13/16 in. dia, 2-61/64 in. L x 3/4 in. dia
Series
6TFB
Fuse Block Design
Open
Shipping Weight
1.4 lb.
Fuse Block/Fuse Holder Type
Fuse Block
Voltage Rating
600 VAC/DC
Fuse Block/Holder AC Voltage Rating
600 VAC
Width
4.38 in.
Fuse Block/Holder DC Voltage Rating
600 VDC
Wire Range
6 to 2/0 AWG
Fuse Dimensions
4-25/32 in.L x 2 in.H x 4-3/8 in.W
Wire Size
6 to 2/0 AWG
General
Amp Range
61 to 100 A
Fuse Block or Holder DC Voltage Rating
600VDC
Compatible Fuse Series
A6T, JJS, JLLS, LPT
Spring Reinforced Clip
Yes
Features
Unique Adder Block Design
Standards
CSA Certified
Fuse Block or Holder AC Voltage Rating
600VAC

Product Description

These fuse blocks are compatible with UL Class T fuses for overcurrent protection in electrical feeders and branch circuits where there's minimal space for installation.

UL Class and midget fuse blocks accept fuses sized and rated according to UL Class or midget specifications. They have an open top for access to fuses, clips or studs for securing fuses within the block, and terminals for connecting to the circuit. These fuse blocks are either bolted down or mounted on a DIN rail to hold them in place. They're commonly paired with fuse box covers to enclose the fuses and prevent accidental contact. They are nonindicating, so there's no visual signal when a fuse is blown.
