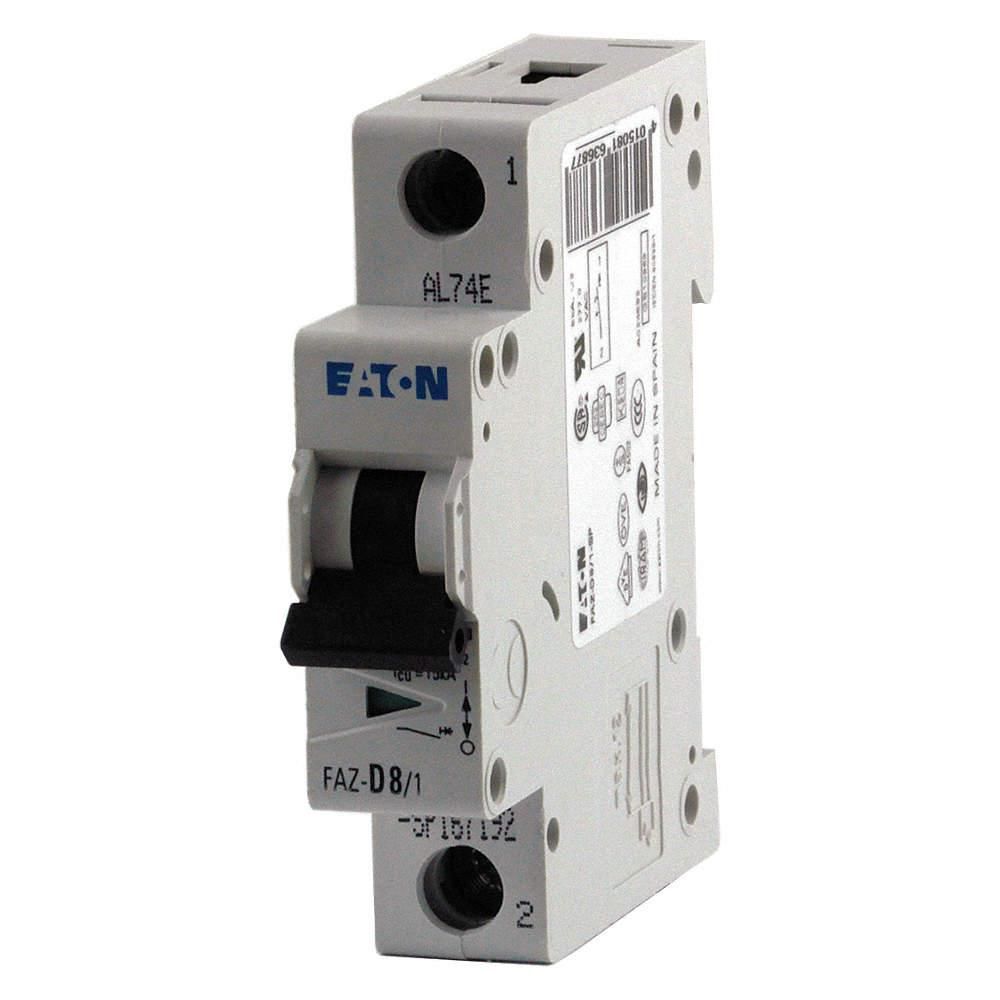

Eaton IEC Supplementary Protector, Amps 10 A, AC Voltage Rating 277/480V AC, DC Voltage Rating 48V DC

Hover over image to magnify
Iec Supp Protector,10A,277/
PI_Asset_1981728
Iec Supp Protector,10A,277/
PI_Asset_1981728

#938230-2Pkg Qty: 1

$74.03 pkg | $74.03 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Apr 17.
|

Technical Specifications

Key Specifications
AC Voltage Rating
277/480VAC
Maximum Air Rating
15kA at 240/415VAC
Air @ 120 VAC
10kA
Maximum DC Voltage
48VDC
Air @ 125 VDC
10kA
Maximum Wire Size
4 AWG
Air @ 240 VAC
10kA
Mfr. Part Number
FAZ-D10/1-SP
Air @ 277 VAC
10kA
Minimum Wire Size
18 AWG
Air @ 48 VDC
10kA
Mounting
DIN Rail
Air @ 480 VAC
10kA
Mounting Type
Din Rail
Air @ 600 VAC
10kA
Number of Poles
1
Air @ 65 VDC
10kA
Package Quantity
1
Amps
10 A
Panelboard Mounting
Din Rail
Brand
EATON
Phase
1
Circuit Breaker Type
Miniature UL 1077
Phase Connection
Lug
Curve Type
D
Series
FAZ
DC Voltage Rating
48VDC
Shipping Weight
.25 lb.
Depth
1 in.
Standards
CSA C22.2 No. 235, IEC 60947-2, UL 1077
Frame Size
63 A
Switch Type
Lever
High Amp Trip Setting
10
Terminal Connection
Lug
Instantaneous Trip
Fixed
Trip Type
Thermal Magnetic
Item
IEC Supplementary Protector
Type
DIN Rail Mount
Length
1 in.
Voltage
277VAC
Low Amp Trip Setting
10
Width
1 in.
General
AIR @ 120VAC
10kA
AIR @ 600VAC
10kA
AIR @ 125VDC
10kA
AIR @ 65VDC
10kA
AIR @ 240VAC
10kA
Application
Appliances and Some Motors; Motors, Business Equipment, Control Circuits and Coils; PLC Wiring, Industrial, Lighting, Pilot Devices, Small Transformers, Transformers and Power Supplies
AIR @ 277VAC
10kA
Circuit Breaker Actuator
Toggle
AIR @ 480VAC
10.0kA
Circuit Breaker Mounting Style
DIN Rail
AIR @ 48VDC
10kA
Meets UL Type
UL 1077

Product Description

D-curve one-pole supplementary protectors trip instantaneously when the current load exceeds ten to 20 times the rating of the device. These breakers mount on standard 35mm DIN rail and are UL1077 listed for use as supplementary protection from damage caused by overcurrents and short circuits. They're used when protection against high-level short circuit faults is desired, such as in motors, transformers, and power supplies.
