MILWAUKEE

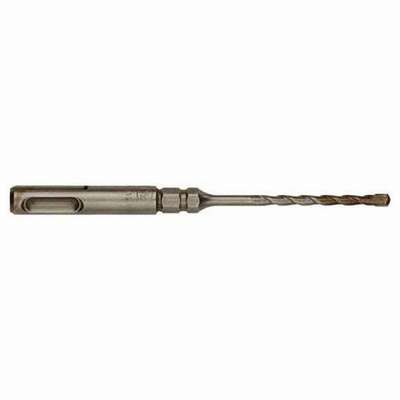

Milwaukee SDS Plus Installation Bit and Sleeve, 5/32 in Drill Bit Size, 7 in Overall Length, 4 in Max Drilling Depth, Carbide Tipped

Hover over image to magnify
Hammer Drill Bit,SDS Plus,5/
PI_Asset_1980385
Hammer Drill Bit,SDS Plus,5/
PI_Asset_1980385

#938164-1 | Pkg Qty: 1

$11.94 pkg | $11.94 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
MILWAUKEE
Maximum Drilling Depth
4 in.
Decimal Equivalent
0.1563
Mfr. Part Number
48-20-7091
Drill Bit Finish
Bright (Uncoated)
Number of Pieces
1
Drill Bit Material
Carbide Tipped
Overall Length
7 in.
Drill Bit Size
5/32 in.
Package Quantity
1
Drilling Length
4 in.
Shank Diameter
25/64 in.
Finish
Bright (Uncoated)
Shank Shape
SDS Plus
For Tool Type
Rotary Hammer
Shank Size
25/64 in.
Impact Rated
Yes
Shank Type
SDS Plus
Item
Installation Bit and Sleeve
Shipping Weight
.12 lb.
General
Application
For Concrete And Masonry Drilling
Measurement System
Fractional Inch
Finish - Machining
Bright (Uncoated)
Number of Cutter Heads
2
For Use With
SDS+ Hammer
Shank Type - Machining
SDS Plus
Material - Machining
Carbide Tipped

Product Description

The SDS-Plus shank on these concrete screw-installation bits prevents them from slipping in high-torque drilling applications when creating holes for setting compatible self-tapping concrete and masonry anchor screws. They are also known as screw-anchor bits or concrete screw drill bits, and they come with a drill sleeve that slides over the bits to stabilize them during drilling. These bits install into compatible rotary drills or rotary hammer drills with SDS-Plus chucks, and they can be changed in the chucks with one hand. SDS-Plus chucks have spring-loaded balls that fit into the grooves on the bits' shanks to hold the bits in place in the chucks.
