TELEMECANIQUE SENSORS

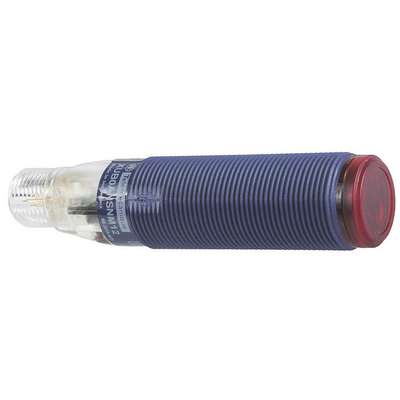

Telemecanique Sensors 76 mm Diffuse Cylindrical Photoelectric Sensor; Max. Sensing Distance: 800 mm
Hover over image to magnify
#938163-7 | Pkg Qty: 1
$120.06 pkg | $120.06 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
PBT
NEMA Rating
Not Rated
Brand
TELEMECANIQUE SENSORS
Operating Frequency
500 Hz
Cable Connection
M12
Output Mode
Light Operate
Circuit Type
NPN
Package Quantity
1
Contact Form
NO
Power Requirement
12 to 24 VDC
Depth
0.71 in.
Response Time
1 msec
Diameter
18mm
Sensing Method
Diffuse
Electrical Connection
M12 Connector
Shape
Cylindrical
IP Rating
67
Shipping Weight
.1 lb.
Length
2.99 in.
Type
Plastic, Proximity-Diffuse Adjustable
Light Source
Infrared LED
Voltage Range
12-24 VDC
Mfr. Part Number
XUB5ANANM12
Width
1.73 in.
General
Circuit Type - Cylindrical Photoelectric Sensor
NPN
Operating Mode - Photoelectric Sensor
Light On
Current Consumption
35 mA (No-Load)
Operating Temp. Range
-25° to 55°C
Diameter - Cylindrical Photoelectric Sensor
18 mm
Operation Mode
Light On
Electrical Connection - Cylindrical Photoelectric Sensor
4-Pin M12 Male Connector
Power Requirement - Cylindrical Photoelectric Sensor
12 to 24V DC
Features
Overload, PMMA Lens, Short Circuit and Reverse Polarity Protection
Sensing Method - Cylindrical Photoelectric Sensor
Diffuse
Length - Cylindrical Photoelectric Sensor
76 mm
Standards
CCC, CE Approval, CSA Certified, RoHs Approval
Max. Sensing Distance - Cylindrical Photoelectric Sensor
800 mm
Style - Cylindrical Photoelectric Sensor
Cylindrical Photoelectric Sensor
Product Description
This photoelectric sensor features a diffuse sensing method, short circuit and reverse polarity protection, and a PMMA lens.
Item Barcode
Photoelectric Sensor,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 32J338 | |
 | UNSPSC CODES | 39121528 | |
 | VMRS (ATA) CODES | 053-006-009 |
