OMRON STI

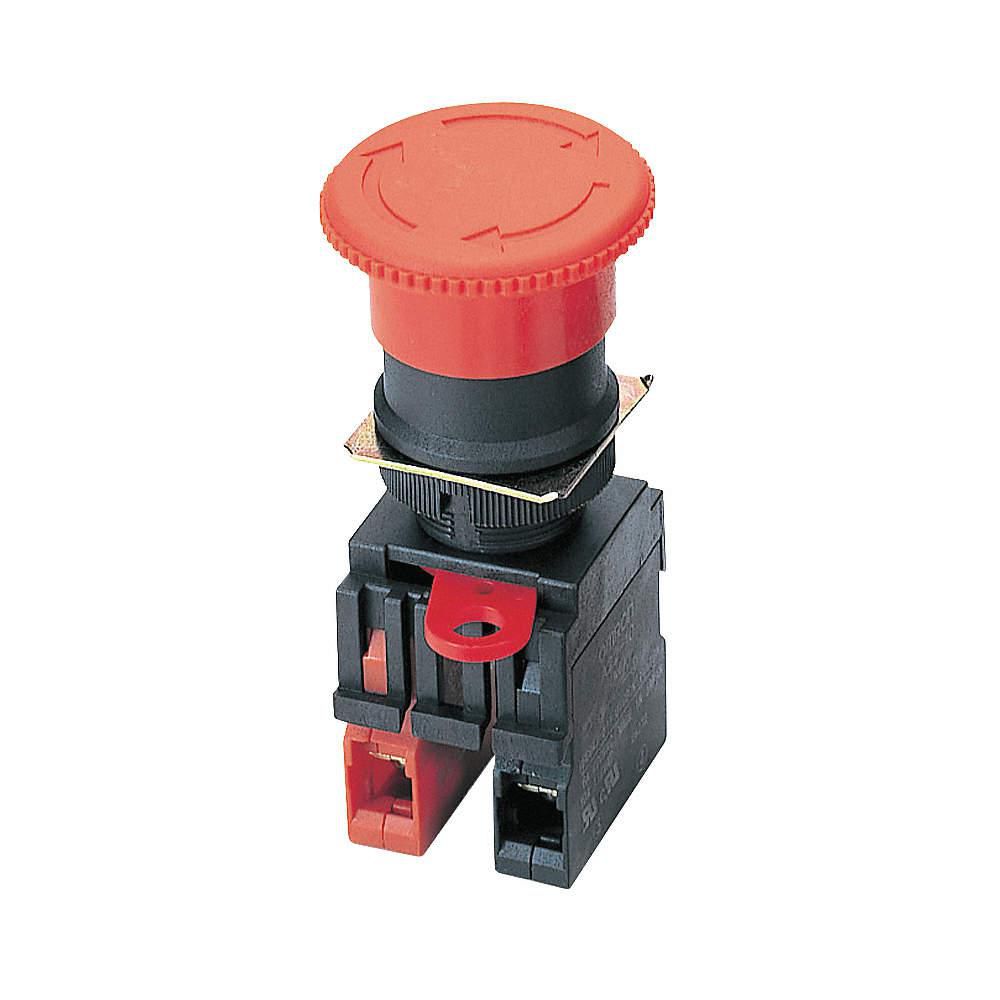

Omron Sti Illuminated Emergency StoPush Button, 22 mm, Maintained Push-Lock/Turn-Reset

Hover over image to magnify
E-Stop Push Button,Illum,22mm,
E-Stop Push Button,Illum,22mm,
Double tap image to magnify
E-Stop Push Button,Illum,22mm,
E-Stop Push Button,Illum,22mm,

#938138-8Pkg Qty: 1

$117.03 pkg | $117.03 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Apr 14.
|

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<p>Emergency Stop Switches, Enclosure, and Legend Plates Switches</p> <ul> <li>Plastic construction Red operator Switches allow direct disconnect of circuit contacts in emergency situations. Easy to spot, access, and use. On/Off operation, push to lock, turn to reset. Safety lock mechanism prevents operating errors; finger protection mechanism for added safety. Easy mounting and removal of switch blocks, using a lever. Oil-resistant to IP65. UL Listed and CE Certified.</li> </ul>

Emergency Stop Switches, Enclosure, and Legend Plates Switches

  • Plastic construction Red operator Switches allow direct disconnect of circuit contacts in emergency situations. Easy to spot, access, and use. On/Off operation, push to lock, turn to reset. Safety lock mechanism prevents operating errors; finger protection mechanism for added safety. Easy mounting and removal of switch blocks, using a lever. Oil-resistant to IP65. UL Listed and CE Certified.
Pkg Qty 1 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Key Specifications
Action
Maintained Push-Lock/Turn-Reset
Lamp Module Voltage
24 VAC/DC
Amps
10A at 110 VAC, 6A at 220 VAC
Lamp Type
LED
Basic Material
Plastic
Lamp Voltage
24 VAC/DC
Bezel
Plastic
Material of Construction
Plastic
Brand
OMRON STI
Mfr. Part Number
A22ELM24A02
Color Family
Red
Package Quantity
1
Contact Form
1NO/2NC
Shipping Weight
.2 lb.
Contact Rating
10 A @ 110 VAC, 6 A @ 220 VAC
Size
22 mm
Contact Type
DPST-NC
Terminal Connection
Screw Clamp
Head Material
Plastic
Type
Lighted, 22 mm Mount
IP Rating
65
Type of Operator
60 mm Mushroom Head
Illuminated / Non-Illuminated
Illuminated
Voltage
24 VAC/DC
Lamp Module Type
Full Voltage
General
Replacement Lamp
Mfr. No. A16-24DR or A16-24DSR
Standards
CE, UL

Product Description

Emergency Stop Switches, Enclosure, and Legend Plates Switches

  • Plastic construction Red operator Switches allow direct disconnect of circuit contacts in emergency situations. Easy to spot, access, and use. On/Off operation, push to lock, turn to reset. Safety lock mechanism prevents operating errors; finger protection mechanism for added safety. Easy mounting and removal of switch blocks, using a lever. Oil-resistant to IP65. UL Listed and CE Certified.
