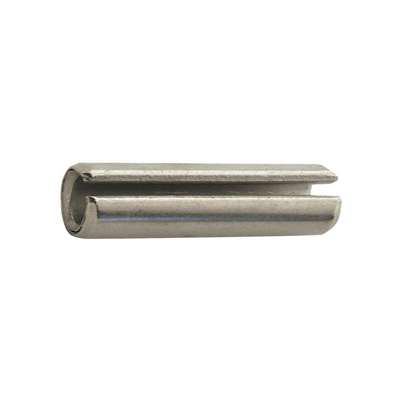

Spring Pin: Slotted, Stainless Steel, 302, Passivated, 7/32 in Outside Dia., 1 in Fastener Lg, 50 PK

Hover over image to magnify
Spring Pin,Slot,7/32x1 In L,
Spring Pin,Slot,7/32x1 In L,
Double tap image to magnify
Spring Pin,Slot,7/32x1 In L,
Spring Pin,Slot,7/32x1 In L,

#938120-4Pkg Qty: 50

$19.60 pkg | $0.39 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 20.
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Meets
ANSI/ASME B18.8.2
Chamfer Diameter
0.0214 in.
Mfr. Part Number
5BY53
Fastener Finish
Passivated
Pack Quantity
50
Fastener Length
1 in.
Rockwell Hardness
Work Hardened
Finish
Passivated
Shipping Weight
.35 lb.
Item
Spring Pin
Spring Pin Type
Slotted
Length Tolerance
+/-0.015 in.
Type
Slotted
Material
302 Stainless Steel
Wall Thickness
0.048 in.
General
Actual Dia. (Min.-Max)
0.226-0.232 in
Fits Hole Dia. (Min.-Max.)
0.219-0.224 in
Chamfer Length (Max.)
0.065 in
Material Grade
302
Chamfer Length (Min.)
0.011 in
Outside Dia.
7/32 in

Product Description

Spring Pin, System of Measurement Inch, Spring Pin Type Slotted, Basic Material Stainless Steel, Material Grade 302, Fastener Finish Passivated, Outside Dia. 7/32 in, Fastener Length 1 in, Nominal Diameter 7/32 in, Length Tolerance +/-0.015 in, Chamfer Diameter 0.0214 in, Wall Thickness 0.048 in, Chamfer Length (Min.) 0.011 in, Chamfer Length (Max.) 0.065 in, Actual Dia. (Min.-Max) 0.226-0.232 in, Fits Hole Dia. (Min.-Max.) 0.219-0.224 in, Double Shear Strength (Lbs.) 3,400 lb

Item Barcode

9381204
Spring Pin,Slot,7/32x1 In L,
