SPEEDAIRE

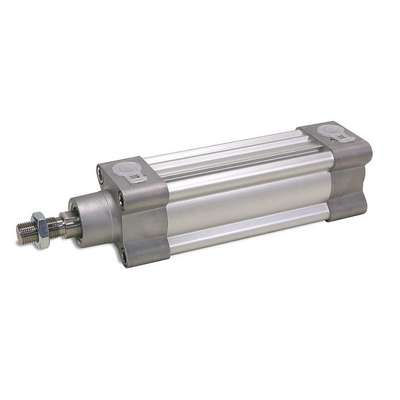

80 mm Air Cylinder Bore Dia. with 100 mm Stroke Aluminum , ISO MX0 Mounted Air Cylinder
Hover over image to magnify
#938099-6 | Pkg Qty: 1
$329.16 pkg | $329.16 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SPEEDAIRE
Package Quantity
1
Mfr. Part Number
5VMC3
Shipping Weight
7.35 lb.
General
Action Type
Double Acting
Magnetic Piston
Yes
Air Cylinder Bore Dia.
80 mm
Piston Rod
Chrome Plated Case Hardened Steel
Air Cylinder Product Group
Air Cylinder
Piston Rod Material
Case Hardened, Chrome Plated Steel
Bore Dia.
80 mm
Rod Dia.
25 mm
Dimension BA
45mm
Rod Thread Length
40 mm
End Caps
Anodized Aluminium
Rod Thread Size
M20 x 1.5 in
Features
Magnetic Piston
Single Acting/Double Acting
Double Acting
Product Description
ISO Extruded Aluminum Metric Air Cylinders
- Max. operating pressure: 145 psi Operating temp. range: -4° to 176°F Permanently lubricated extruded cylinders have a cleaner appearance and fewer places for dirt and debris to collect. Industry-standard footprint allows exchange with other tie-rod or extruded ISO-style cylinders. Head and caps are made of anodized high-pressure cast-aluminum. Manufactured without the use of copper, PTFE, or silicone. Meet ISO 6431, ISO/DIS 15552, VDMA 24562, and AFNOR installation and dimensional standards.
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
ISO Air Cylin,80mm Bore,100mm
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5VMC3 | |
 | UNSPSC CODES | 27131701 | |
 | VMRS (ATA) CODES | 053-006-009 |
