DAYTON

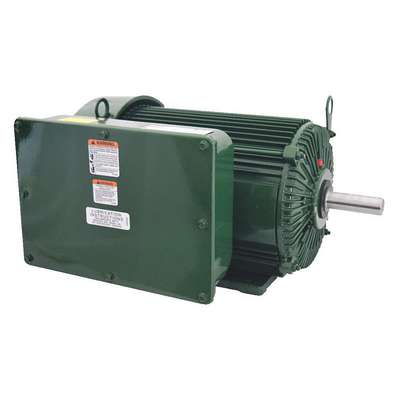

Dayton Extra High Torque Farm Duty Motor: 7 1/2, 1,715, 230V AC, 215TZ, Manual, Keyed
Hover over image to magnify
#938087-4 | Pkg Qty: 1
$2,553.65 pkg | $2,553.65 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Motor Type
Capacitor-Start
Brand
DAYTON
Mounting
Base
Duty
Continuous
NEMA/IEC Frame
215TZ
Duty Cycle
Continuous
Nameplate RPM
1715
Enclosure
Totally Enclosed Fan-Cooled
Overall Length
21-3/8 in.
Finish
Green
Pack Quantity
1
Frame
215TZ
Phase
Single
Full Load Amps
30.8
Rotation
CW/CCW
Function
Delivers Starting Torque as High as 300-400% of Full-load Torque
Service Factor
1.15
Hz
60
Shaft Length
3-3/8 in.
Insulation Class
F
Shipping Weight
148 lb.
Length Less Shaft
18 in.
Thermal Protection
Manual
Mfr. Part Number
6K884
Type
Extra High Torque
Motor Design
Capacitor-Start/Run
Voltage
230 VAC
General
Capacitor Required
Included
Motor Service Factor
1.15
HP
7 1/2
Motor Shaft Design
Keyed
Includes
Shaft Key, Gasketed Conduit Box and Shaft Slinger
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Motor Thermal Protection
Manual
Max. Ambient Temp.
40 °C
No. of Speeds
1
Motor Application
Farm Duty
Nominal Efficiency
83 %
Motor Bearings
Ball
RPM Range
1,701-1,800
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Shaft Dia.
1 1/8 in
Motor Frame Material
Rolled Steel
Standards
CSA Certified (258525), UL Recognized (E47479)
Motor Mounting Position
Horizontal
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor Mounting Type
Rigid Base
Product Description
Extra-high-torque farm-duty AC motors have up to 400% starting torque for extremely hard-starting applications and can start under full-load conditions in powering conveyors, silo unloaders, barn cleaners, compressors, and manure pumps. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
Item Barcode
Frm Dty Mtr,Capstrt,Tefc,7-1/
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6K884 | |
 | UNSPSC CODES | 26101103 | |
 | VMRS (ATA) CODES | 053-006-009 |
