HOBART

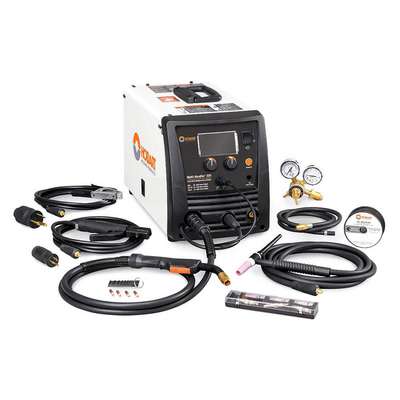

Hobart Multiprocess Welder: Multi-Handler 200, DC, MIG/Stick/TIG Pack

Hover over image to magnify
Miller Multi-Handler200 Multi
Miller Multi-Handler200 Multi

#938080-8 | Pkg Qty: 1

$2,029.08 pkg | $2,029.08 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
HOBART
Overall Height
13.4 in.
Hz
50/60
Overall Width
10.6 in.
Input Frequency
50/60 Hz
Package Quantity
1
Input Voltage
110/115/120 VAC, 220/230/240 VAC
Phase
Single-Phase
Item
Multiprocess Welder
Plug Type
5-15P, 6-50P
Maximum Amperage (MIG)
200 A
Rated Output @ Duty Cycle (MIG)
110 A @ 19.5V, 30% 165 A @ 22.2V, 30%
Maximum Amperage (Stick)
200 A
Rated Output @ Duty Cycle (Stick)
140 A @ 30%, 90 A @ 30%
Maximum Amperage (TIG)
200 A
Rated Output @ Duty Cycle (TIG)
165 A @ 16.6V, 300%
Mfr. Part Number
500578
Series
Multi-Handler 200
Model
500578
Shipping Weight
40 lb.
Overall Depth
20.8 in.
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
General
Application
Auto Body, Boat/Marine, Construction, Farm/Ranch, Maintenance/Repair, Metal Art
Minimum Wire Diameter
0.030 in (Flux-Cored), 0.030 in (Solid Wire)
Features
Dual- Voltage, Run-in Technology
Minimum Wire Feed Speed
60 in/min
For Wire Type
Flux-Cored, Solid
Open Circuit Voltage
63 V DC
Includes
0.03 in and 0.035 in Contact Tips, Dual-Gauge Regulator with Gas Hose, Electrode Holder with 10 ft Cable, MIG Gun with 10 ft Cable, Quick Select Drive Roll for 0.024 in or 0.03/0.035 in Solid Wire & 0.03/0.035 in Flux-Cored Wire, Sample Spool of 0.03 in Solid MIG Wire, TIG Consumables Kit, TIG Torch with 12.5 ft Cable, Work Clamp with 10 ft Cable
Power Cord Included
Yes
Input Voltage (Nominal)
240V, 120V
Rated Output at Duty Cycle (Stick)
90 A @ 30%, 140 A @ 30%
Kit Includes
Work Cable with Clamp, MIG Gun, Flow Gauge/Regulator & Gas Hose, Stick Electrode Holder with Cable, Drive Rolls, Contact Tips, TIG Torch, Solid Wire
Remote Connection Type
RJ45
MIG Welding Maximum Output Current
200 A
Stick Welding Maximum Output Current
200 A
MIG Welding Minimum Output Current
30 A
Stick Welding Minimum Output Current
30 A
MIG Welding Output @ Duty Cycle
110 A @ 19.5 V, 30%, 165 A @ 22.2 V, 30%
Stick Welding Output @ Duty Cycle
140 A @ 25.6 V, 30%, 90 A @ 23.6 V, 30%
Max. Amperage Range (MIG)
150 A — 300 A
TIG Welding Maximum Output Current
200 A
Max. Amperage Range (Stick)
150 A — 300 A
TIG Welding Minimum Output Current
20 A
Max. Amperage Range (TIG)
150 A — 300 A
TIG Welding Output @ Duty Cycle
165 A @ 16.6 V, 300%
Max. Input Current
23.0 A @ 120V AC (Single-Phase)
Welder Kit Type
MIG/Stick/TIG Package
Max. Wire Diameter
0.035 in (Flux-Cored), 0.035 in (Solid)
Welding Mode
CC/CV
Maximum Wire Feed Speed
650 in/min

Product Description

Multiprocess Welder, Series Multi-Handler 200, Input Voltage 110/115/120V AC, 220/230/240V AC, Phase Single-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 200 A, TIG Welding Maximum Output Current 200 A, MIG Welding Maximum Output Current 200 A, For Wire Type Flux-Cored, Solid

Item Barcode
9380808
Miller Multi-Handler200 Multi
 NameItemDescription
Grainger DropshipGrainger Dropship60MK36
UNSPSC CODESUNSPSC CODES23271424
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009MILLER Multi- Handler200
