HOBART

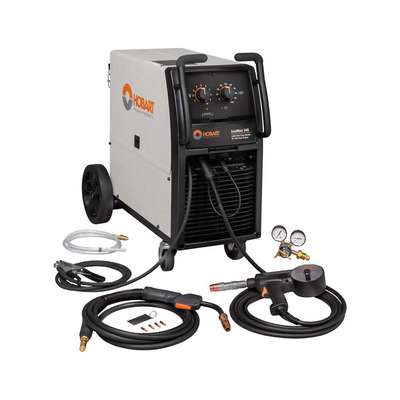

Hobart MIG Welder: IronMan 240, MIG/Aluminum Pack

Hover over image to magnify
Mig Welder
Mig Welder

#938023-5 | Pkg Qty: 1

$3,510.16 pkg | $3,510.16 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
HOBART
Overall Width
19 in.
Input Voltage
220/230/240 VAC
Package Quantity
1
Item
MIG Welder
Phase
1
Mfr. Part Number
500574001
Series
IronMan 240
Overall Depth
40 in.
Shipping Weight
211 lb.
Overall Height
30 in.
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
General
For Wire Type
Aluminum, Flux-Cored, Solid
Maximum Wire Feed Speed
700 in/min
Input Voltage (Nominal)
240V
Minimum Wire Diameter
0.023 in
Kit Includes
Contact Tips, Drive Rolls, Flow Gauge Regulator & Gas Hose, MIG Gun, Running Gear, Spool Gun, Work Cable with Clamp
Minimum Wire Feed Speed
50 in/min
MIG Welding Maximum Output Current
280 A
Power Cord Included
Yes
MIG Welding Minimum Output Current
30 A
Rated Output at Duty Cycle (MIG)
200 A @ 60%
MIG Welding Output @ Duty Cycle
200 A @ 24 V, 60%
Welder Kit Type
MIG/Aluminum Package
Maximum Amperage Range (MIG)
150 A — 300 A
Welding Mode
CV

Product Description

MIG Welder, Series IronMan 240, Input Voltage 220/230/240V AC, Phase Single-Phase, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Aluminum, Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Aluminum), 0.045 in (Flux-Cored), 0.045 in (Solid), Maximum Wire Feed Speed 700 in/min, Remote Connection Type Not Applicable, Model 500574001, MIG Welding Output @ Duty Cycle 200 A @ 24 V, 60 Percent
