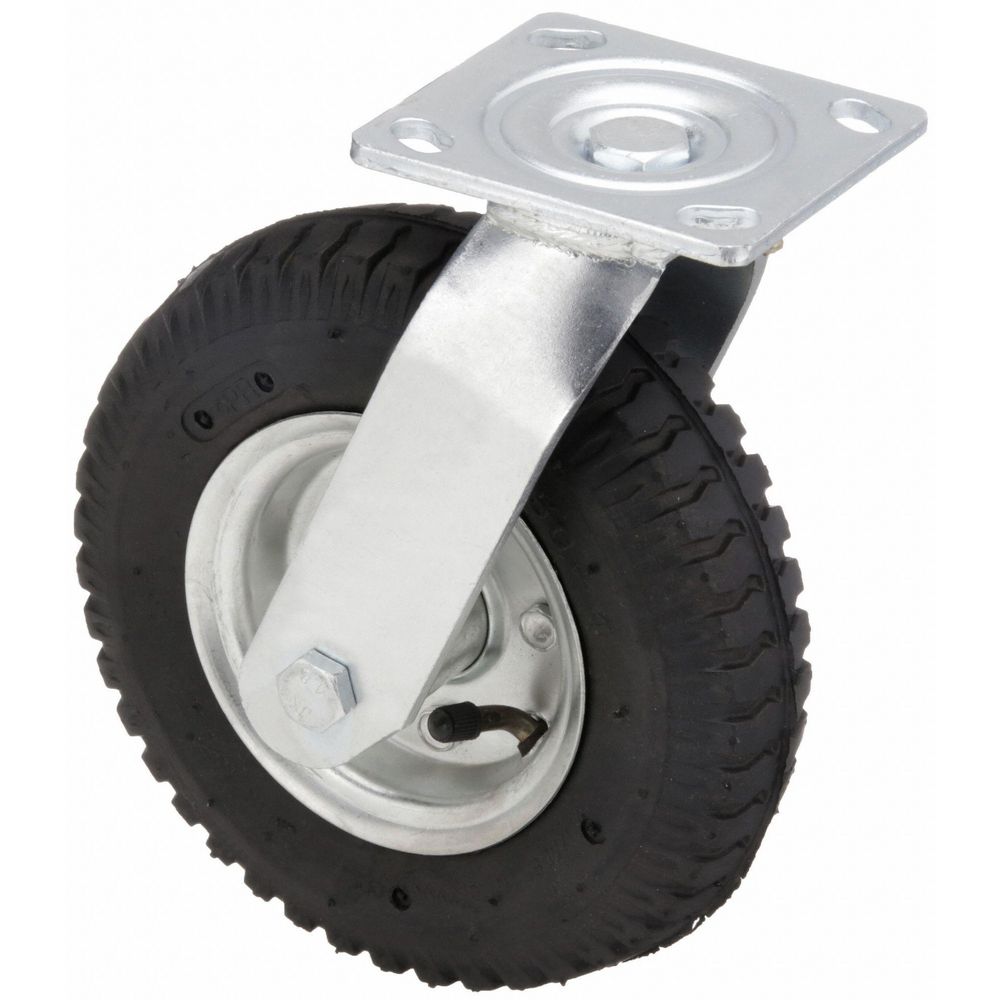

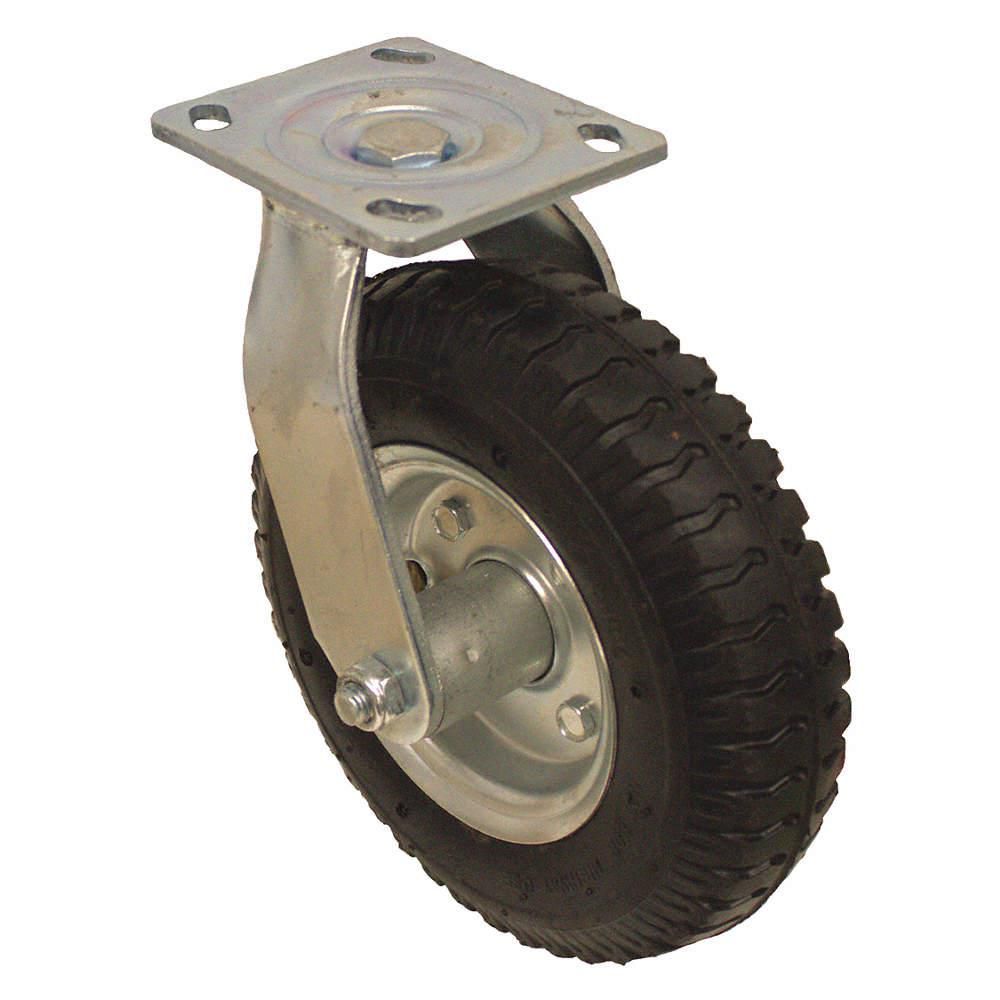

Light Duty, Swivel Plate Caster with Pneumatic Wheels; 210 lb. Load Rating, 8" Wheel Dia.

Hover over image to magnify
Plate Cstr w/ Pneumatic Whls ,
PI_Asset_1985930
PI_Asset_1989884
Plate Cstr w/ Pneumatic Whls ,
PI_Asset_1985930
PI_Asset_1989884

#938002-8 | Pkg Qty: 1

$59.70 pkg | $59.70 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
210 lb.
Caster Brake Included
No
Mfr. Part Number
P21S-P080WK-14-H10
Caster Brake Type
No Brake Included
Mounting Bolt Diameter
3/8 in.
Caster Load Rating Range
Light Duty
Mounting Height
10-1/8 in.
Caster Plate Hole Pattern
B
Non-Marking
No
Caster Plate Size
4 in. x 4-1/2 in.
Number of Mounting Holes
4
Caster Raceway
Double Ball
Number of Wheels
1
Caster Wheel Bearings
Precision Ball
Outside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster Wheel/Tread Material
Rubber
Package Quantity
1
Caster/Wheel Tread
Diamond
Plate Caster Sub-Type
Swivel
Durometer
65 Shore A
Shipping Weight
6.15 lb.
Frame Finish
Zinc Plated
Swivel Construction
Kingpin
Frame Material
Steel
Wheel Color
Black
Includes Thread Guards
No
Wheel Diameter
8 in.
Inside Bolt Hole Spacing
3 in. x 3 in.
Wheel Width
2 in.
Item
Plate Caster with Pneumatic Wheels
Wheel/Tread Hardness Rating
Soft
General
Caster Frame Material
Steel
Mounting Plate Size
4 in x 4-1/2 in
Caster Mounting Type
Plate
Mounting Plate Size (Bolt Hole Pattern)
4 in x 4-1/2 in (B)
Caster Product Group
Swivel Caster
Operating Temperature Range
-20° to 180°F
Caster Temp. Range Available
Yes
Swivel Raceway Type
Double Ball
Hub Materials
Steel
Tire Rim Dia.
4 in
Hub Position
Centered
Tire Thickness
2 1/2 in
Hub Width
3"
Wheel Bearing Type
Precision Ball
Load Rating Range
0 to 299 lb
Wheel Dia.
8 in
Mounting Bolt Dia.
3/8 in
Wheel/Tread Hardness
65 Shore A
Mounting Plate Bolt Hole Pattern
B
Wheel/Tread Material
Rubber

Product Description

Medium-duty pneumatic plate casters have zinc-plated steel frames and lightweight wheels with air-filled tires. These casters cushion loads against shock and vibration, and they have double ball swivels that allow them to swivel smoothly. Pneumatic wheels puncture more easily than semipneumatic and flat-free wheels, and they require maintenance to keep the wheels' tires filled to the correct air pressure. They are suitable for use in areas where they will not encounter sharp debris. These casters can be used on carts, trucks, and similar equipment in locations such as warehouses, transportation facilities, lawn and garden centers, and hospitality sites.

Smooth-ride pneumatic, semipneumatic, and flat-free plate casters have air-filled, foam-filled, or solid-rubber caster wheels that allow them to absorb more shock and vibration, provide more stability, and produce less noise than other types of plate casters. These casters are suitable for transporting fragile or vibration-sensitive loads and for moving loads over rough or uneven surfaces in outdoor areas and industrial facilities. The casters have a mounting plate that mounts onto the bottom of carts and other equipment to allow the equipment to roll, reducing the effort it takes to move or reposition the equipment. They come in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters can be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.

Item Barcode
9380028
