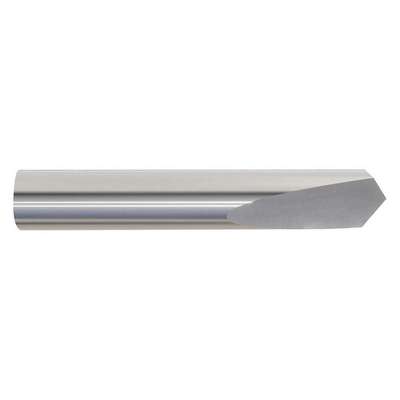

Solid Spade Drill Bit, Drill Bit Size 13/32", 118 ° Drill Bit Point Angle, Carbide
Hover over image to magnify
#937813-3 | Pkg Qty: 1
$48.15 pkg | $48.15 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
APPROVED SUPPLIER
Item
Solid Spade Drill Bit
Cutting Direction
Right
Maximum Drilling Depth
1-1/8 in.
Cutting Direction
Right Hand
Mfr. Part Number
400-001110
Decimal Equivalent
0.4063
Number of Pieces
1
Drill Bit Dimension Type
Fractional Inch
Overall Length
2-3/4 in.
Drill Bit Finish
Bright (Uncoated)
Pack Quantity
1
Drill Bit Material
Solid Carbide
Point Angle
118 deg.
Drill Bit Point Angle
118 deg.
Shank Diameter
13/32 in.
Drill Bit Size
13/32 in.
Shank Type
Straight
Finish
Bright
Shipping Weight
0.2 lb.
Flute Length
1-1/8 in.
General
Application
Metalworking
Material - Machining
Carbide
Depth:Dia. Ratio
3xD
Material Grade - Machining
C2
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Radial Point
Primary Material Application ISO Code
H, M, N
Drill Diameter Tolerance
+0.0000 in /-0.0005 in
Shank Dia.
13/32 in
Finish - Machining
Bright (Uncoated)
Shank Type - Machining
Straight
Product Description
Carbide solid spade drill bits provide excellent hardness, wear resistance, and heat resistance. They require a rigid setup such as a drill press. These bits have a bright finish that is unaffected when their cutting edges are resharpened.
