GENIE

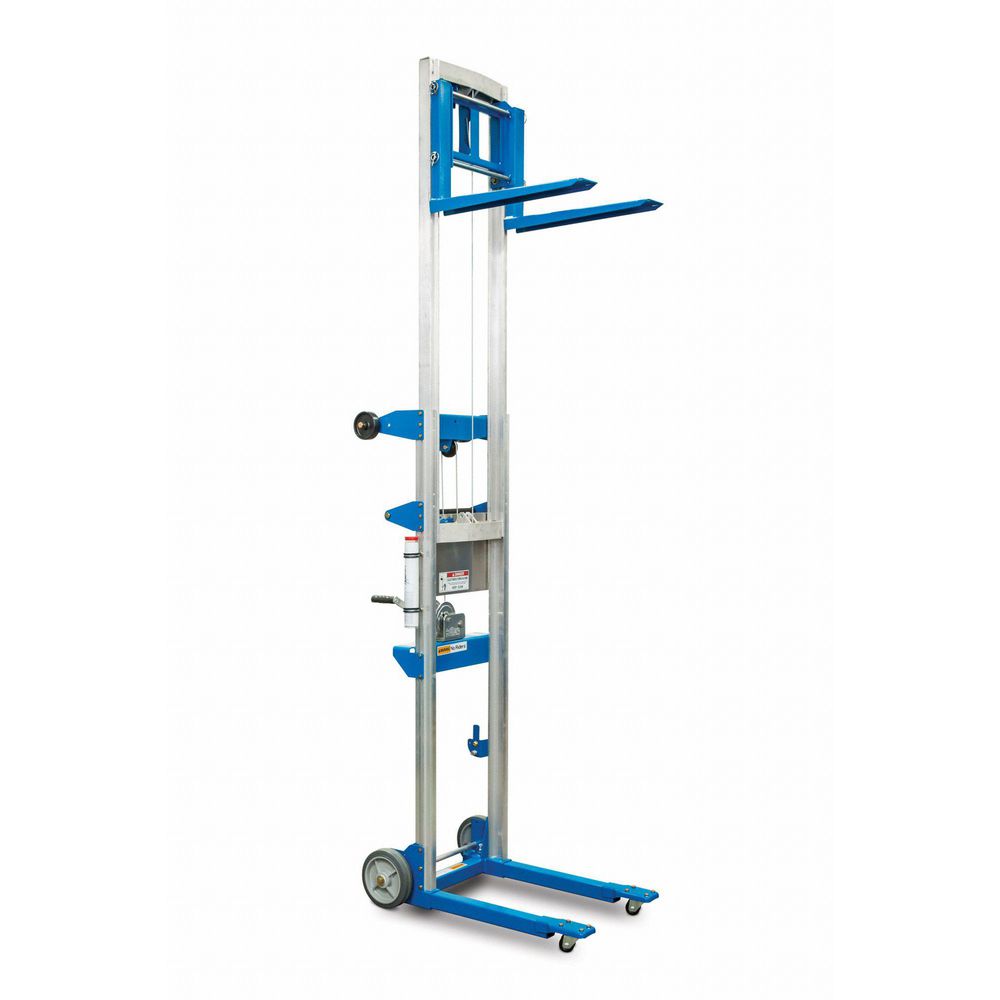

Genie Manual Fork-Over Stacker: 500 lb Load Capacity, 22 1/2 in x 3 in, 3 1/2 in to 5 ft. 11 in

Hover over image to magnify
Invertible Fork Material Lift,
PI_Asset_1981958
PI_Asset_1988036
PI_Asset_1991014
Invertible Fork Material Lift,
PI_Asset_1981958
PI_Asset_1988036
PI_Asset_1991014

#937690-9 | Pkg Qty: 1

$1,745.05 pkg | $1,745.05 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
GENIE
Package Quantity
1
Color Family
Blue
Shipping Weight
168 lb.
Mfr. Part Number
GL-4 STD
General
Assembled
Yes
Front Caster Dia.
2 in
Axle-Mounted Wheel Dia.
8 in
Front Wheel Dia.
2 in
Axle-Mounted Wheel Type
Tread on Core
Height Stowed
5' 7-1/2"
Base Legs Inside Dia.
20"
Includes
Hand Winch for Inverting Forks
Base Legs Inside Dim.
18 in
Lifting Height Forks Down
49 1/2 in
Base Legs Outside Dia.
24 3/4 in
Lifting Height Forks Up
71 in
Base Legs Outside Dim.
24-3/4 in
Lifting Height Max.
71 in
Base Outside Width
24 3/4 in
Lifting Height Min.
3 1/2 in
Caster Frame Material
Stainless Steel
Lifting Height Range
3 1/2 in to 5 ft 11 in
Caster Wheel Dia.
2 in
Min. Height Forks Down
3-1/2"
Caster Wheel Width
1 1/2 in
Non-Marking Axle-Mounted Wheels
Yes
Caster/Wheel Configuration
(2) Swivel with Brake, (2) Axle-Mounted
Non-Marking Casters/Wheels
Yes
For Pallet Type
Open
Overall Height with Forks Lowered
49 1/2 in
For Surface Type
Concrete
Overall Height with Forks Raised
71 in
Fork LxW
22 1/2 in x 3 in
Overall LxWxH
34 3/4 in x 27 in x 49 1/2 in
Fork Type
Fixed Invertible
Rear Wheel Dia.
8 in

Product Description

Manual fork-over stackers have their outrigger legs positioned directly underneath their forks. They have a more compact footprint than straddle stackers and counterbalanced stackers and can maneuver in tight spaces such as aisles, loading docks, and store rooms. Fork-over stackers can only lift open-bottom pallets, skids, or containers. They are used for lifting and stacking operations, as portable lift tables, and for feeding materials into machines. These manual stackers have a foot pedal or hand crank that operators use to activate the stackers' lifting mechanism. They are suitable for intermittent use and applications where loads will be moved and lifted short distances.
