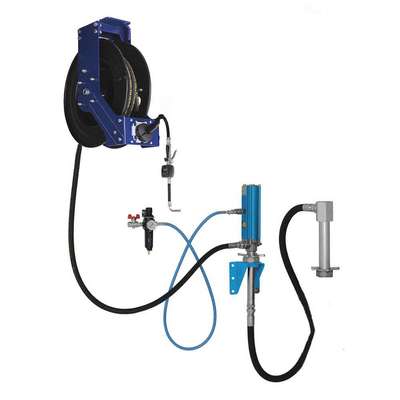

Air Operated Drum Pump, Metered Dispensing with Manual Shut-Off, For Container Type Drum

Hover over image to magnify
Air Operated Drum Pump,6 Gpm,1/
Air Operated Drum Pump,6 Gpm,1/

#937629-6 | Pkg Qty: 1

$2,340.56 pkg | $2,340.56 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Package Quantity
1
Mfr. Part Number
ACTKIT31
Shipping Weight
95 lb.
General
Adapter Connection Type
MNPT
Includes Suction Tube
Yes
Air Outlet Size
1/4 in
Max. Air Pressure
140 psi
Bung Connection Dia.
2 in
Max. Flow Rate
6 gpm
Compatible Chemicals
Automatic Transmission Fluid, Hydraulic Oils (Petroleum), Motor Oil
Max. Fluid Temp.
140 Degrees F
Discharge Connection Type
FNPT
Max. Head - Pumps
25 ft
Discharge Tube Outlet ID
3/4 in
Max. Head Pressure
100 psi
Discharge Tube Outlet OD
1 in
Max. Oil Flow
6 gpm
Explosion Proof
Yes
Max. Viscosity
600 cps
Features
Low Noise Air Pump
Min. Air Pressure
45 psi
For Container Size
30 gal, 55 gal
Min. Fluid Temp.
45 Degrees F
For Container Type
Drum
Noise Level
75 db
For Media Type
Automatic Transmission Fluid, Hydraulic Oil, Motor Oil
Not Recommended Chemicals
Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%)
Height Above Container
8 in
Nozzle Operation
Manual
Hose Cover Material
Nitrile
Pump Connection ID
3/4 in
Hose Inside Dia.
1/2 in
Pump Connection OD
1 in
Hose Outside Dia.
3/4 in
Pump Connection Type
FNPT
Hose Tube Material
Nitrile
Pump Package Type
Metered Dispensing with Manual Shut-Off
Housing Material - Pumps
Aluminum
Runs Dry
Yes
Includes
30 ft Hose Reel, Air Filter, Digital Oil Meter, Hose and Connections for Down Tube, Wall Bracket
Spout Connection Size
1/2 in
Includes Bung Adapter
Yes
Spout Connection Type
FNPT
Includes Discharge Hose
Yes
Suction Tube ID
1 7/8 in
Includes Nozzle
Yes
Suction Tube Material
Steel
Includes Spout
Yes
Suction Tube OD
1 63/64 in

Product Description

Automotive fluid, fuel, and oil pneumatic drum pumps are designed for dispensing and transferring moderate to large volumes of fluids such as diesel fuel, coolant, washer fluid, power steering fluid, transmission fluid, and engine oil. Sometimes called an air-operated oil transfer pump or a pneumatic fuel transfer pump, these pumps are commonly used during automotive service and fleet maintenance to drain fuel tanks and remove spent fluids from vehicles and engine-powered machinery.
