SIEMENS

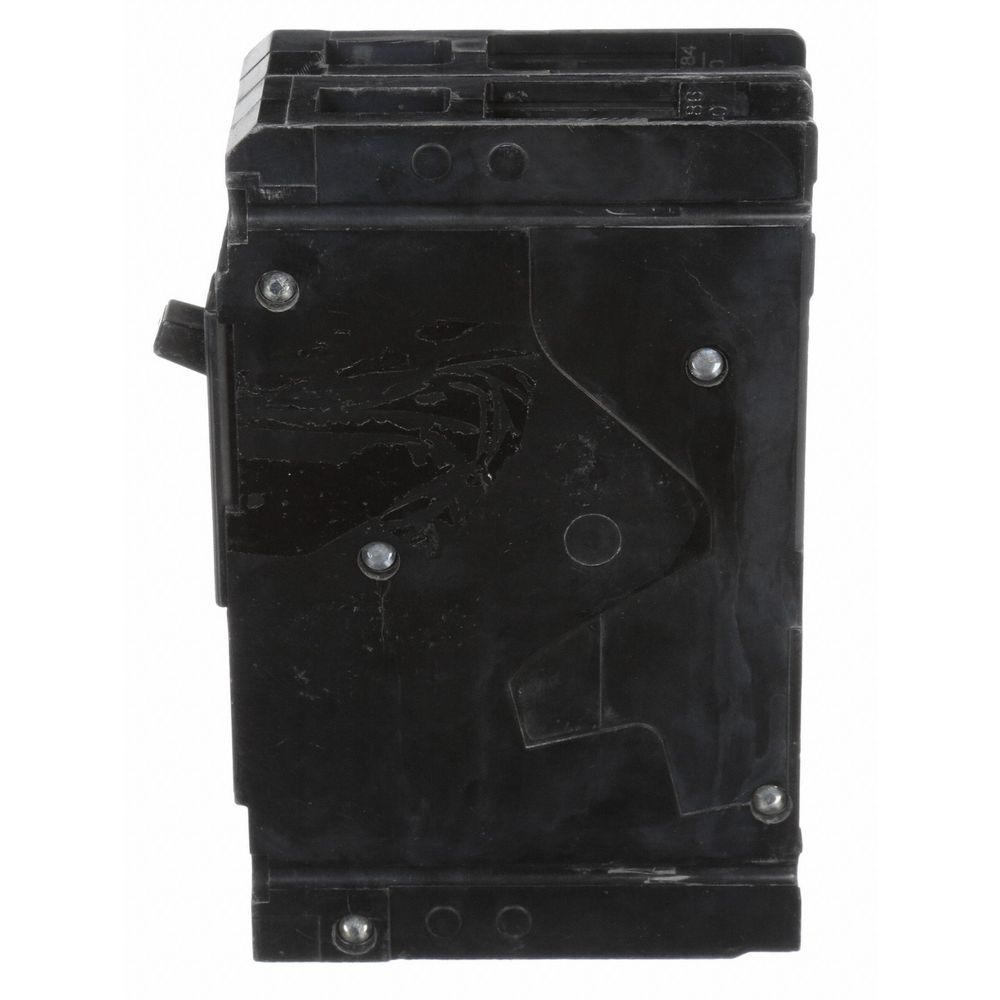

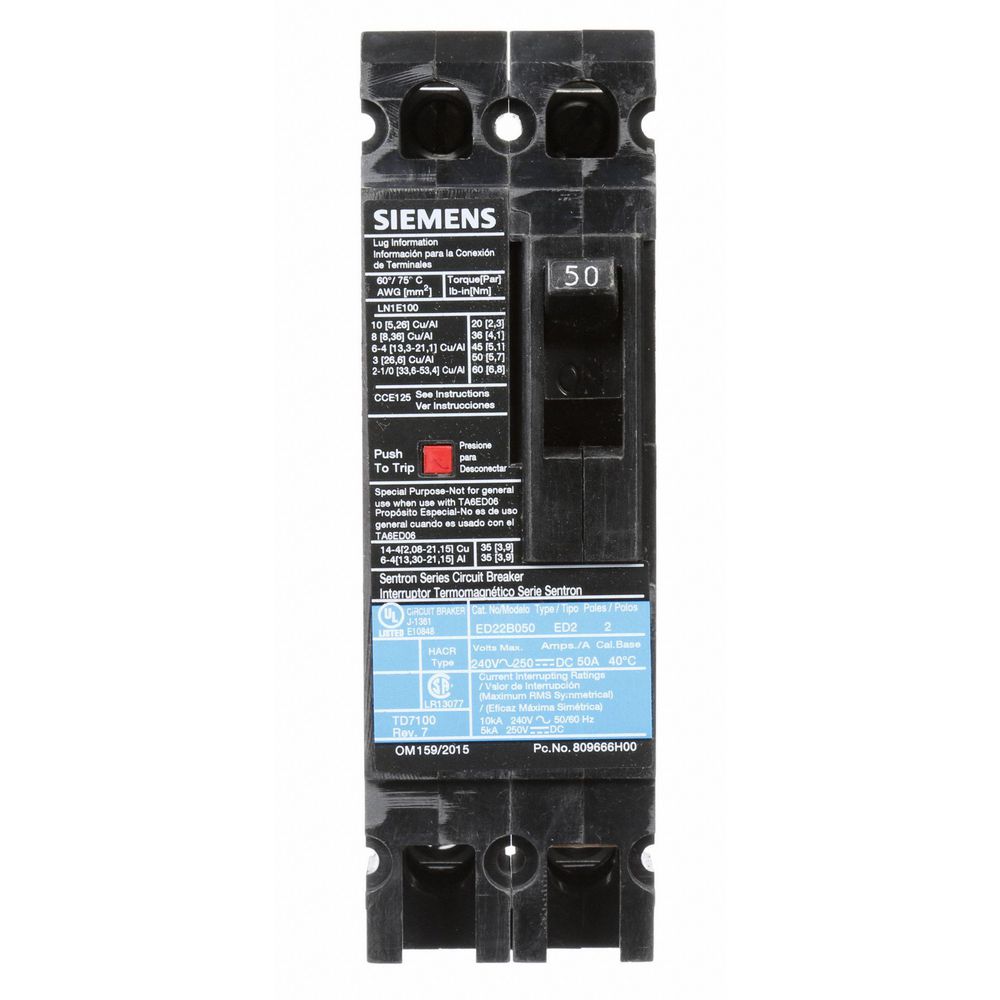

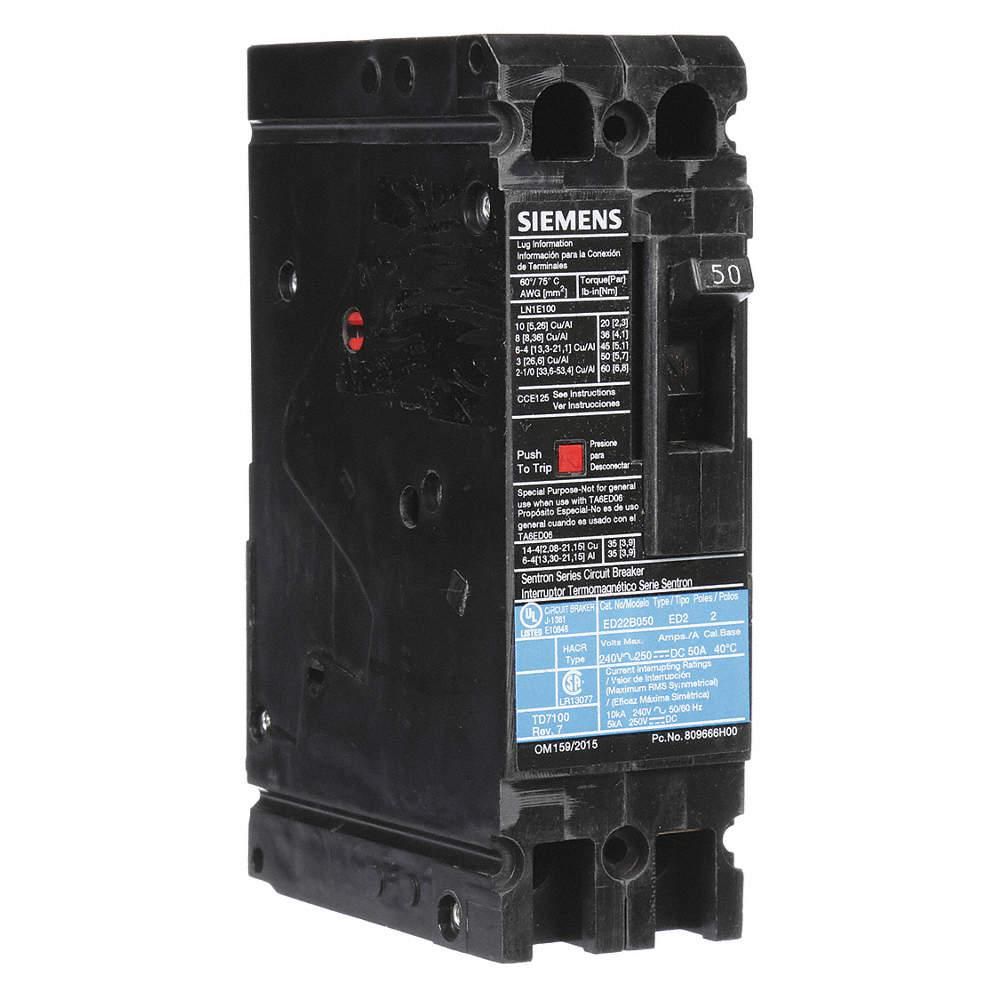

Siemens Molded Case Circuit Breaker, 50 A Amps, Number of Poles 2, Series ED2
Hover over image to magnify
#937302-6 | Pkg Qty: 1
$923.17 pkg | $923.17 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Voltage Rating
240VAC
Item
Molded Case Circuit Breaker
Air @ 120 VAC
Not Rated
Low Amp Trip Setting
50 A
Air @ 125 VDC
Not Rated
Maximum Air Rating
10kA at 240VAC
Air @ 240 VAC
10kA
Maximum Wire Size
1/0 AWG
Air @ 277 VAC
Not Rated
Mfr. Part Number
ED22B050
Air @ 48 VDC
Not Rated
Minimum Wire Size
1/0 AWG
Air @ 480 VAC
Not Rated
Mounting
Lug In Panelboard
Air @ 600 VAC
Not Rated
Number of Poles
2
Air @ 65 VDC
Not Rated
Package Quantity
1
Amperage
50 A
Panelboard Mounting
Lug-In
Amps
50 A
Phase
Single
Brand
SIEMENS
Phase Connection
Any
Circuit Breaker Type
Standard
Series
ED2
DC Voltage Rating
125/250VDC
Shipping Weight
2.55 lb.
Depth
4 in.
Switch Type
Toggle
For Use With
SB Switchboards, Sentron Panelboards
Terminal Connection
Load Side Lug
Frame Size
125A/ED
Trip Type
Thermal Magnetic
Height
6.34 in.
Type
Panelboard Mount
High Amp Trip Setting
50 A
Voltage
240VAC
Instantaneous Trip
Fixed
Width
2 in.
General
AIR @ 240VAC
10kA
Circuit Breaker Mounting Style
Lug In Panelboard
Circuit Breaker Actuator
Toggle
Standards
HACR Rated
Product Description
ED-frame Siemens molded case circuit breakers are rated up to 125A and 480VAC and interrupt excessive current flows to protect devices from electrical damage. They're used in enclosures, switchboards, panelboards, and load centers. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Expertly Selected Product Pairings
Item Barcode
Circuit Breaker,50A,2P,240VAC,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6FMZ5 | |
 | UNSPSC CODES | 39121601 | |
 | VMRS (ATA) CODES | 053-006-009 | Circuit Breaker,50A, |
