SQUARE D

Square D Miniature Circuit Breaker, Amps 30 A, Circuit Breaker Type High Intensity Discharge

Hover over image to magnify

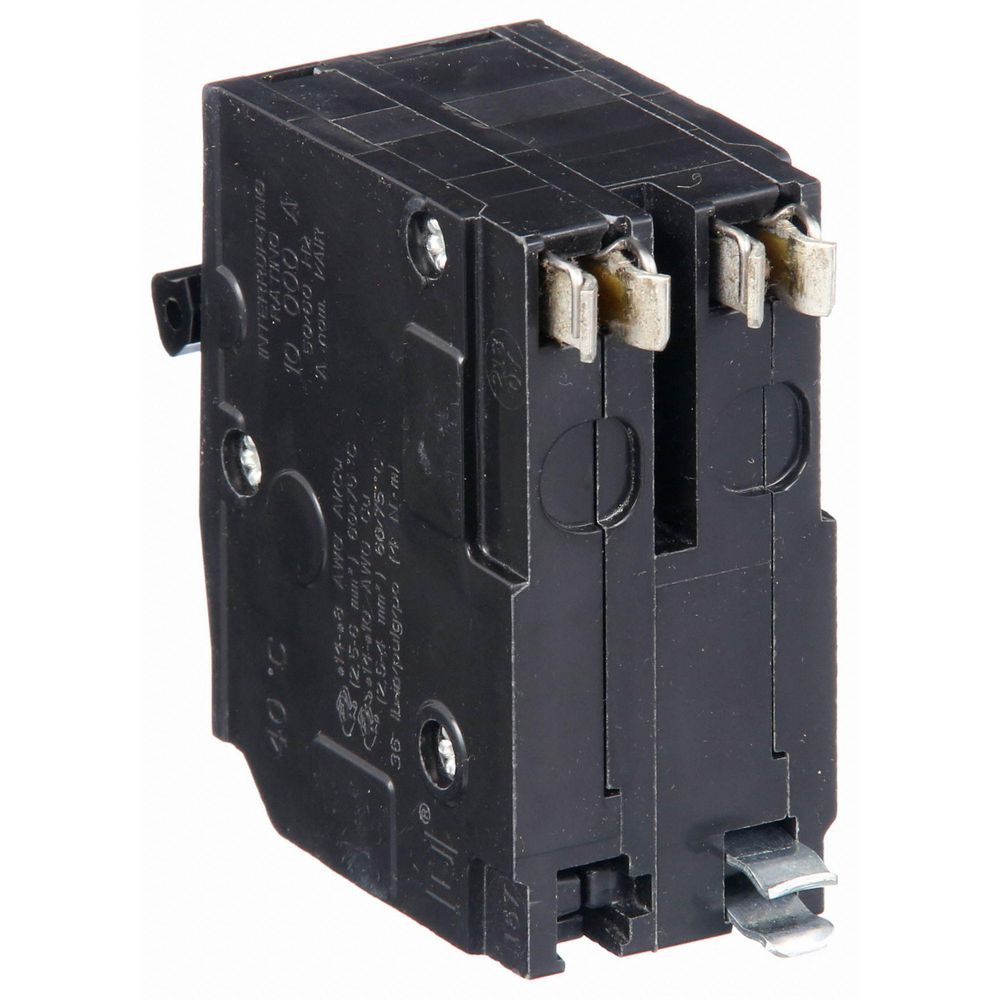

Circuit Breaker,30A,Plug In,
PI_Asset_1769610
Circuit Breaker,30A,Plug In,
PI_Asset_1769610
Double tap image to magnify
Circuit Breaker,30A,Plug In,
1D309_1
Circuit Breaker,30A,Plug In,
1D309_1

#937172-7Pkg Qty: 1

$92.86 pkg | $92.86 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Apr 07.
|

Technical Specifications

Key Specifications
AC Voltage Rating
120/240VAC
Maximum Air Rating
10kA at 120/240VAC
Air @ 120 VAC
10kA
Maximum Wire Size
8 AWG
Air @ 240 VAC
10kA
Mfr. Part Number
QO230HID
Air @ 48 VDC
5kA
Minimum Wire Size
12 AWG (Al), 14 AWG (Cu)
Amperage
30 A
Number of Poles
2
Amps
30 A
Package Quantity
1
Brand
SQUARE D
Panelboard Mounting
Plug-In
Circuit Breaker Type
High intensity Discharge
Phase
Single
DC Voltage Rating
48VDC
Phase Connection
Any
Depth
2.91 in.
Series
QO
For Use With
QO Load Centers and NQ Panelboards
Shipping Weight
.53 lb.
Frame Size
100A/QO
Terminal Connection
Pressure plate
High Amp Trip Setting
40-1/2
Type
Panelboard Mount
Instantaneous Trip
Fixed
Voltage
120 - 240VAC
Item
Miniature Circuit Breaker
Warranty
5ZZX3
Length
3 in.
Width
1-1/2 in.
General
Circuit Breaker Actuator
Paddle
Standards
CSA Certified
Circuit Breaker Mounting Style
Plug In

Product Description

These QO series miniature circuit breakers plug into place in NQOD and NQ panelboards and QO load centers without requiring DIN rail or bolts, so they're easier to install than bolt-on and unit-mount breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.
