GREENFIELD THREADING

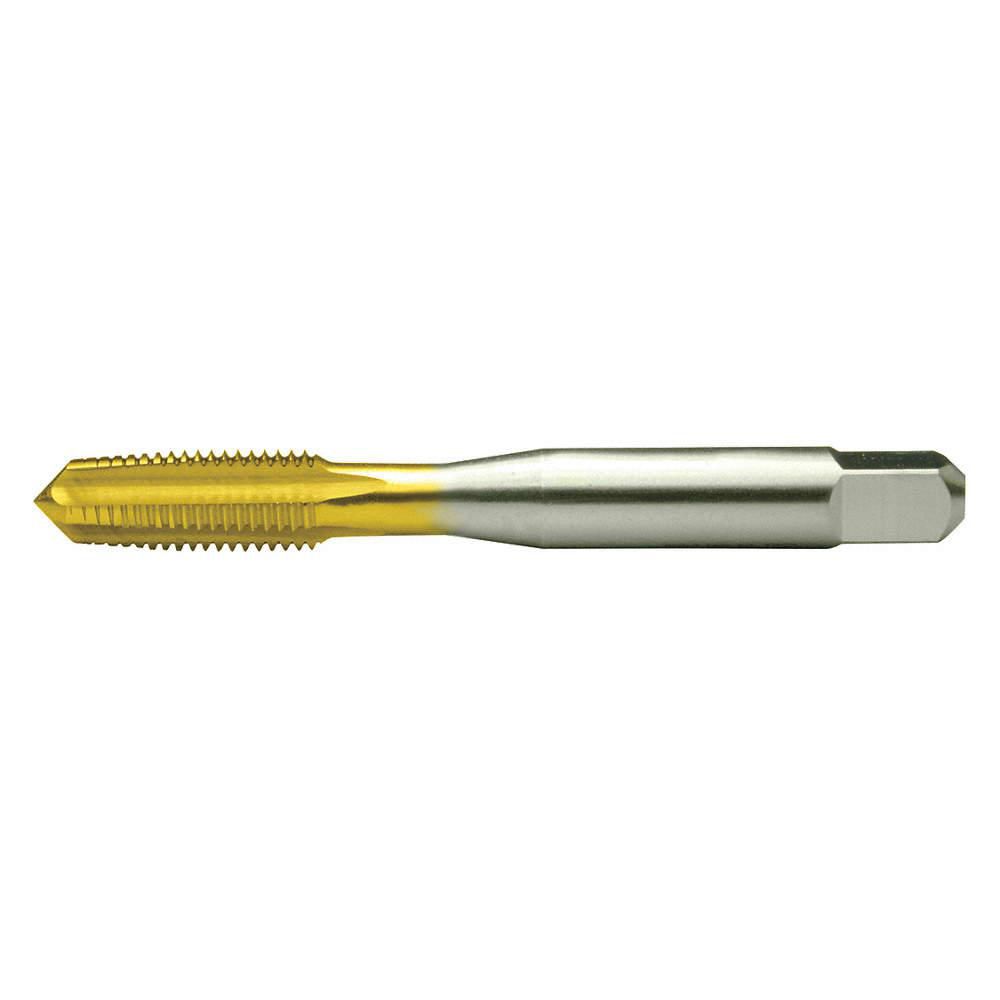

Straight Flute Tap, Thread Size 7/16"-20, UNF, Taper, Overall Length 3-5/32"

Hover over image to magnify
Straight Flute Tap,7/16"-20,Hss
Straight Flute Tap,7/16"-20,Hss
Double tap image to magnify
Straight Flute Tap,7/16"-20,Hss
Straight Flute Tap,7/16"-20,Hss

#937160-8Pkg Qty: 1

$28.82 pkg | $28.82 ea

In Stock

Shipping to 43085
Expected to arrive Wed. Apr 02.
|

Technical Specifications

Key Specifications
Brand
GREENFIELD THREADING
Shank Length
1-11/16 in. in.
Cutting Direction
Right
Shipping Weight
.08 lb.
Cutting Direction
Right Hand
Spiral Direction
Neutral
Drill Size
25/64 in.
Square Size
0.242 in.
Item
Straight Flute Tap
Subgroup | Tap
Straight Flute
List Number
HTGP-TN
Tap Chamfer
Taper
Material
High Speed Steel
Tap Dimension Type
Inch
Mfr. Part Number
306119
Tap Finish
TiN
Number of Flutes
4
Tap Material
High Speed Steel
Number of Pieces
1
Tap Style
Straight Flute (Hand)
Overall Length
3-5/32 in.
Tap Thread Size
7/16 in.-20
Pack Quantity
1
Tap Thread Type
UNF
Primary Material Application
Cast Iron, Stainless Steel, Steel
Thread Direction
Right Hand
Series
HTGP-TN
Thread Length
1-7/16 in.
Shank Diameter
5/16 in.
General
55% Thread Drill Size
10.20 mm
Standards
USCTI Table 302A
65% Thread Drill Size
10.00 mm
Tap Grouping
Individual
75% Thread Drill Size
9.95 mm
Tap Length Standard
USCTI
Class of Fit
2B
Tap Shank Standard
USCTI
Extended Neck
Yes
Thread Limit
H3
Measurement System
Fractional Inch
Thread Limit / Class of Fit
H3 / 2B
Primary Material Application ISO Code
K, M, P
Threads per Inch
20
Shank Type - Machining
Straight

Product Description

The TiN coating on these taps protects them from wear and allows them to be used at higher speeds than taps with a bright finish. Non-coolant-through taps do not have coolant holes, so a separate hose is required to bring coolant to the cutting area if it is needed.
