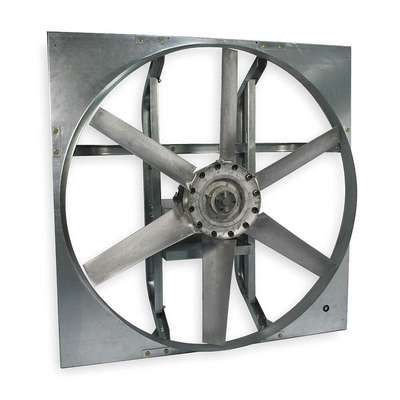

Dayton 48" Dia., Exhaust Fan with Drive Package, 208-230/460V ACV, Totally Enclosed Fan-Cooled

Name: Dayton 48" Dia., Exhaust Fan with Drive Package, 208-230/460V ACV, Totally Enclosed Fan-Cooled
Brand: DAYTON
SKU: 9370913
Price: 3657.2 USD
Availability: InStock

Hover over image to magnify

#937091-3 | Pkg Qty: 1

$3,657.20 pkg | $3,657.20 ea

This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Brand

DAYTON

Package Quantity

Mfr. Part Number

7M8F1

Shipping Weight

362.26 lb.

General

Assembled

Unassembled

Maximum Inlet Temperature

104 Degrees F

Bearing Size

1 1/2 in

Maximum Noise Level

32 sones

Enclosure Design

Totally Enclosed Motor

Maximum Noise Level @ 0.000 in SP @ 5 ft

Greater than 50 sones

Exhaust Airflow @ 0.000 in SP

33,223 cfm

Motor Enclosure Design

Totally Enclosed Fan Cooled (TEFC)

Exhaust Airflow @ 0.125 in SP

29,689 cfm

Motor Horsepower

3 hp

Exhaust Airflow @ 0.250 in SP

25,707 cfm

Motor Speed

1,765 RPM

Fan Style

Panel

Motor Speed Range

1601 to 1800 RPM

Fan Voltage

208-230/460V AC

Nameplate Voltage

208-230/460V AC

Flange Depth

2 in

Noise Level @ 0.000 in SP @ 5 ft

32 sones

For Cut-Out Height

50 1/2 in

Noise Level @ 0.125 in SP @ 5 ft

33 sones

For Cut-Out Length

50 1/2 in

Nominal Voltage

208-230/440V AC

For Cut-Out Width

50 1/2 in

Number of Fans

Full Load Current

8.4 A

Square Opening Required

Greater than 30 in

Includes

Drive Package

Vent Design

Ductless

Includes Motor

Yes

Ventilation Type

Exhaust

Manufacturer Warranty Length

1 yr

Venturi Depth

7 in

Maximum Airflow

33,223 cfm

Venturi Diameter

48 1/2 in

Maximum Exhaust Airflow @ 0.000 in SP

30,001 to 40,000 cfm

Product Description

Fan is designed for commercial and industrial applications that require high volumes of air at low to medium static pressures. Built with 6-blade heavy-duty cast-aluminum propellers, drive-frame channels, bearing plate, and motor plate. The variable pitch, adjustable motor pulley optimizes fan performance. Air handling-quality bearings meet a minimum of L10-100,000 hr. Mount fan vertically for exhaust operation; horizontally for supply. Included drive package comes with appropriate motor, belt, and sheaves to obtain performance listed; packed separately. Note: OSHA complying guards are required when a fan is installed within 8 ft. of floor, working level, or within reach of personnel. Review OSHA codes and UL standards.
