MARATHON MOTORS

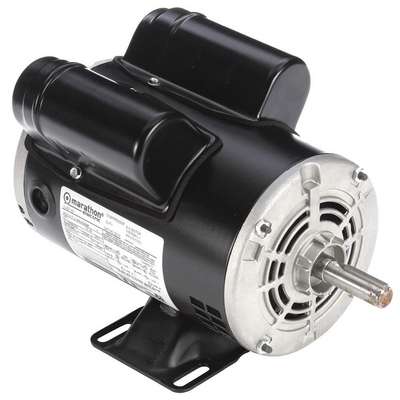

Marathon Motors Commercial Duty Air Compressor Motor, 1 HP, Capacitor-Start/Run, Nameplate RPM 3,450
Hover over image to magnify
#937052-9 | Pkg Qty: 1
$443.20 pkg | $443.20 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Motor Type
Capacitor-Start
Brand
MARATHON MOTORS
Mounting
Rigid Base
Duty
Continuous
NEMA/IEC Frame
56
Duty Cycle
Continuous
Nameplate RPM
3450
Enclosure
Open Dripproof
Overall Length
11-3/4 in.
Finish
Black
Pack Quantity
1
Frame
56
Phase
Single
Full Load Amps
10.6/5.5-5.3
Rotation
CW/CCW
Hz
60
Service Factor
1.15
Insulation Class
B
Shaft Length
1-7/8 in.
Length Less Shaft
9-13/16 in.
Shipping Weight
23 lb.
Mfr. Part Number
056B34D2029
Thermal Protection
Manual
Motor Design
Capacitor-Start/Run
Voltage
115/208-230 VAC
General
Application
Air Compressor
Motor Mounting Type
Rigid Base
Capacitor Included
Yes
Motor Service Factor
1.15
HP
1
Motor Shaft Design
Keyed
Includes
Capacitor
Motor Shaft Rotation
CW/CCW
Ins. Class
B
Motor Thermal Protection
Manual
Max. Ambient Temp.
40 °C
No. of Speeds
1
Motor Application
Air Compressor
Nominal Efficiency
58 %
Motor Bearings
Ball
RPM Range
3,001-3,600
Motor Enclosure Design
Open Dripproof
Shaft Dia.
5/8 in
Motor Frame Material
Steel
Standards
CSA Certified, UL Recognized
Motor Mounting Position
Horizontal
Voltage Compatibility
115V AC, 115/208-230V AC, 115/230V AC, 120V AC, 120/240V AC, 208V AC, 208-230V AC, 208-240V AC, 230V AC, 240V AC
Product Description
Commercial-duty air compressor AC motors generate high-torque to power air compressors for use on jobsites, auto body shops, and in manufacturing applications. They have an open dripproof (ODP) enclosure to help protect motor from moisture.
Item Barcode
Motor,1 Hp,56,115/208-230V,Odp,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 39L529 | |
 | UNSPSC CODES | 26101108 | |
 | VMRS (ATA) CODES | 053-006-009 | Motor,1 HP, 56,115/208- |
