ASHCROFT

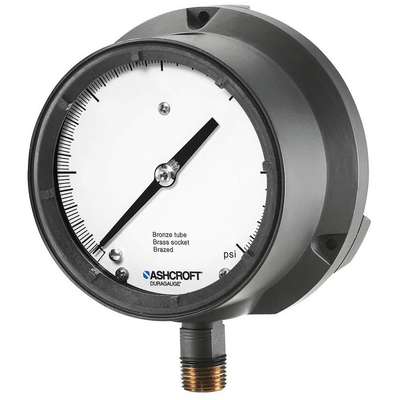

Pressure Gauge, 30" Hg Vac to 150 psi Range, 1/2" MNPT, +/-0.50% Gauge Accuracy

Hover over image to magnify
Pressure Gauge,30 Hg To 150
Pressure Gauge,30 Hg To 150

#937017-1 | Pkg Qty: 1

$216.55 pkg | $216.55 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bezel Material
Polypropylene
Gauge Sensor Material
Bronze
Brand
ASHCROFT
Gauge Socket Material
Brass
Calibration Certificate Included
No
Hazardous Location Rating
Not Rated
Gauge Accuracy
±0.50%
Item
Process Pressure Gauge
Gauge Application
Chemical Industries, Mining, Oil and Gas Industry, Power Industries, Refrigeration, Turbines and Compressors, Water Pressure Testing, Water Purification or Irrigation
Liquid Filled
Yes
Gauge Case Color
Black
Mfr. Part Number
451379ASL04LVAC/150#
Gauge Case Material
Aluminum
Mfr. Warranty Length
10 yr.
Gauge Connection Location
Bottom
Mounting Type
Flush-Mount, Stem-Mount, Surface-Mount
Gauge Connection Size
1/2 in.
Non-Sparking
No
Gauge Connection Type
MNPT
Operating Temperature Range
20 deg. F to 150 deg. F
Gauge Filled With
Glycerin
Package Quantity
1
Gauge Lens Material
Glass
Pressure Range
30 to 0 to 150
Gauge Nominal Dial Size
4-1/2 in.
Series
1379
Gauge Panel Mountable
No
Shipping Weight
3.95 lb.
Gauge Primary Range Units
in Hg/psi
Vibration Resistance
Liquid-Filled
General
Accuracy Grade
ASME B40.100 Grade 2A
Panel Mount Characteristics
3 0.218 Dia Holes on 5 3/8 Dia Bolt Circle
Accuracy Scale
Full Scale
Pointer Characteristics
Micrometer Adjustable
Blowout Safety Back
Yes
Pointer Material
Aluminum
Case Construction
Solid Front with Pressure Relief Back
Pressure Gauge Type
Process Pressure Gauge
Case Depth
3.375 in
Pressure Range Type
Compound
Case Diameter
5.812 in
Pressure and Vacuum Gauge Type
Pressure Gauge
Case Finish
Epoxy Coated
Primary Pressure Range
30 to 0 to 150
Compatible Process Media
Chemical and Petrochemical, Metals, Natural Gas and LNG, Oil and Gas, Water and Wastewater
Primary Scale Minor Graduations
2, 5
Dial Face Material
Aluminum
Primary Scale Numeric Increments
10, 20
Field Fillable
Yes
Primary Scale Units
in Hg/psi
Gauge Accuracy Grade
Grade 2A - Process
Process Connection
1/2 in NPT Male
Gauge Case Liquid
Glycerin
Process Connection Gender
Male
Gauge Wetted Parts
Brass / Bronze
Process Connection Location
Bottom
IP/NEMA Rating
IP66, NEMA 4X
Process Connection Size
1/2 in
Lens Material - Gauge
Glass
Process Connection Type
NPT
Liquid-Filled Case
Yes
Scale Type
Single
Manufacturer Warranty Length
10 yr
Sensor Material
Bronze
Movement Material
400 Stainless Steel
Sensor Type
Bourdon Tube
Movement Type
Rotary
Standards
ASME, CRN
Nominal Dial Size
4 1/2 in

Product Description

Process Pressure Gauge, Nominal Dial Size 4 1/2, Accuracy +/-0.5 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/2, Field Fillable Yes, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP66, NEMA 4X, Primary Pressure Range 30 to 0 to 150, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Process Pressure Gauge
