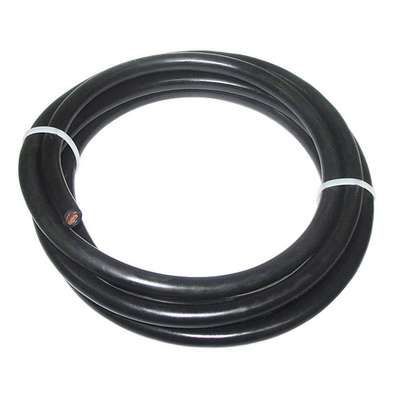

Westward Welding Cable, 3/0, Neoprene Insulation Material, Black, 10 ft.

Hover over image to magnify
Welding Cable,3/0,Neoprene,Blk,
PI_Asset_1765474
Welding Cable,3/0,Neoprene,Blk,
PI_Asset_1765474

#937007-3 | Pkg Qty: 1

$84.75 pkg | $84.75 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
WESTWARD
Length
10 ft.
Color Family
Black
Maximum Amps
239
Conductor Material
Copper
Mfr. Part Number
19YE12
Conductor Size
3/0 AWG
Package Quantity
1
Gauge
3/0
Shipping Weight
5.71 lb.
Item
Welding Cable
Wire Gauge
3/0 AWG
General
Insulating Material
Neoprene Rubber
Max. Voltage
600
Insulation Material - Wire and Cable
Neoprene
Sub-Category
Welding Cable
Length - Wire and Cable
10 ft.
Wire Size - Wire and Cable
3/0
Max. Temp.
150°F

Product Description

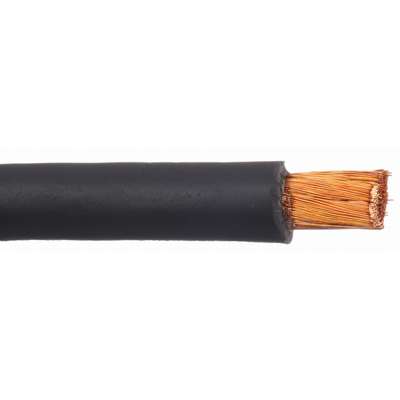

Welding cable is a flexible, durable electrical cable that supplies power to the secondary circuit of electric welders, which controls the electrode that releases the charge needed for the welding process. Also called an electrode cable, it is commonly used in manufacturing environments to power resistance welding and arc welding equipment, or to replace or repair damaged cable. It has a single, finely stranded conductor wrapped in a nonconductive rubber jacket that is resistant to heat, burns, sparks, and abrasions. The fine copper strands give welding cable more flexibility than other types of electrical wire, and the insulating jacket is designed to hold up to repeated movement over rough surfaces.
