AIR HANDLER

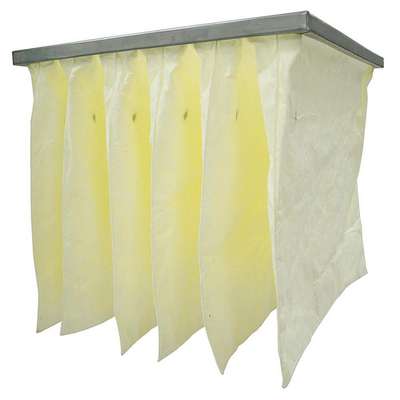

Air Handler Pocket Air Filter, 24x24x10, MERV 11, White, Synthetic, Number of Pockets: 6

Hover over image to magnify
Pocket Air Filter,24x24x10,
Pocket Air Filter,24x24x10,

#936942-8 | Pkg Qty: 4

$290.08 pkg | $72.52 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
AIR HANDLER
Package Quantity
4
Mfr. Part Number
2GHZ9
Shipping Weight
12 lb.
General
Actual Filter Size
23-3/8 in x 23-3/8 in x 10 in
Max. Temp.
150 Degrees F
Air Filter Header Type
Single Header
Max. Velocity
500 fpm
Filter Efficiency - Air Filters
60% to 65%
Media Material
Synthetic
Frame or Header Material
Galvanized Steel
Nominal Filter Size
24x24x10
Initial Resistance @ 300 fpm
0.33 in wc
Performance Rating
MERV 11
Initial Resistance @ 500 fpm
0.55 in wc
Style - Air Filters
Bag

Product Description

MERV 11 pocket air filters provide between 80% and 85% efficiency for filtering particles between 3 and 10 microns in size (such as mold spores, dusting aids, and cement dust). They also provide between 50% and 65% efficiency for filtering particles between 1 and 3 microns in size (such as legionella, lead dust, humidifier dust, coal dust, and nebulizer droplets) and less than 20% efficiency for filtering particles between 0.30 and 1 micron in size (such as bacteria, most smoke, sneeze nuclei, insecticide dust, copier toner, and face powder). They capture contaminants more efficiently than MERV 8 pocket air filters.

Pocket air filters are often installed in HVAC systems in auto shops, data centers, food and beverage plants, industrial sites, and schools to trap contaminants in the air stream and boost indoor air quality. They also keep the contaminants from building up in the equipment and damaging it. These filters are best suited for applications where air is constantly flowing through the filter since they may deposit some captured material back into the air stream when they deflate. Also called bag filters, pocket filters have a bag-like filter element that is stitched into pockets. They trap more particles than non-pleated panel filters and need to be changed less often. These filters have a MERV (minimum efficiency reporting value) rating of 8 to 14. A filter's MERV rating measures how efficiently a filter traps contaminants in the air stream based on the size of the particles it can effectively capture. The higher a filter's MERV rating is, the more effectively it traps small particles.
